4K HDMI 2.0 4 Port Extender Over Cat 6 with 4 Receivers
Extend 4K60 HDMI Signal to 4 Displays
SKU: AA6198
$529.00
RRP $999.00
Sold Out
HDMI 2.0 4 Port Extender Over Cat 6 with 4 Receivers
Extends an 18GBPS 4K @ 60Hs HDMI 2.0 Signal to 4 Displays
Extends a 4K60 HDR10+ High Definition HDMI 2.0 signal over Cat 6/7 to 4 HDMI receivers up to 60m in distance without signal loss. A cost effective solution for multi-display applications for your home, office, pubs and hotels.
Great solution for sending a set top box HDMI signal such as a Foxtel iQ4 to other TV's in the house or man cave.
The product supports 1 HDMI input, 1 HDMI loop output and 4 CAT outputs. It can extend the signal transmission distance up to 35 meters at the
resolution of 4K2K@60Hz, 50 meters at 4K2K@30Hz, 60 meters at 1080P@ 60Hz via a single CAT6/6a/7 cable. The product supports up to 7.1CH HD audio pass-through. It supports audio extract function and advanced EDID management.
Features
HDMI 2.0, HDCP 2.2 / 1.x and DVI 1.0 compliant
Support 18Gbps video bandwidth
Support video resolution up to 4K2K@50/60Hz 4:4:4
Support 3D, HDR, HDR10+, HLG and Dolby vision
Support up to 7.1CH HD audio pass-through
Support digital and analog audio de-embedded output
Extend the signal transmission distance up to 35 meters at the resolution of
4K2K@60Hz, 50 meters at 4K2K@30Hz, 60 meters at 1080P@60Hz via a
single CAT6/6a/7 cable

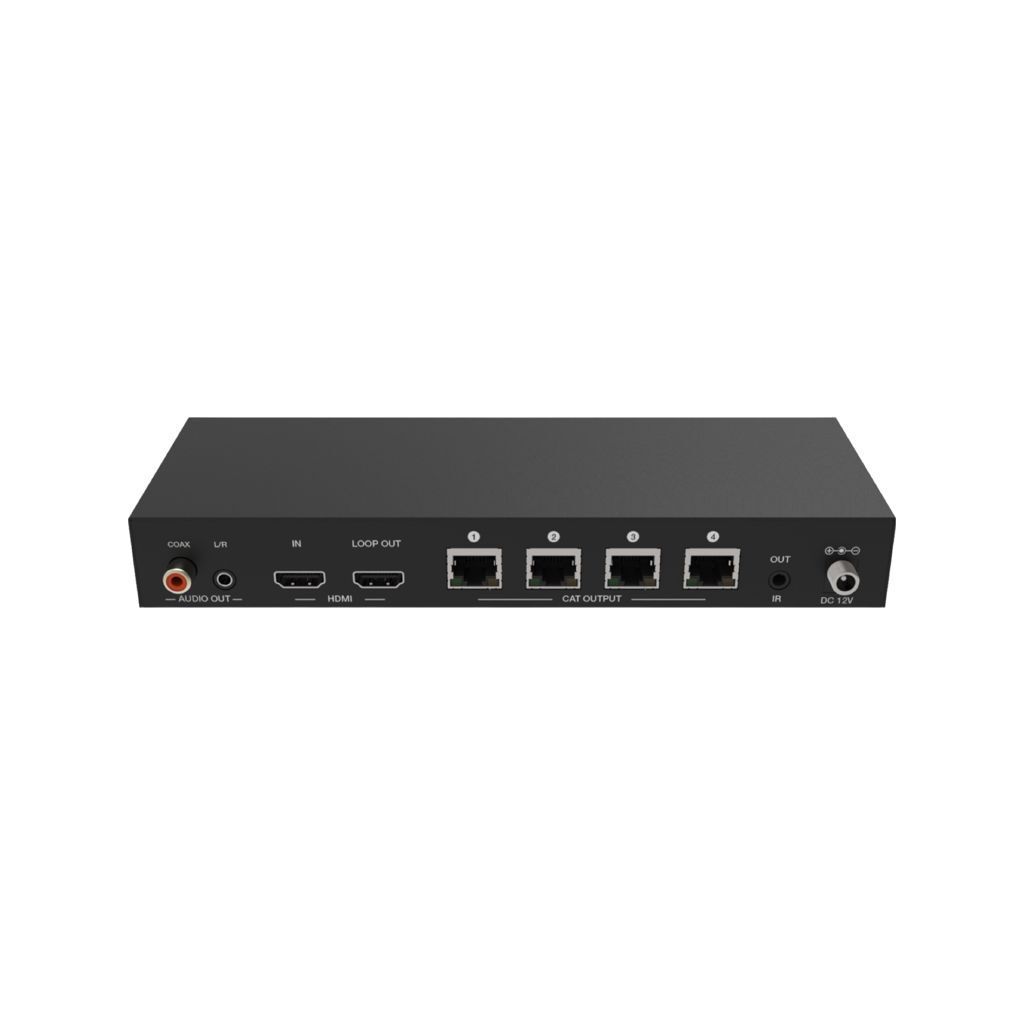

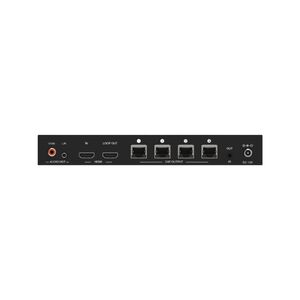

Support 1 HDMI input, 1 HDMI loop output and 4 CAT outputs.
Support one-way IR control signal pass-through
Advanced EDID management
Support one-way PoC function (only from transmitter to receiver)
Compact design for easy and flexible installation

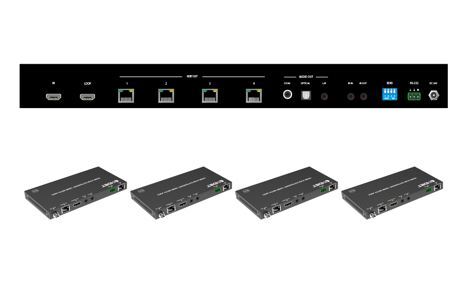

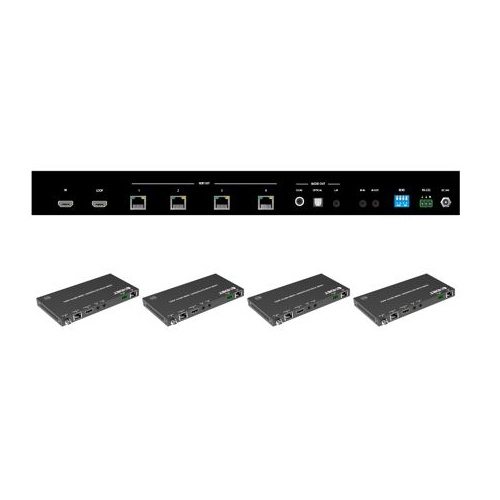

Package Contents:

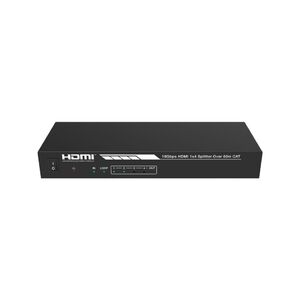

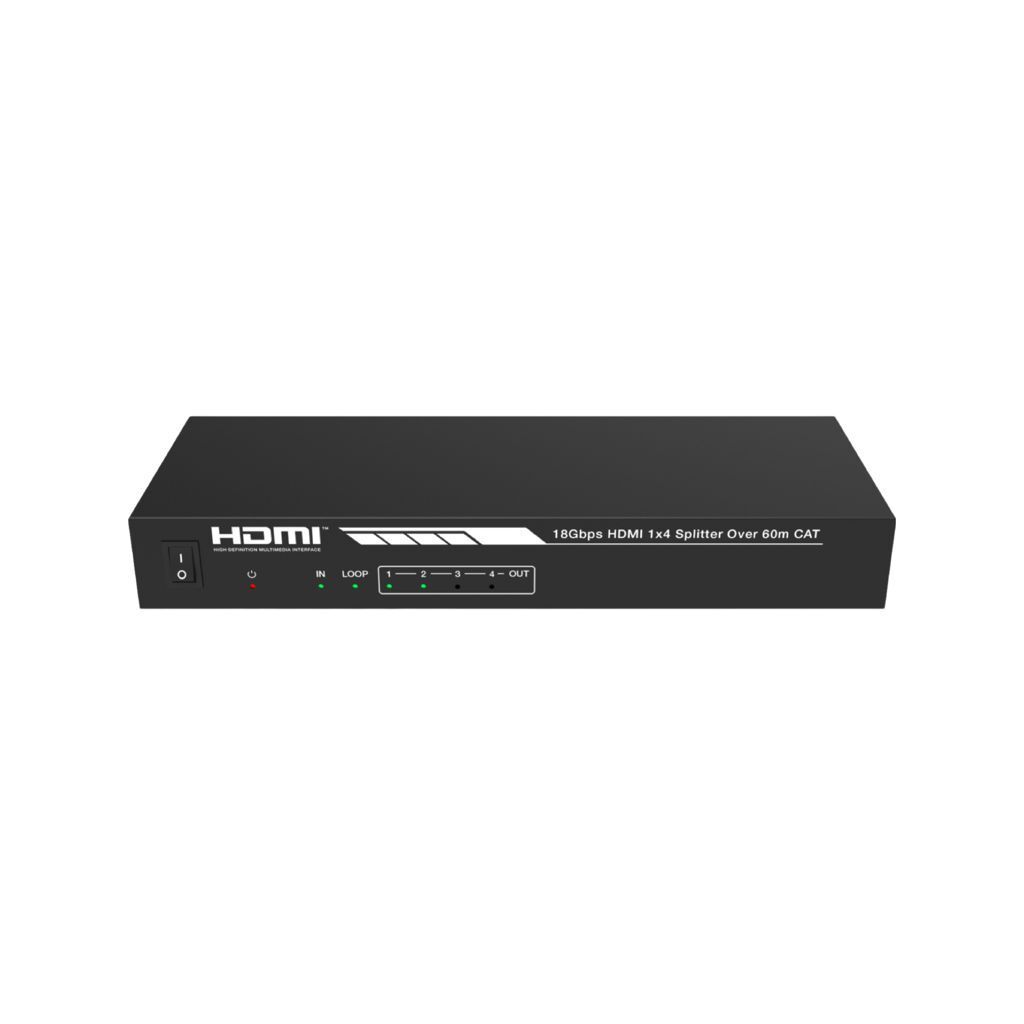

①1× 18Gbps 1×4 HDMI Splitter over 60m CAT

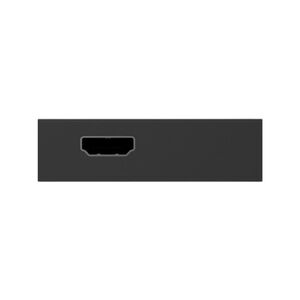

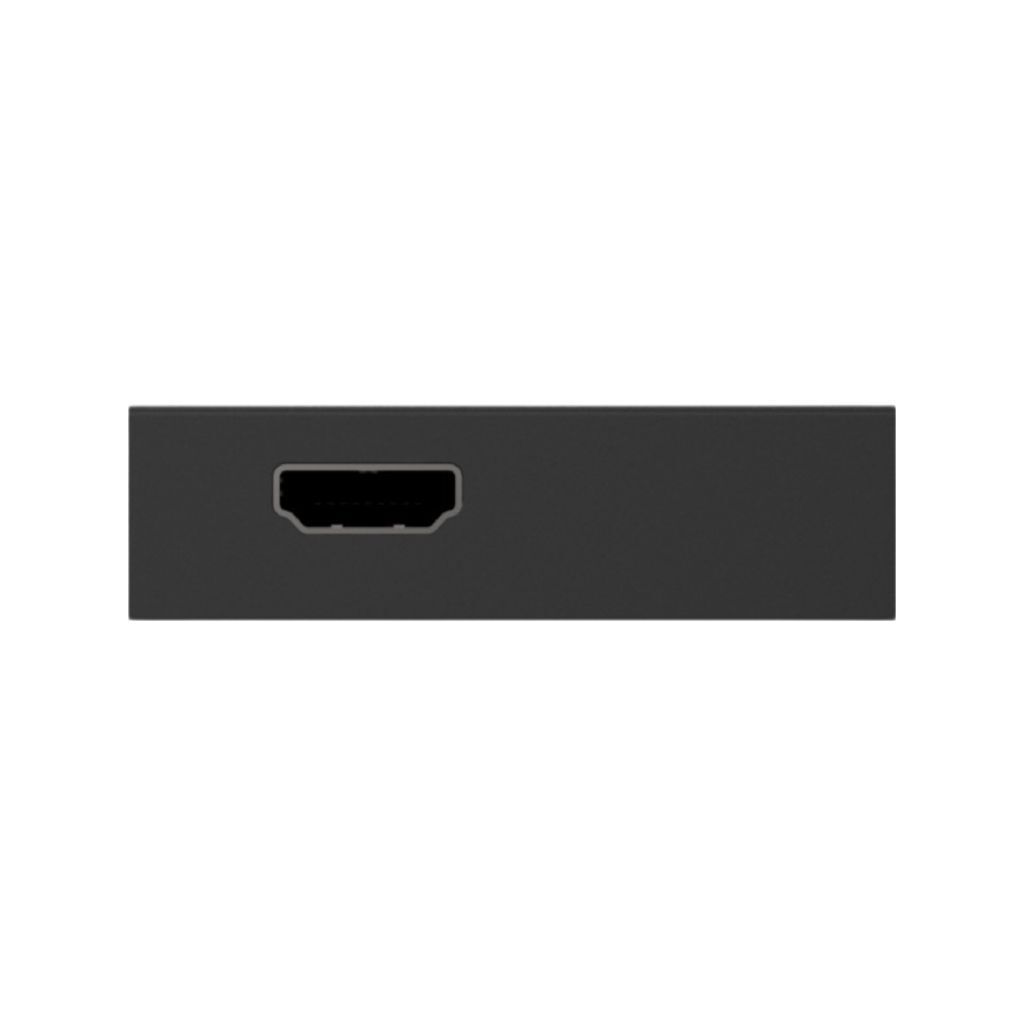

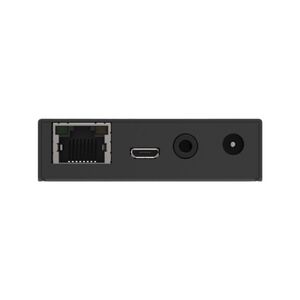

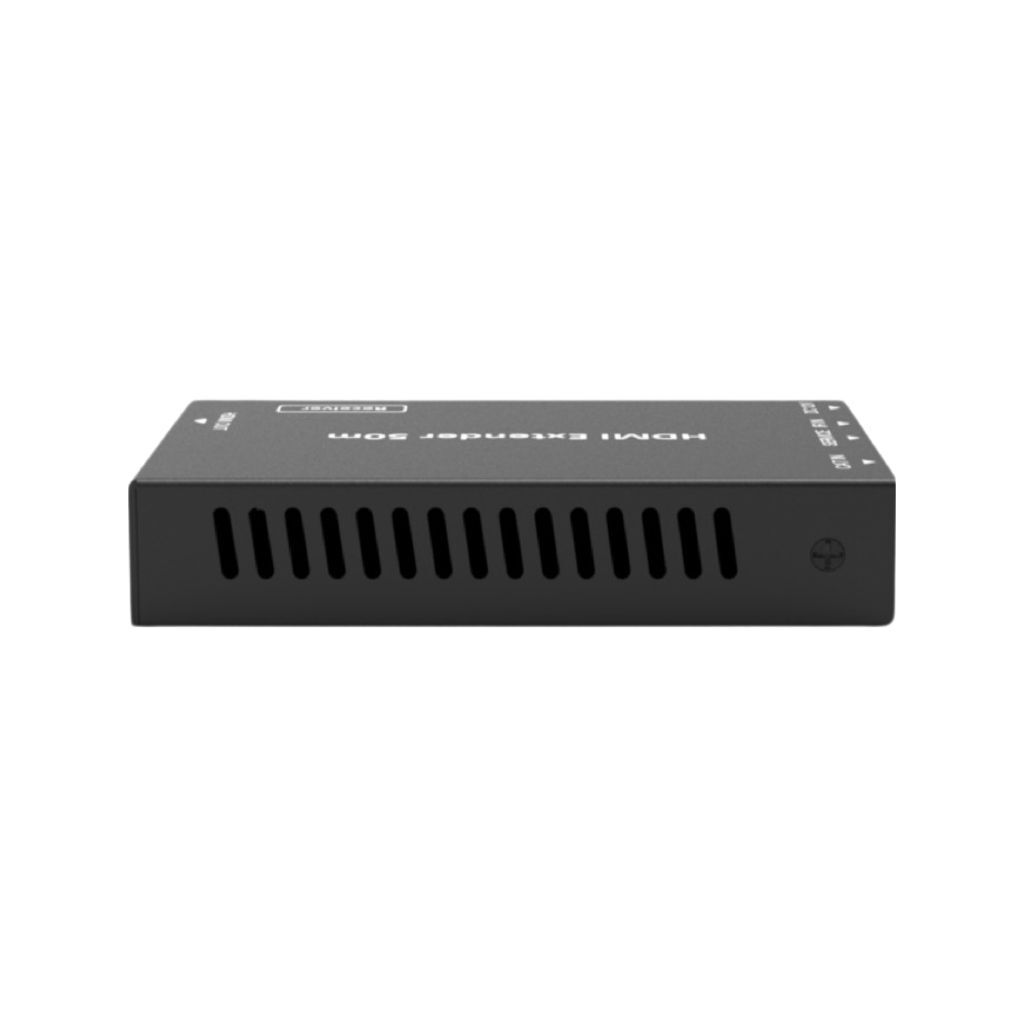

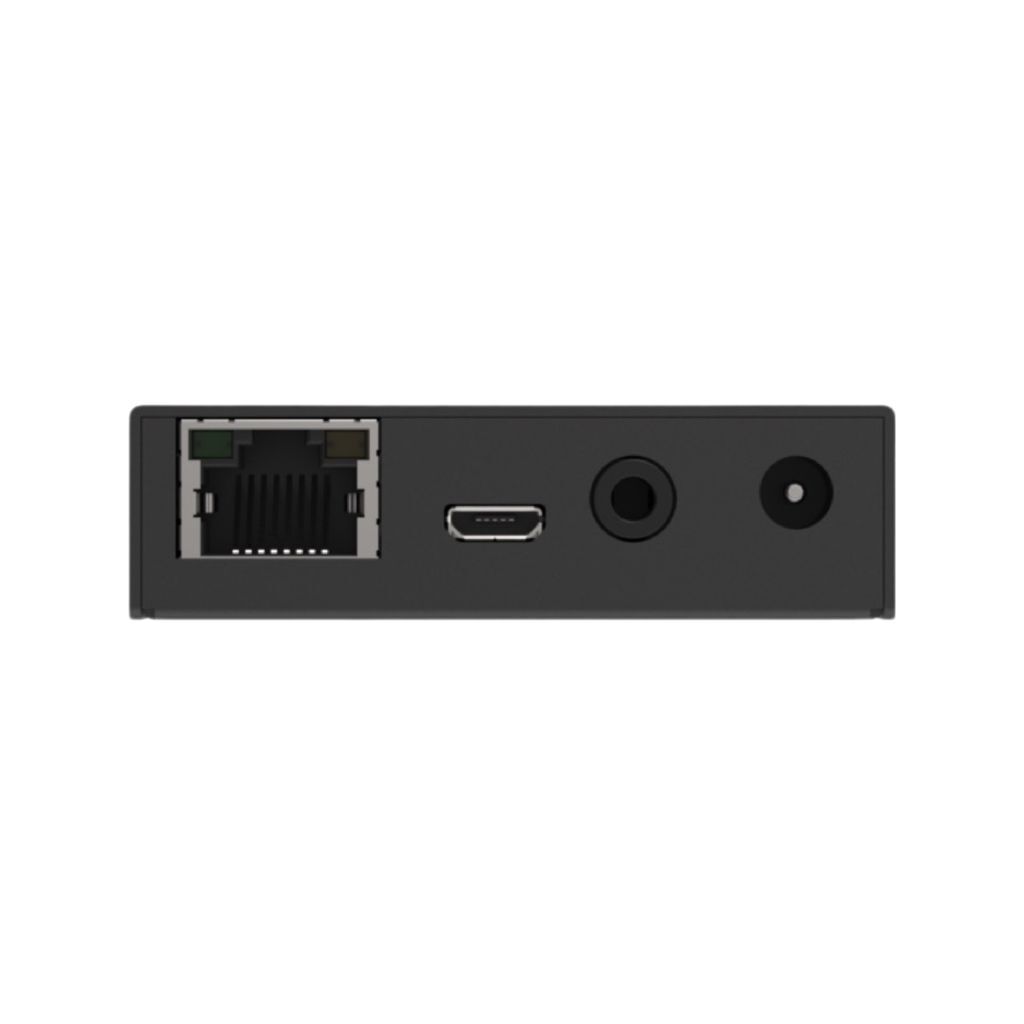

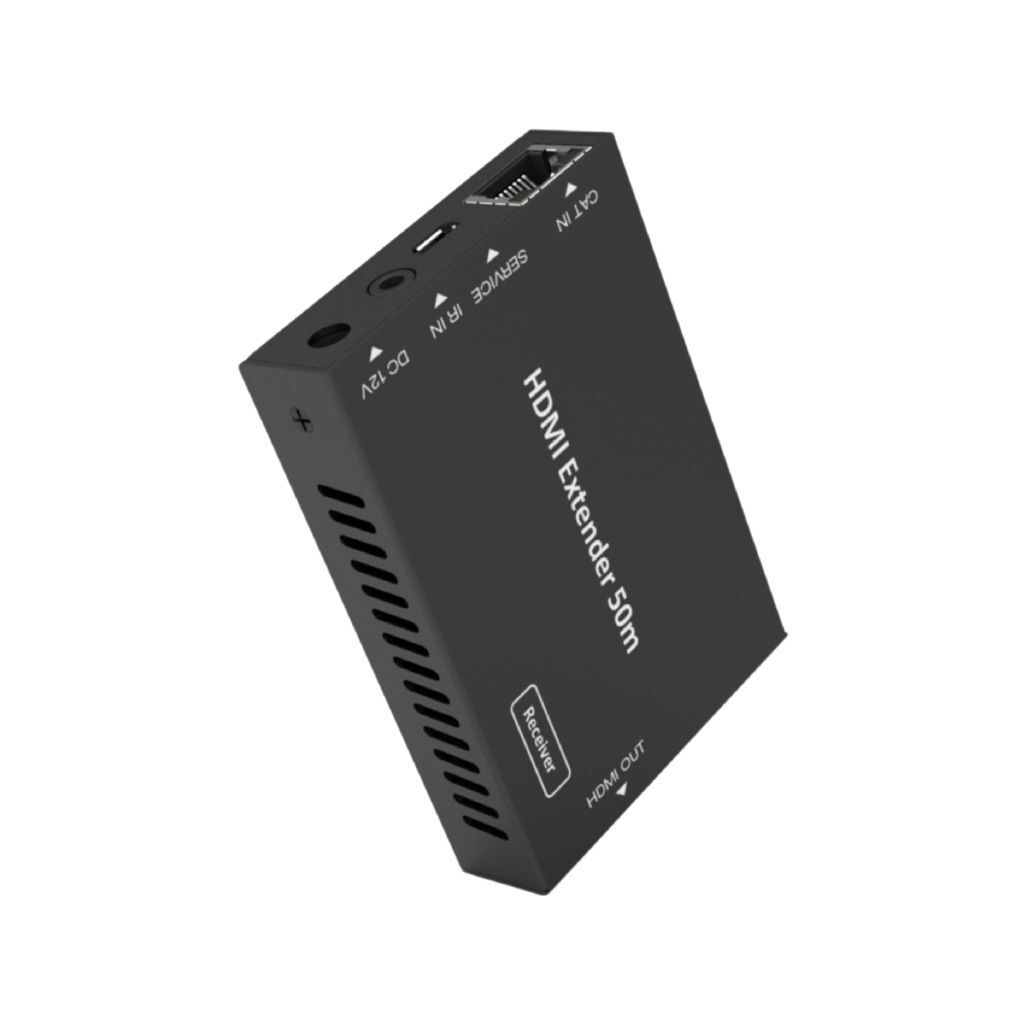

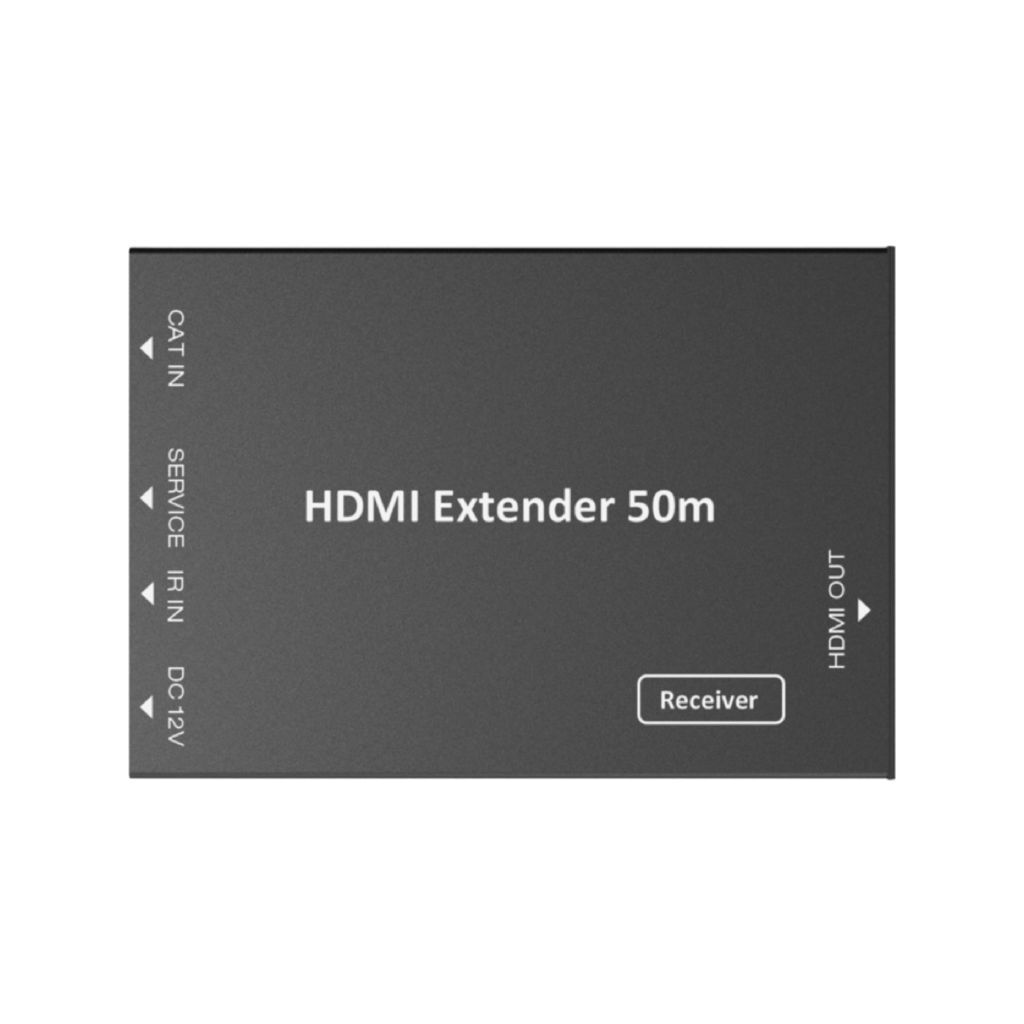

② 4× CAT Receiver
③ 1× IR Blaster Cable (1.5 meters)
④ 4× 20K~60KHz IR Receiver Cable (1.5 meters)
⑤ 1× 12V/2.5A DC Locking Power Adapter
⑥ 1× User Manual
Specifications:
HDMI Compliance HDMI 2.0
HDCP Compliance HDCP 2.2/1.x
Video Bandwidth 594MHz/18Gbps
Video Resolution Up to 4k2k@50/60Hz 4:4:4
Color Depth
8-bit,10-bit,12-bit(1080p@60Hz)
8-bit (4K2K@60Hz YUV4:4:4)
8-bit,10-bit,12-bit(4K2K@60Hz YCbCr 4:2:2/4:2:0)
Color Space RGB, YCbCr 4:4:4 / 4:2:2. YUV 4:2:0
HDR Support HDR10, HDR10+, HLG, Dolby vision
HDMI Audio Formats
LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS,
DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master
Audio, DSD
Coaxial Audio Formats
LPCM2.0, LPCM5.1, Dolby Digital2/5.1CH
Analog Audio Formats PCM 2.0

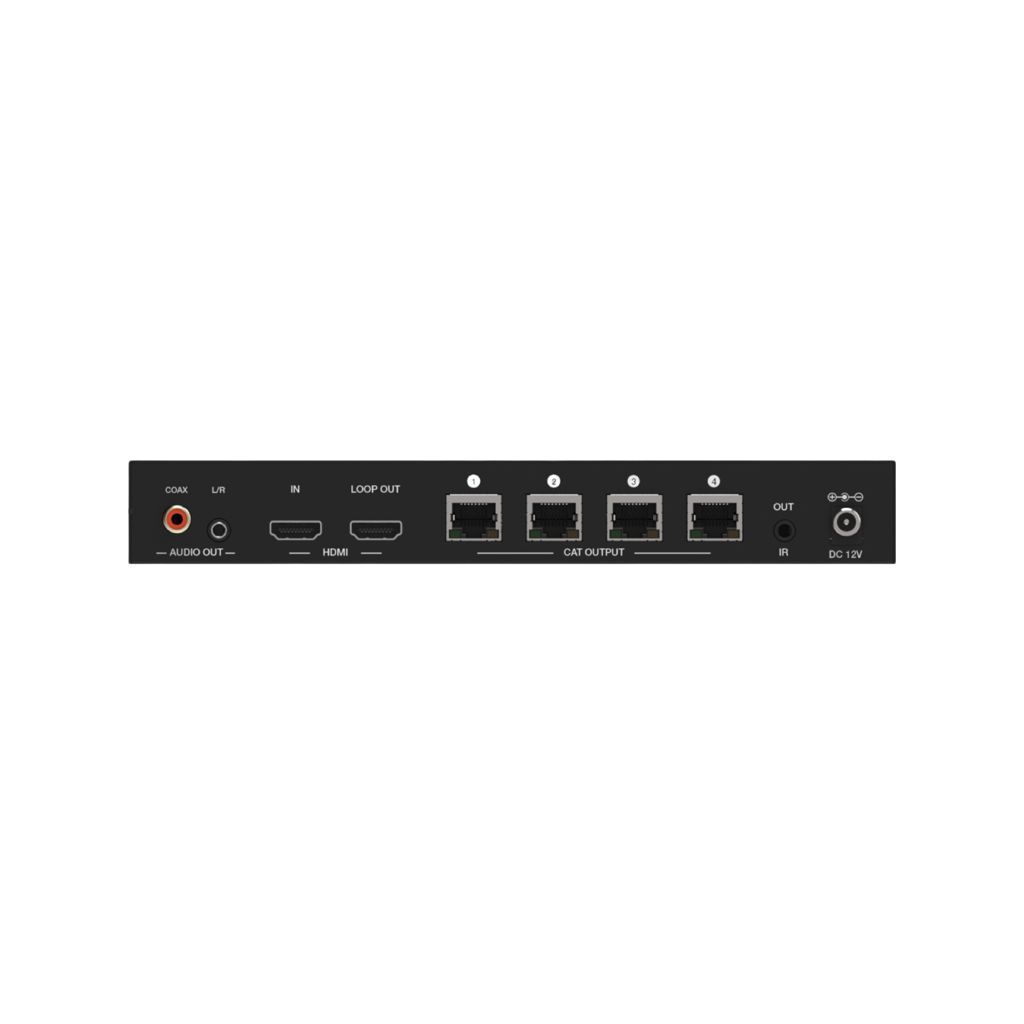

Input
1×HDMI Type A (19-pin female)
Output
1×HDMI Type A (19-pin female）
4x CAT OUT [RJ45, 8-pin female]
1x Coaxial Audio OUT [RCA]
1x L/R Audio OUT [3.5mm Stereo Mini-jack]
Video Resolution
HDMI Audio Formats
LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS,
DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master
Audio, DSD
Connection
HDMI Compliance HDMI 2.0
HDCP Compliance HDCP 2.2/1.x
Support HDR10, HDR10+, HLG, Dolby vision
Color Space RGB, YCbCr 4:4:4 / 4:2:2. YUV 4:2:0
HDR
Color Depth
8-bit,10-bit,12-bit(1080p@60Hz)
8-bit (4K2K@60Hz YUV4:4:4)
8-bit,10-bit,12-bit(4K2K@60Hz YCbCr 4:2:2/4:2:0)
Control
1×SERVICE (Micro USB, Update port）
1x EDID DIAL switch [5-pin]
1x IR OUT [3.5mm Stereo Mini-jack]
12 Month Warranty
| SKU | AA6198 |
| Barcode # | 9351634016143 |
| Brand | Playvision |
| Shipping Weight | 1.9000kg |
| Shipping Width | 0.330m |
| Shipping Height | 0.110m |
| Shipping Length | 0.400m |
| Shipping Cubic | 0.009900000m3 |
| Unit Of Measure | ea |
| Assembled Length | 0.250m |
| Assembled Height | 0.010m |
| Assembled Width | 0.200m |
Extender Setup
By: mkCharlie on 21 November 2022Product is all set up and so far all working okay - Easy to set up and use.
(5)
Works a treat
By: Josh on 19 December 2020Bought this to share my Foxtel IQ3 around the house. Currently use HDMI splitters and over the years has been good, but also problematic. Moving house so wanted a better system. Have tested this with different TVs, 30m cat6 cables, going through wall plates etc...works a treat! The infrared blaster is perfect as well, the remote has no issues working in the different rooms. Quality of picture was no different to the HDMI splitters. Very impressed.
(5)
