Supports up to 7.1CH HD audio pass-through. Audio extract function and advanced EDID management are supported.

2. Features

1)HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant
2)Support 18Gbps video bandwidth
3)Support video resolution up to 4K2K@60Hz 4:4:4 Support HDR, HDR10+, HLG and Dolby vision

4)Support up to 7.1CH HD audio pass-through
5)Support digital and analog audio de-embedded output
6)Extend the signal transmission distance up to 120 meters at the resolution of 4K2K@60Hz, 150 meters at 1080P@60Hz via a single CAT6/6a/7 cable

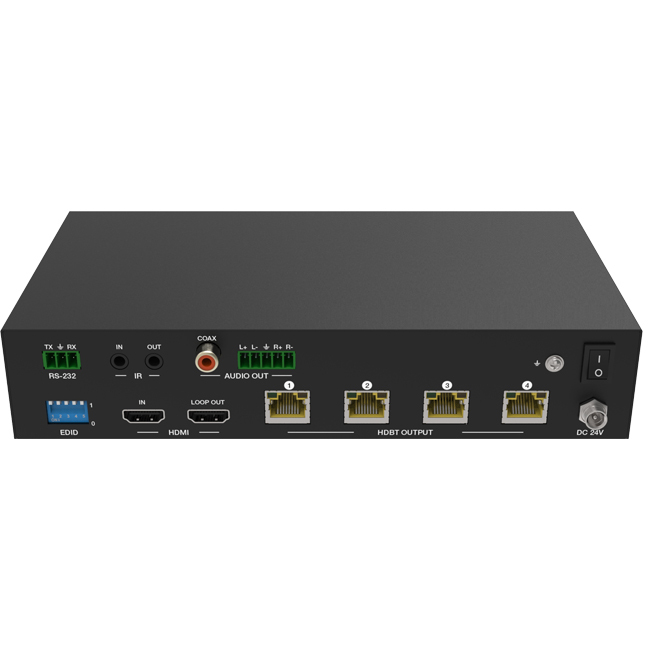

7) Support 1 HDMI input, 1 HDMI loop output and 4 HDBT outputs.
8) IR, RS-232 routed to HDBT output
9)Advanced EDID management
10) Support one-way POC function (only from transmitter to receiver)
11) Compact design for easy and flexible installation

3. Package Contents

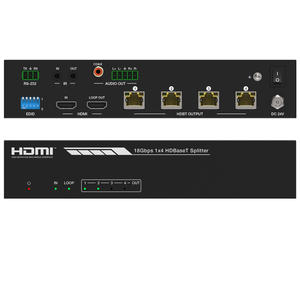

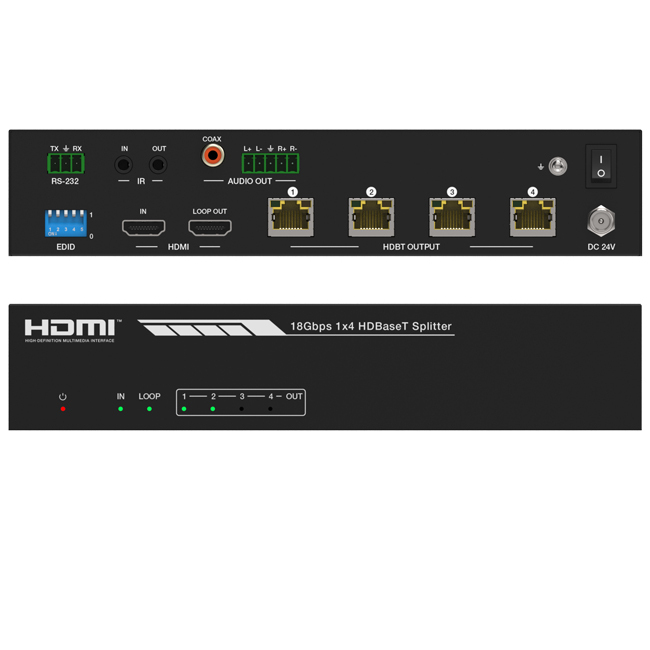

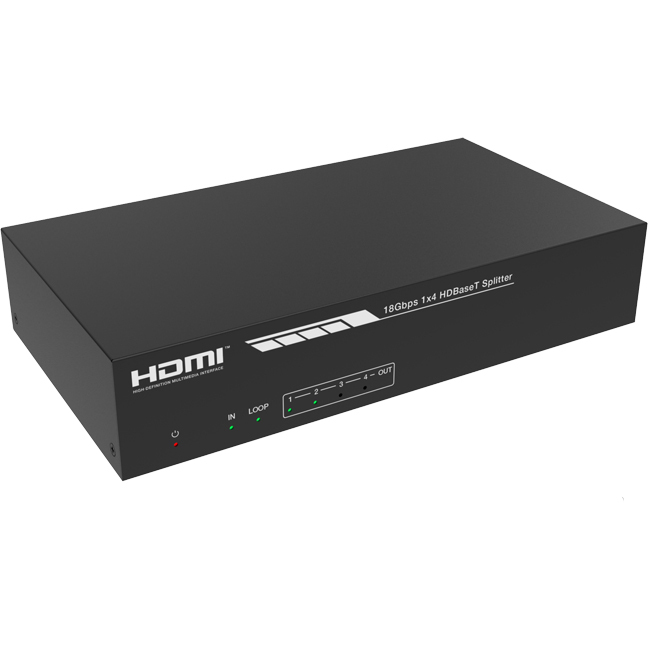

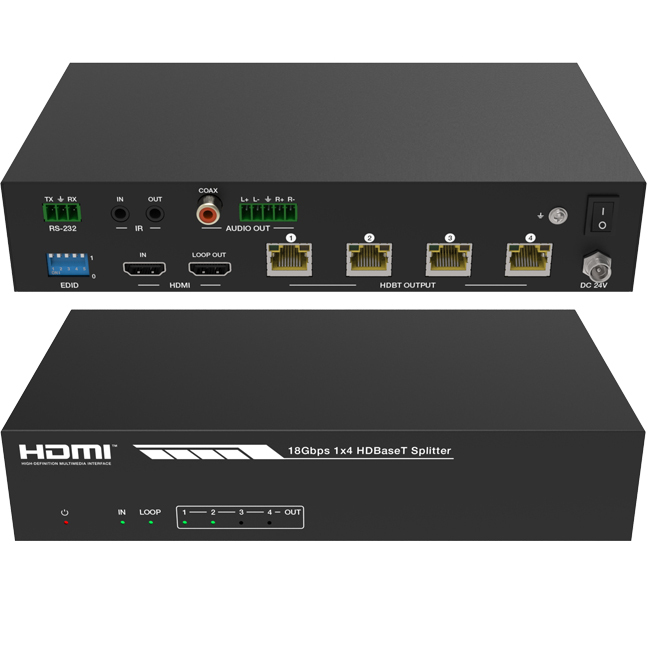

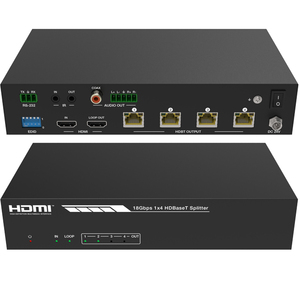

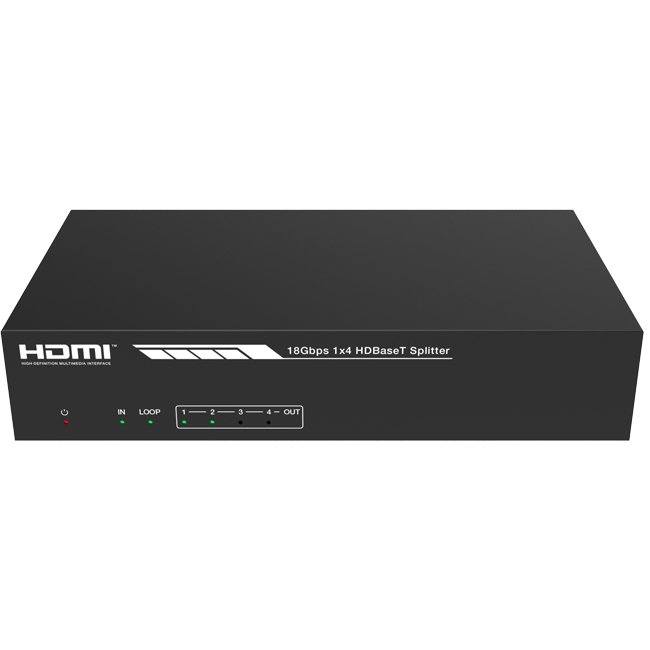

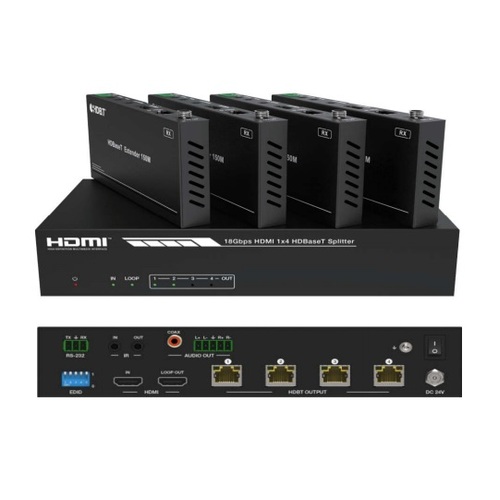

 1 × 18Gbps HDMI 1×4 HDBaseT Splitter

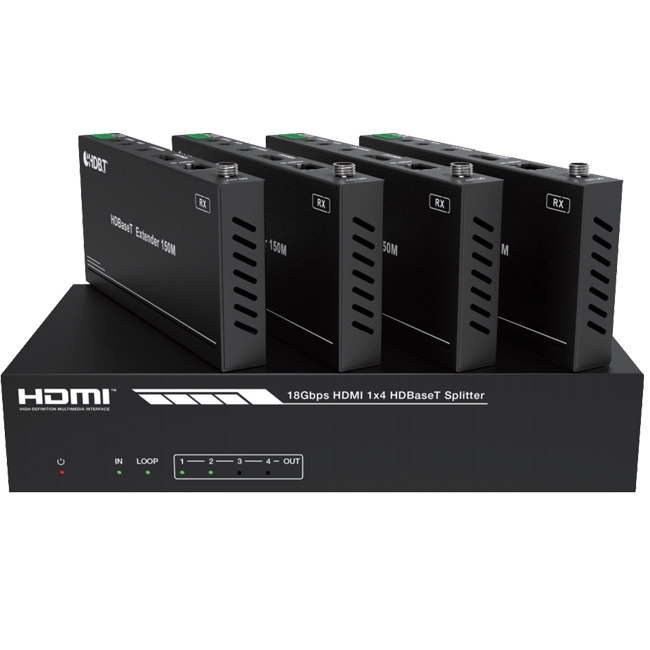

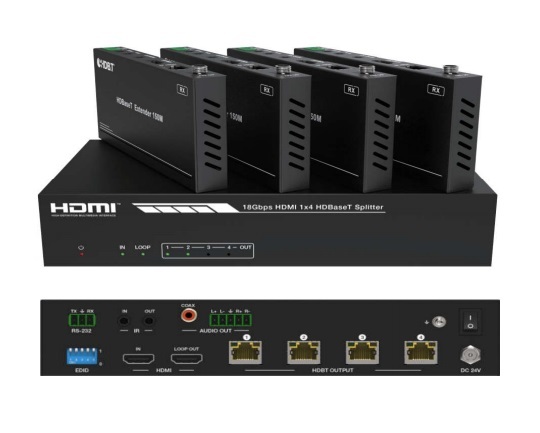

 4 × HDBaseT Receiver
 5 × IR Blaster Cable (1.5 meters)
 5 × 20K~60KHz IR Receiver Cable (1.5 meters)
 5 × 3-pin Phoenix Connector
 1 × 5-pin Phoenix Connector
 10 × Mounting Ear
 1 × 24V/2.7A DC Locking Power Adapter
 1 × User Manual
