4K HDMI 2.0 4 x 2  Multiview Switcher

4 Input to 2 Output Seamless Multi-viewer Switch

Special Order Item - Delivery is 2-3 Weeks

This 4x2 Multiviewer Seamless UHD Video Matrix Switcher was developed for the purpose of supporting higher output resolution (4K@60) for multiple sources on two screens. It can accept 4 HDMI input digital sources and combine four video signals onto two HDMI UHD or HD monitors independently. The user can manage each input, and create combinations of the four inputs on two displays, as well as adjust the position of any input.This product supports 8 display modes, within the mode range, users can freely switch 4-channel HD input signals. It can realize single screen display and multiview display on a single screen.This product supports full range of input video resolutions up to 4K@60 (RB) and audio RCA /Optical de-embedding supported for external audio distribution systems.This Matrix Switcher can be controlled via front panel buttons, IR remote, OSD menu navigation, Controller software, RS-232 commands.



☆ HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant

☆ 18Gbps uncompressed Bandwidth, input and output resolution up to 4K2K@60 4:4:4

☆ HDMI audio formats support LPCM, DD+, DTS, Dolby TrueHD, DTS HD-master pass-through

☆ Seamless switching between input channels

☆ Combined multiple images independent layouts to display on two UHD TVs

☆ Up to 8 display modes: Single, PIP, PBP(1), PBP(2), Triple(1), Triple(2), Quad(1), Quad(2)

☆ Audio de-embedding via analog and optical fiber audio ports

☆Control via front panel buttons, IR remote, OSD menu navigation, Controller software, RS-232 commands

☆ Each output port supports Scaler function

☆ Support independent audio selection

☆ Advanced EDID management

☆ Compact design for easy and flexible installation

Specifications:

Technical
HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.2/1.x
Video Bandwidth	18Gbps
Video Resolution	Up to 4K2K@60 4:4:4
IR Level	5Vp-p
IR Frequency	38KHz
Color Space	RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth	8/10/12-bit
Audio Formats	HDMI audio: PCM2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS,                          DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio Analog audio [3.5mm L/R]: PCM2.0 Optical fiber audio: PCM2.0/5.1/7.1CH, Dolby Digital/plus, DTS 5.1
ESD Protection	Human body model—±8kV (Air-gap discharge) &±4kV (Contact discharge)

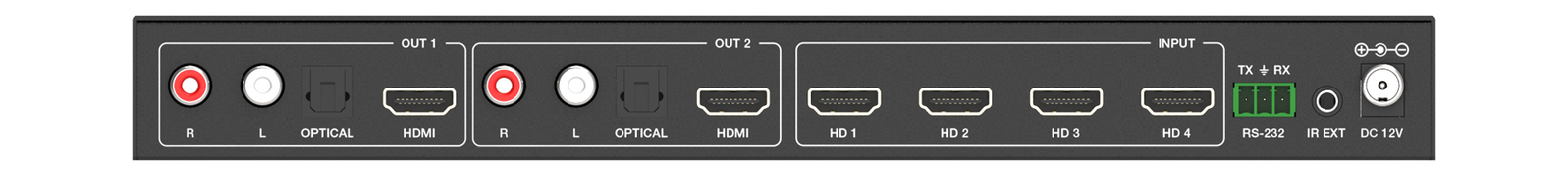

Connections
Input ports	4x HDMI IN [Type A, 19-pin female]
Output ports	2x HDMI OUT [Type A, 19-pin female] 2x L/R OUTPUT [RCA] 2x OPTICAL OUTPUT [S/PDIF]
Control ports	1x RS-232 [3pin-3.81mm phoenix connector] 1x IR EXT [3.5mm Stereo Mini-jack]
Mechanical
Housing	Metal Enclosure
Color	Black
Dimensions	270mm [W] x 130mm [D] x 30mm [H]
Weight	906g
Power Supply	Input: AC 100 - 240V 50/60Hz Output: DC 12V/2.5A (US/EU standard, CE/FCC/UL certified)
Power Consumption	15.72W (Max)
Operation Temperature	32°F - 104°F / 0°C - 40°C
Storage temperature	-4°F - 140°F / -20°C - 60°C
Relative Humidity	20 - 90% RH (no condensation)
