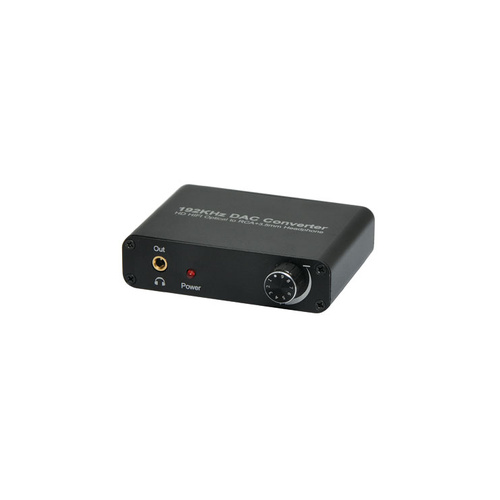

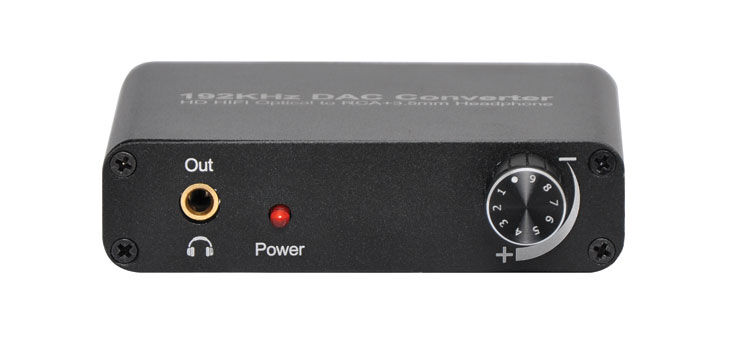

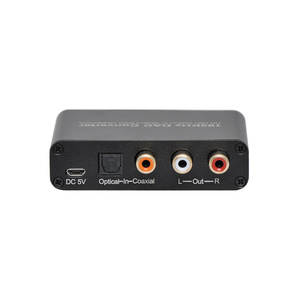

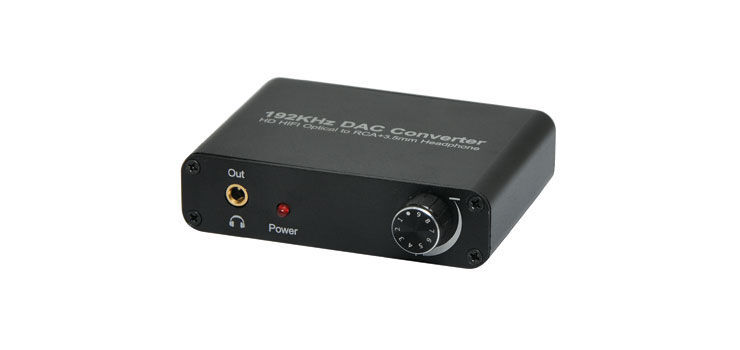

5.1 Digital Coax & Toslink  to Analogue RCA Audio Decoder Converter

5.1 Coax & Toslink to RCA Audio Converter

This Audio decoder can auto convert optical/coaxial channel (Support LPCM/PCM/RAW) input to 2.0 channel analog audio output, and supports decoding Dolby AC-3/DTS (included 5.1 RAW digital audio streaming). Compatible with the following network players; HDTV, Blu-ray DVD, Playstation, XBOX, DVD etc. It can be used to convert the digital output of a television into a standard stereo RCA for connection to amplifiers not fitted with digital audio inputs.

Dimensions: 81.7 x 78 x 21.2 mm

Included in Box
1x Decoder
1x Micro USB Power Cable
1x User Manual

Please Note: A USB power supply is required. We recommend our M8861C USB wall charger (see accessories below)


Features

• Built-in high performance RTOS operating system and
• audio decoder chip; supports DTS/AC-3
• Super fast start time about 3 seconds
• Auto Switch between optical and coaxial channel input
• Auto decode AC-3/DTS (LPCM/PCM/RAW) input signal without any action
• High compatibility
• Small size
• Metal case, Anti-interference
• Headphone port output
• Supports volume adjustment

Specifications

• Input:1 SPDIF Optical, 1 Coaxial
• Output: L-OUT-R; 3.5mm Headphone port
• Supported Audio formats: MP3, AC3, DTS, WAV, WMA, AAC, ALAC, FLAC, APE, OGG, M4A
• Signal Noise ratio: 120dB
• Stereo Isolation: 80dB (1kHz)
• Channel Unbalance: 0dB
• Sampling Rate: 32~192KHz
• Bit Rate: 16~24 Bit
• Response Frequency: 20Hz~20KHz +/-0.7dB
• THD: 20Hz~20KHz 0.25-0.065%
• THD+N: 1kHz 0.15%
• Analog Output Level: 2.2V
• Shell Dimension: 81.7 x 78 x 21.2mm
• Weight: 110g
• Ports: 1x Optical, 1x earphone jack, 1x L/R, 1x Optical
• Working Voltage: 5V DC
• Max power current: 200mA
• Working temperature: 0-70°C
• Working Humidity: 10%-80% RH (non-condensing)
• Storage Temperature: -10-80°C
• Storage Humidity: 5%%-90% RH (non-condensing)

  *Specifications are subject to change without notice.
