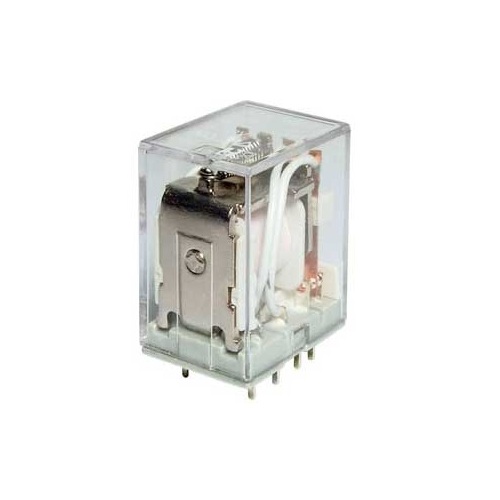

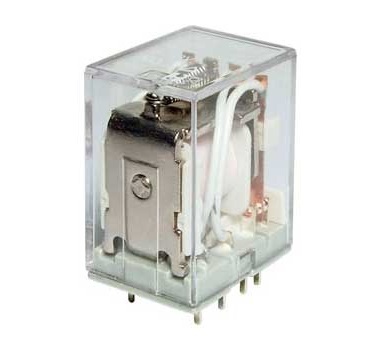

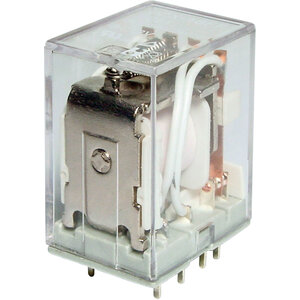

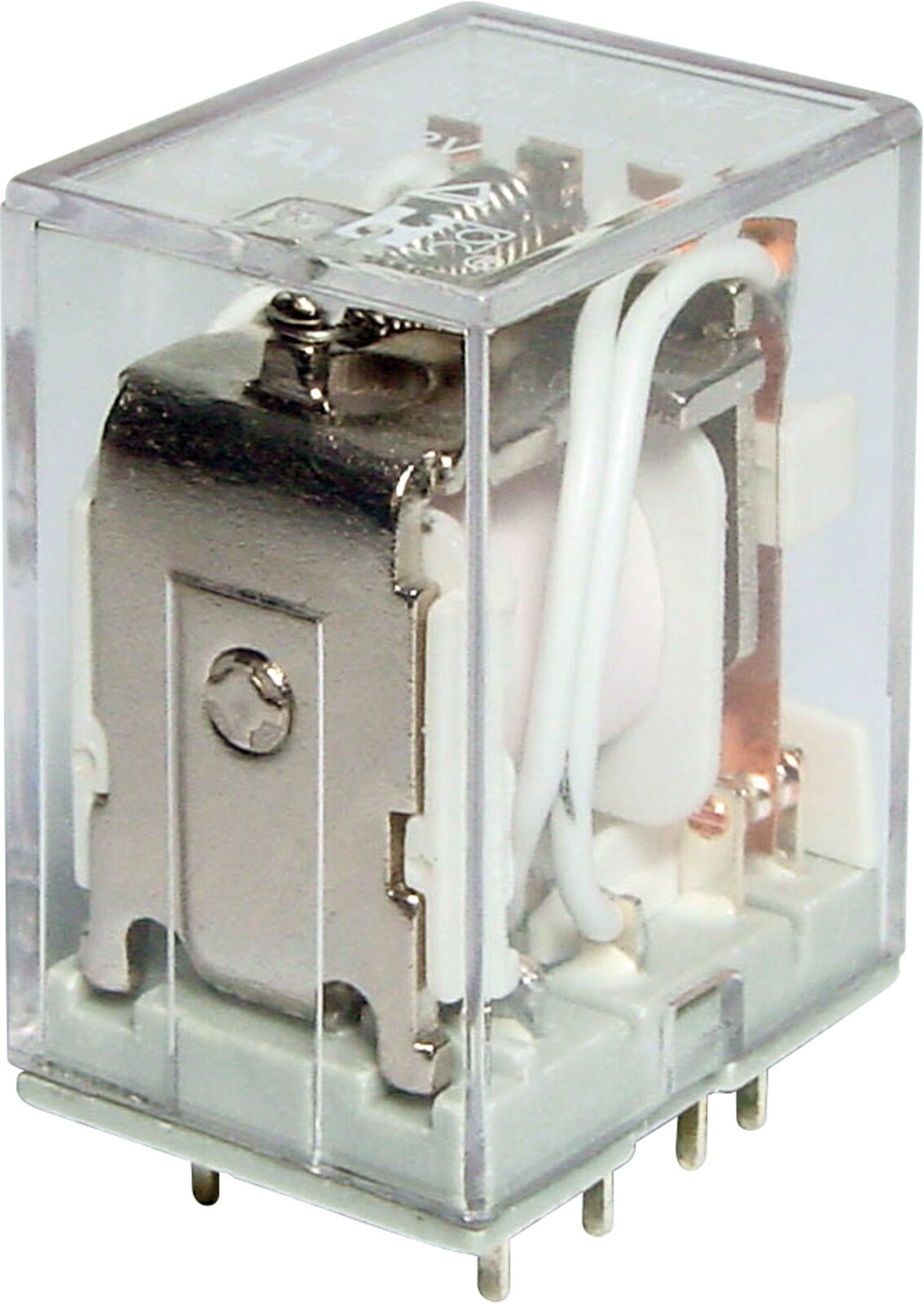

5A 12VDC 4PDT PCB Mount Relay

12V Relay

5A 4PDT relay. PCB mount style. 12V DC coil.

• Max Switching Voltage: 150V DC, 380V AC
• Max Switching Current: 7A
• Max VA (Watts): 2500VA, 1250W
• Contact Material: Silver Cadmium Oxide
• Coil Resistance: 160Ω
• Max Coil Power: 0.9W
• Insulation Resistance: >1000MΩ @ 500V DC
• Dielectric Strength (for 1 min):
• 1000V AC between open contacts
• 1500V AC between coil & contact
• Electrical Life: 200,000 operations
• Mechanical Life: 10 million operations

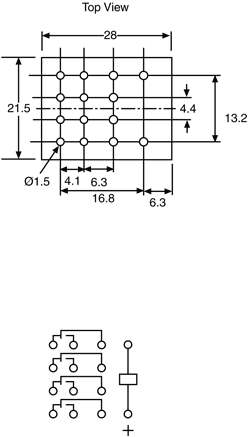

• Dimensions: 21.5W x 28L x 35H mm

  *Specifications are subject to change without notice
