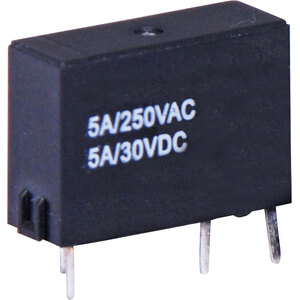

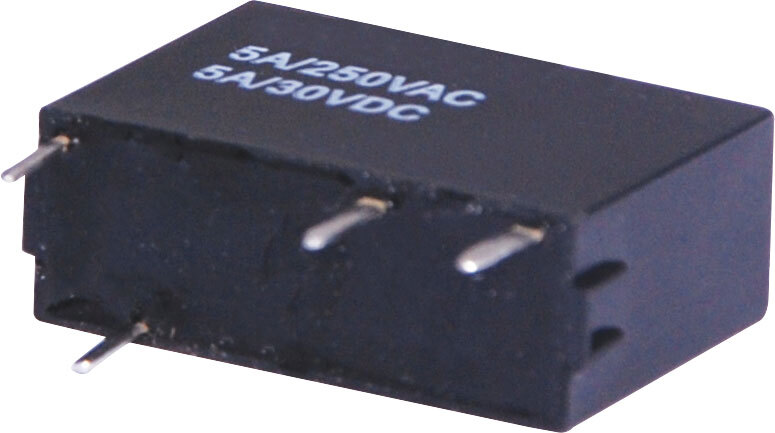

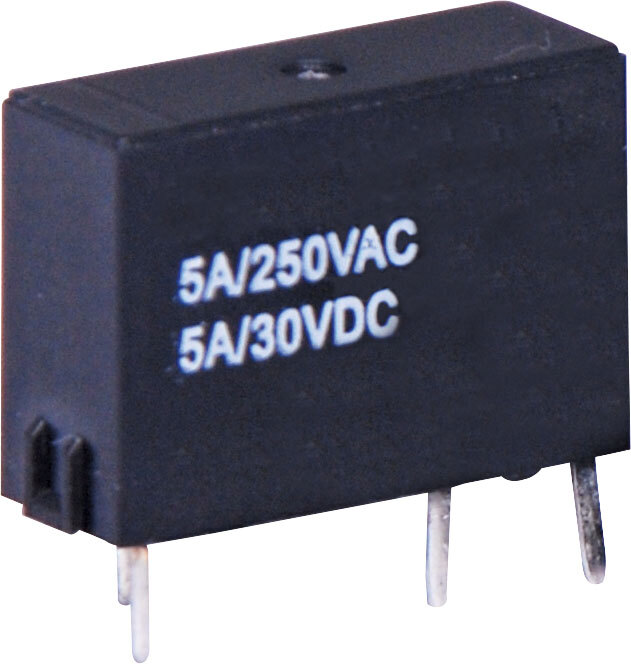

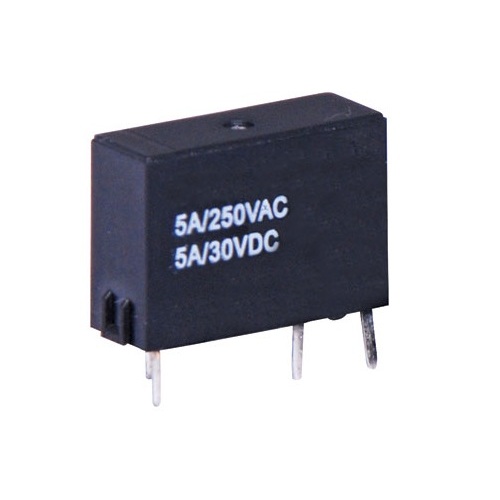

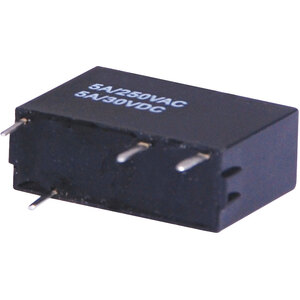

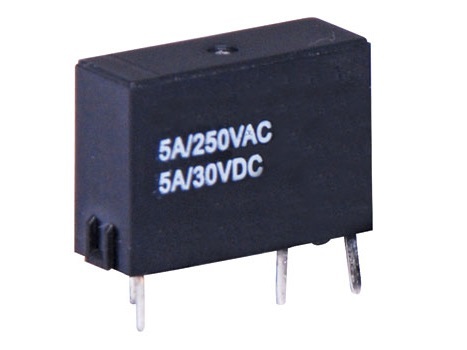

5A 12VDC SPST PCB Mount Mini Relay

12V Relay

5A SPST mini relay. PCB mount style. 12V DC coil.
Fully sealed construction makes it ideal for immersion cleaning and large scale manufacturing.

• Max Switching Voltage AC: 250V
• Max Switching Voltage DC: 30V
• Max Switching Current AC: 5A
• Max Switching Current DC: 5A
• Max Switching Power AC: 1250VA
• Max Switching Power DC: 150W
• Contact Material: Silver alloy
• Coil Resistance (5V): 720Ω
• Max Coil Power: 200mW
• Insulation Resistance: >1000MΩ @ 500V dc
• Dielectric Strength (for 1 min):
• 750V ac between open contacts
• 3000V ac between coil & contact
• Electrical Life: 100,000 operations
• Mechanical Life: 10 million operations

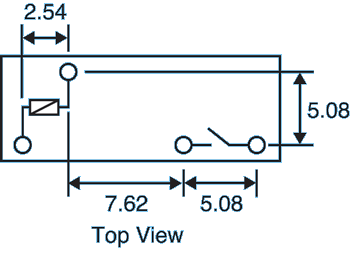

• Dimensions: ~6.5W x 17.5L x 12.5H mm

  *Specifications are subject to change without notice
