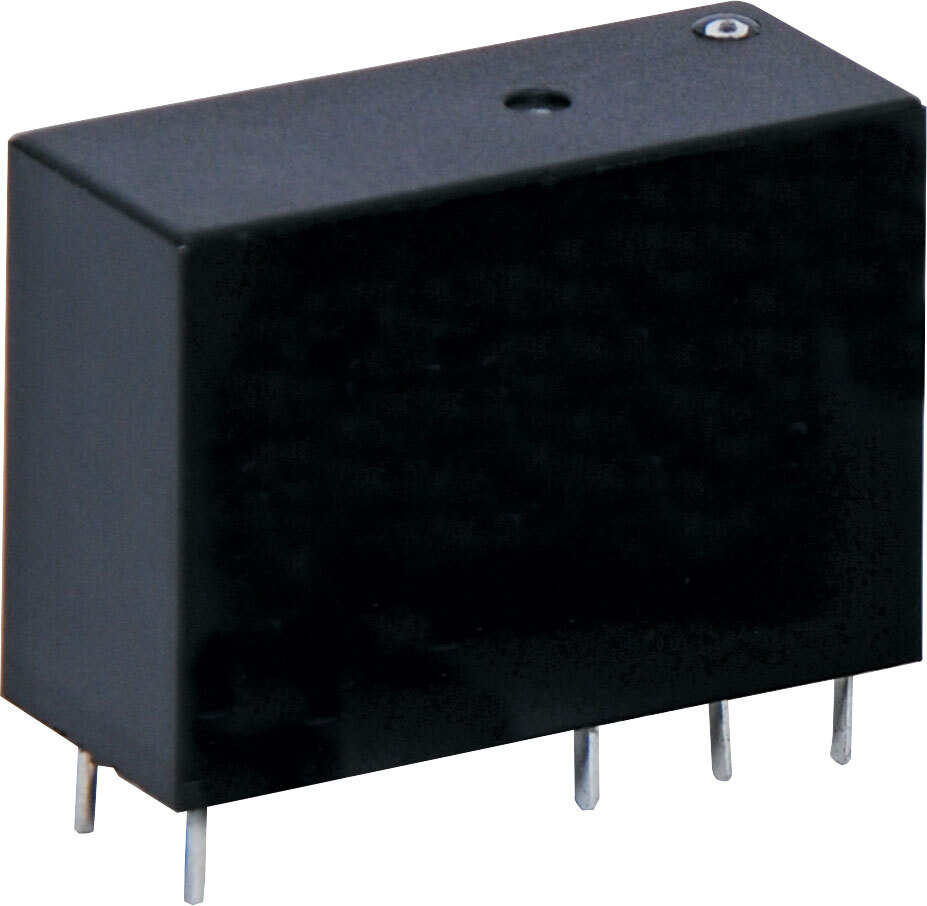

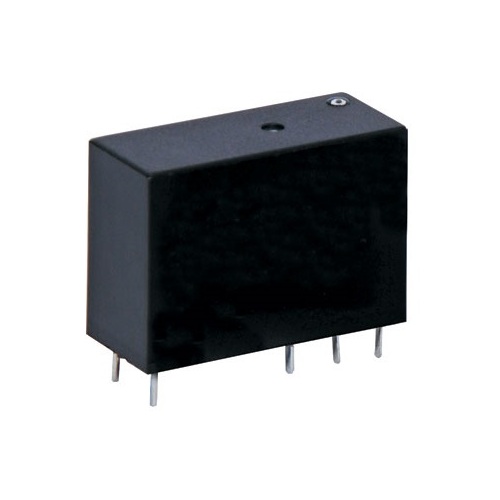

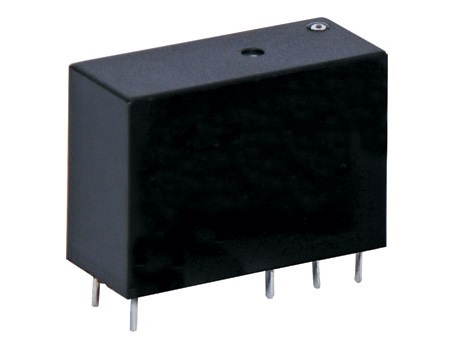

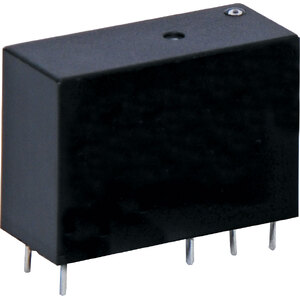

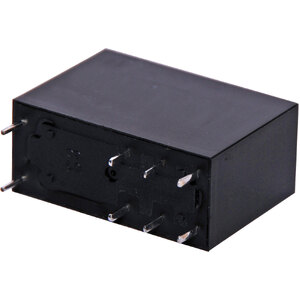

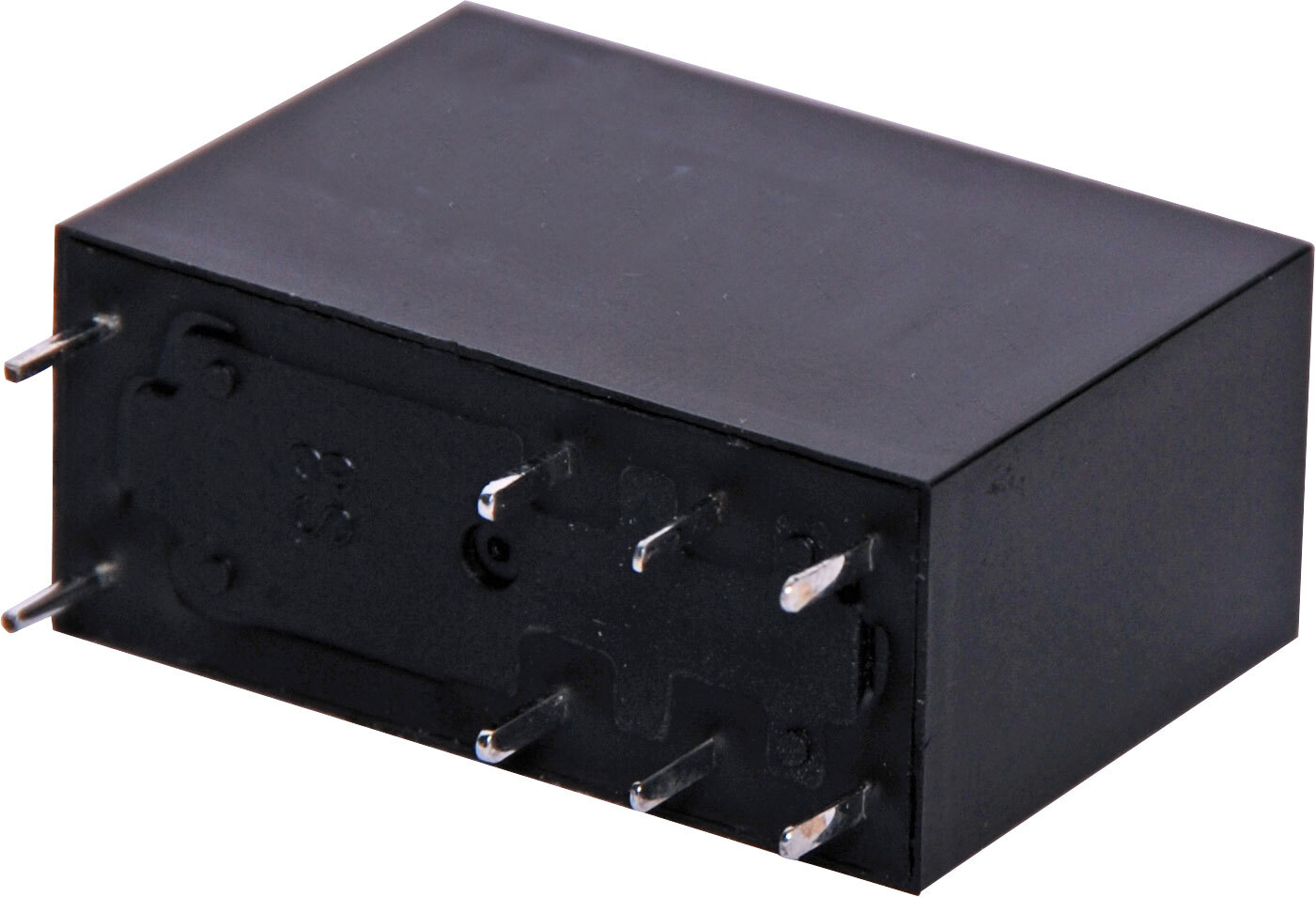

5A 24VDC DPDT PCB Mount Relay

24V Relay

5A DPDT relay. PCB mount style. 24V DC coil.
Non-sealed type, suitable for flow soldering.

• Max Switching Voltage AC: 250V
• Max Switching Voltage DC: 30V
• Max Switching Current AC: 8A
• Max Switching Current DC: 8A
• Max Switching Power AC: 1250VA
• Max Switching Power DC: 150W
• Contact Material: Silver alloy
• Coil Resistance: 1050Ω
• Max Coil Power: 540mW
• Insulation Resistance: >100MΩ @ 500V DC
• Dielectric Strength (for 1 min):
• 1000V AC between open contacts
• 5000V AC between coil & contact
• Electrical Life: 100,000 operations
• Mechanical Life: 10 million operations
• Dimensions: 29W x 12.7L x 20H mm

  *Specifications are subject to change without notice
