5A Panel Mount Circuit Breaker

Ultra Responsive Circuit Breakers to Protect Circuitry

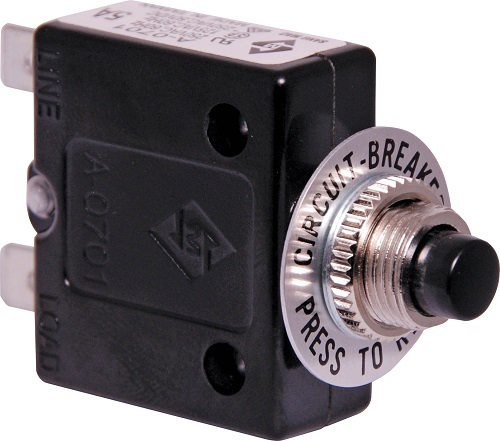

This 5A panel mount push button single pole circuit breaker uses a snap acting bimetal element to sense current overload. As the bimetal snaps through in response to an overload, it opens the electrical contacts and allows the reset button to pop out. The circuit remains disconnected until someone pushes the reset button, closing the contacts and re-energising the circuit. Designed for protection of industrial circuitry up to 250V AC or 50V DC voltages. Requires a 12mm mounting hole.18mm label plate.


Trip Time Information
100% - No trip
165% - Trip in 1hr.
200% - 4 to 30s
300% - 2.5 to 11s
400% - 1.6 to 7s
500% - 0.8 to 2.5s
600% - 0.6 to 1.7s


Features:

• UL, CSA, VDE approved
• RoHS approved
• Rating at 250V AC or 50V DC
• Black plastic actuator button
• Supplied with all mounting hardware
• Quick connect 6.3mm terminals
• Includes ID plate

Specifications:

• Reset Type: Manual
• Hold Current: 100% load indefinitely
• Trip Current:
• Within 1 hr @ 145% load
• Within 1 minute @ 200% load
• Max. Voltage: 250V AC or 50V DC
• Contact Life: 125V AC @ 150% of rated current, 500 cycles
• Dielectric Strength: 1500V AC / 1 minute
• Insulation Resistance: > 100MΩ
• Max Internal Resistance: 0.050Ω
• Derating Factor: x 1.00
• Panel Cutout: Single hole mount 12mm Ø
• Dimensions: 36H x 31L x 15W mm (exc. terminals)
• Note: All specifications at 25°C
