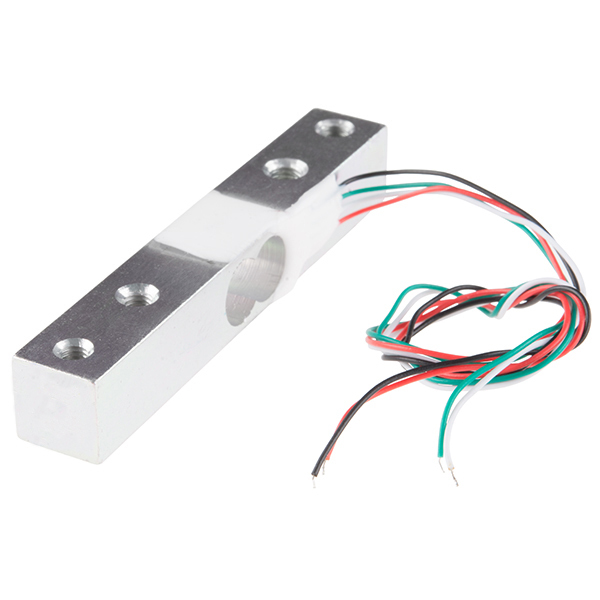

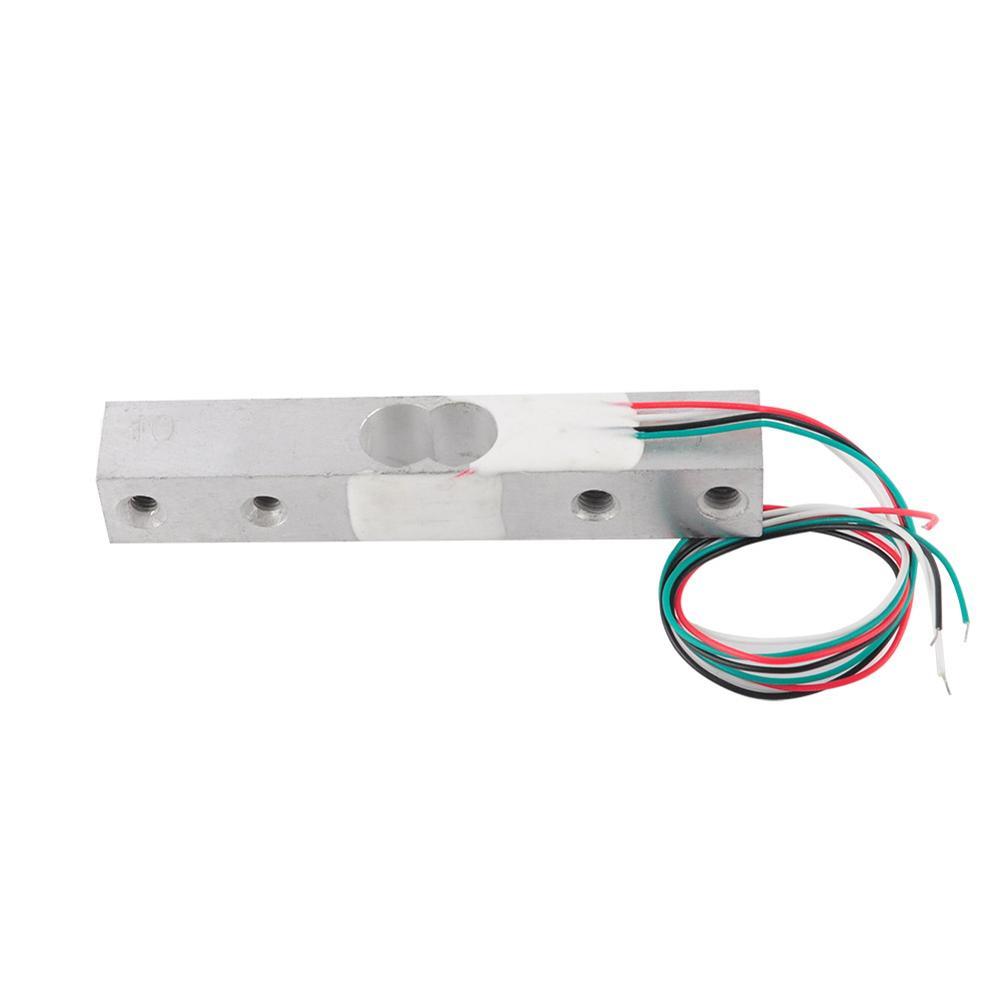

5KG Load Cell Weight Sensor Module for Electronic Scale Arduino Project

Great for building your own Electronic Scale project

This Load Cell Weight Sensor or strain gauge can translate up to 5KG of pressure (force) into an electrical signal. Load cells basically transducers that are designed to measure a specific force, and ignore other forces being applied. The electrical signal output by the load cell is very small and requires a load cell amplifier such as a HX711 load cell amplifier (see our part number TA0354)

The Load Cell senor is made from an aluminum-alloy and is capable of reading a capacity of 5KG and designed to measure force in one direction.

Specification:

• Model: YZC-131
• Material: Aluminum
• Dimensions: 75×12.7×12.7mm
• Range: 5kg
• Rated output 1.0 ± 0.1mV / V
• Operating temperature range -20 ~ 65°C
• Weight:28g
