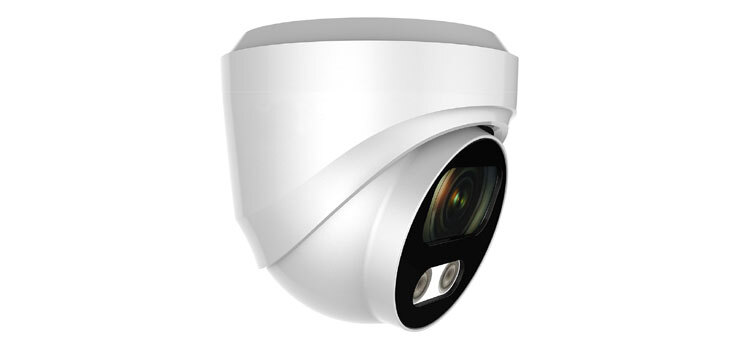

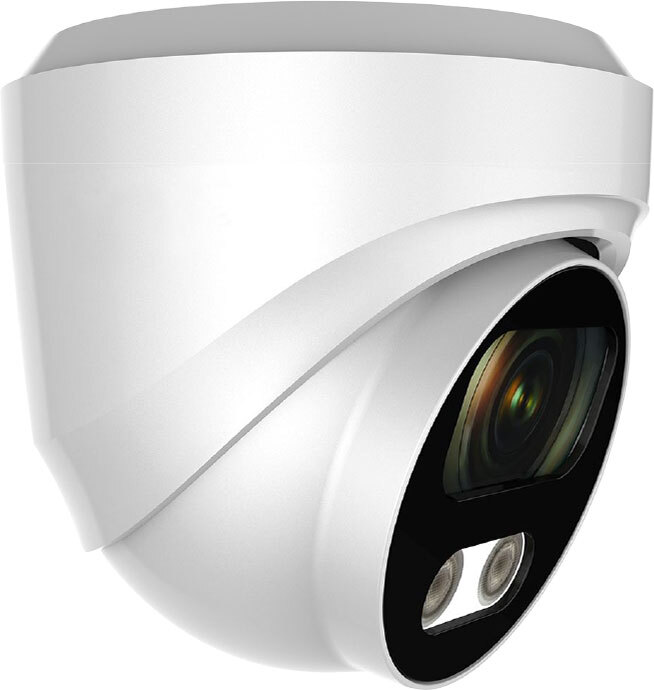

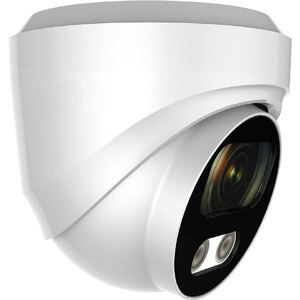

5MP Full Colour Dome IP Camera w/ Security Light

High sensitivity sensor for colour night time imaging

A new series of camera designed to provide full colour video day and night. The camera has a security light in-built which allows the high sensitivity sensor to reproduce colour night time imaging compared with traditional day/night cameras which only display B&W when IR is activated. Light can also flash upon detection to deter intruders.

This dome camera can be mounted to the wall using S9069 - see accessories listed below


Features

• H.264, H.265+, JPEG, MJPEG compression

• 5 megapixel @ 30fps

• Offers night time colour video

• Ideal for domestic installations

• In-built LED security light

• Motion detect flashing mode

• Up to 30m night time illumination

• Metal housing

• 3.6mm lens

• Simultaneous multiple streams

• Supports ONVIF

• SD card slot

• PoE receiver

• Camera

• Image Sensor: 1/2.8" SONY Starvis Back-illuminated CMOS sensor

• Resolution: 5MP

• Effective Pixels: 2616 (H)*1964 (V)

• Compression: H.264/H.265/JPEG/AVI

• Audio Compression: G711A/U,AAC

• TV System: PAL/NTSC

• Electronic Shutter Time: Auto: 1/3-1/100000Sec

• Minimum Illumination: Colour: 0.006 Lux @ (F1.6, AGC ON), B/W: 0 Lux with white light

• S/N Ratio: ≥52dB

• Scanning System: Progressive

• Video Output: Network

• Reset Button: Optional

•

• Lens

• Focus Length: Board Lens 3.6mm

• Focus Control: Fixed

• Lens Type: Fixed

• Pixels: 5MP

•

• Night Vision

• Infrared LED: No, Support Warm light LED 4000K, up to 25m

• IR Status: Auto Control

• IR Power On: Smart, Manual & Timed mode

•

• Network

• Ethernet: RJ-45 (10/100Base-T)

• Wireless: N/A

• Protocol: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP ,PPPoE, NTP, SMTP, UDP, SNMP

• ONVIF: Support ONVIF 19.12(Profile S/T/G)

• P2P: YES

• POE: Internal, Support IEEE 802.3af

• Video Delay: 0.3S (Within the Lan)

• Main Stream 1: 2592*1944@30fp

• Main Stream 2: 2560*1440@30fp

• Main Stream 3: 1920*1080@30fps

• 1280*720@30fps

• Sub Stream 1: 1280*720@30fps

• Sub Stream 2: 720*480@30fps

• Sub Stream 3: N/A

• Tri Stream: N/A

• IE Browser: IE8-11, Google Chrome, Firefox , Mac Safari

• Smart Phone: iPhone, Android

•

• AI Function

• Intelligent Analysis: Intrusion Detection, Line Cross Detection, Loiter Detection, People Gather Detection(based on human detection),Motion detection based on human detection

•

• Camera Features

• Day/Night: Colour

• Image Config: Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR, White Balance, FLK (Flicker Control), Occlusion Detection, HLC

• Full Colour: Support

• Corridor Pattern: Support

• Defog Mode: N/A

• ROI: Support

• BLC: Support

• WDR: 120dB

• Motion Detection: Support (support enable the detection based on human movement only)

• Privacy Masking: 3 Rectangular Zone

• Recording Mode: NVR/CMS/Web

• Language: Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Arabic, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian, Netherlands, Czech, Vietnamese.

•

• Interface

• Audio: Optional 1 Built-in MIC

• Alarm: N/A

• SD Card Slot: Optional Internal, Support Max 512GB

• RS485: N/A

•

• General

• Housing: Metal , IP67

• Anti-cut Bracket: NO

• IR Cut Filter: YES

• Operation Temperature: -20℃ ~ +60℃ RH95% Max

• Storage Temperature: -20℃ ~ +60℃ RH95% Max

• Power Source: DC12V±10%, 1000mA

• Dimension: ￠96 x 91(H) mm

• Weight: 600g

  *Specifications are subject to change without notice.
