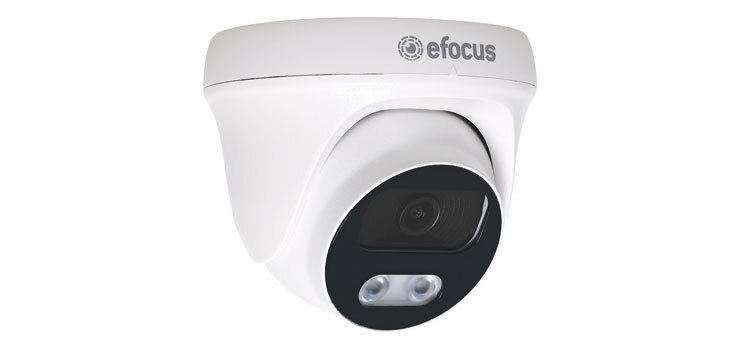

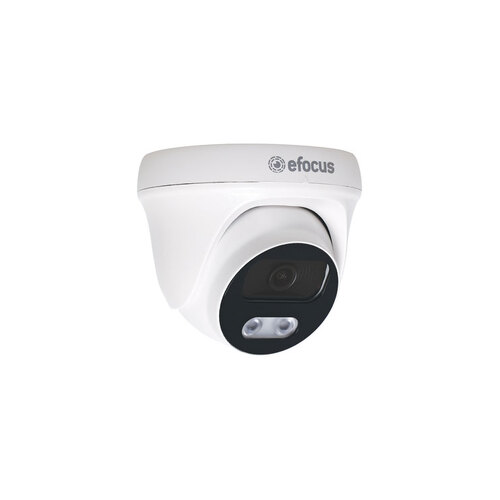

5MP Weatherproof IP PoE Dome Camera

High resolution IP dome camera with multi-codec support

A day/night high resolution IP dome camera with multi-codec support. Offering a clear 2592x1944 image at 30fps for integration with HD network video recorders. Motion detect triggering is also available. An in-built PoE receiver makes it easy to hook up to PoE ready NVRs. Supports ONVIF protocol for integration with most network video recorders.

Features

• Pro IP Dome

• 1/2.8" SONY Starvis Back-illuminated CMOS Sensor

• H.265+/H.265/H.264+/H.264 Compression Method

• 3.6mm Fixed Lens

• IR Distance 25M Max.

• Internal POE and SD Card Slot

• Camera

• Image Sensor: 1/2.8" SONY Starvis Back-Illuminated CMOS Sensor

• Resolution: 5MP

• Effective Pixels: 2616 (H) x 1964 (V)

• Compression: H.264/H.264+/H.265/H.265+/JPEG/AVI /MJPEG

• TV System: PAL/NTSC

• Electronic Shutter Time: Auto: PAL 1/25-1/10000Sec; NTSC 1/30-1/10000Sec

• Minimum Illumination: 0.01Lux

• S/N Ratio: ≥52dB

• Scanning System: Progressive

• Video Output: Network

•

• Lens

• Focus Length: 3.6mm

• Focus Control: Fixed

• Lens Type: Fixed

• Pixels: 5MP

•

• Night Vision

• Infrared LED: 42μ x 2PCS

• Infrared Distance: 25M

• IR Status: Auto Control

• IR Power On: Smart, Manual & Timed Mode

•

• Network

• Ethernet: RJ-45 (10/100Base-T)

• Protocol: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP ,PPPoE, NTP, UPnP, SMTP, UDP

• ONVIF: Support ONVIF 2.4(Profile S/T/G)

• P2P: YES, Support QR Code

• POE: Internal, Support IEEE 802.3af

• Video Delay: 0.3S (Within the Lan)

• Main Stream 1: 2592*1944@30fp

• Main Stream 2: 2560*1440@30fp

• Main Stream 3: 1920*1080@30fps, 1280*720@30fps

• Sub Stream 1: 1280*720@30fps, 720*480@30fps

• Sub Stream 2: 352*288@30fps

• Tri Stream: 1280*720@30fps, 720*480@30fps, 352*288@30fps

• IE Browser: IE8-11, Google Chrome, Firefox , Mac Safari

• Smart Phone: iPhone, iPad, Android, Android Pad

•

• AI Function

• Intelligent Analysis Face Detection, Intrusion Detection, Line Cross Detection, Loiter Detection, People Gather Detection

•

• Camera Features

• Day/Night: Color/ B&W (IR-CUT)

• Image Config: Saturation, Brightness, Contrast, Sharpness, Mirror, 3D NR, White Balance, FLK (Flicker Control), Video Tampering, HLC, Distortion

• Corridor Pattern: Support

• Defog Mode: Support

• ROI: Support

• BLC: Support

• WDR: HDR: 120dB

• Motion Detection: Support

• Privacy Masking: 3 Rectangular Zone

• Recording Mode: NVR/CMS/Web

• Language: Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Arabic, German, Russian, French, Korean, Portuguese,

• Japanese, Turkish, Spanish, Hebrew, Italian, Nederlands, Czech, Vietnamese.

•

• Interface

• Audio: 1 Built-in MIC (Optional Audio LINE IN/OUT)

• SD Card Slot: Internal, Support Max 512GB,Built in 4G Storage

•

• General

• Housing: Metal , IP67

• Anti-Cut Bracket: NO

• IR Cut Filter: YES

• Operation Temperature: -20℃ ~ +60℃ RH95% Max

• Storage Temperature: -20℃ ~ +60℃ RH95% Max

• Power Source: DC 12V±10%, 700mA

• Dimension:￠109 x 93(H) mm

• Weight: 600g

  *Specifications are subject to change without notice.
