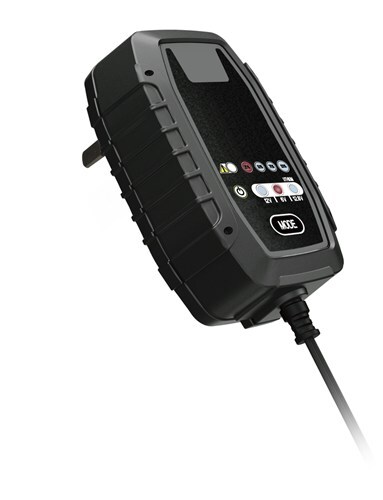

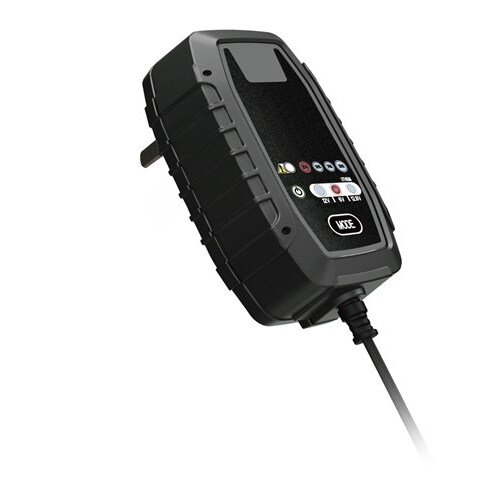

6/12VDC 0.87A 7-Step Intelligent Lead Acid & Lithium Battery Charger
Great Charger & Mainatiner for 6/12V Automotive battery
SKU: PS3550
6/12VDC 0.87A 7-Step Intelligent Lead Acid & Lithium Battery Charger
Great Charger & Mainatiner for 6/12V Automotive battery
An intelligent battery charger to keep your batteries in peak working order. Suitable for 6V or 12V Lead Acid batteries between 1.2Ah - 26Ah, or 12.8V LiFePO4 from 2Ah to 15Ah. The seven charging modes keep batteries fully charged and in peak condition, and can also recover slightly sulfated batteries to increase battery life. LEDs on the front panel indicate the state of charge and a push button enables you to select the appropriate charge mode. The housing can be permanently mounted using the integrated mounting holes and the IP65 weatherproof rating means it can handle a little rain. The charger is mains powered, terminated to battery clips on a 1.8m lead, and features short circuit, overload, incorrect polarity, reverse battery, and safety timer protection.
Battery Support:
• Sealed, Gel, AGM or Flooded Lead (6/12V, 1.2Ah - 26Ah)
• LiFePO4 (12.8V, 2Ah - 15Ah)
Features:
- 6V/12V dual function charger
- Suitable for Lead Acid and LiFePO4 batteries
- 7 state intelligent charging modes
- Can recover slightly sulfated batteries
*Please note this charger will not recharge a completely flat battery
Specifications:
Charging Voltage:
Lead Acid: 7.3V/ 14.4V DC
LiFePO4: 12.8V/ 4 cells
Protection: Short circuit, Overload, Wrong polarity, Reverse Battery, Safety Timer
Specifications
IP Rating : IP65 |
Dust/Particle Ingress Protection : 6 - Dust tight, no ingress of dust |
Liquid/Moisture Ingress Protection : 5 - Water jets |
Length : 107mm |
Width : 63mm |
Depth : 34mm |
Mains Voltage Range : 220V, 250V |
Frequency : 50Hz, 50Hz |
Mains Max Current : 0.6A |
Packaged Volume : 1.04l |
Packaged Weight : 0.29kg |
Packaged Length : 15.7cm |
Packaged Width : 8.8cm |
Packaged Height : 7.5cm |
Type of Batteries : Deep Cycle SLALithium Ferrous Phosphate (LiFePO4) |
Charger Output Voltage : 7.3V, 14.4V |
Charger Output Current : 800mA |
Connection Type : Alligator Clips |
Additional Functions : Short Circuit ProtectionOverload ProtectionSafety Timer Protection |
SKU | PS3550 |
Barcode # | 9351634063680 |
Shipping Weight | 0.4000kg |
Shipping Width | 0.250m |
Shipping Height | 0.050m |
Shipping Length | 0.150m |
Shipping Cubic | 0.001875000m3 |
Unit Of Measure | ea |
