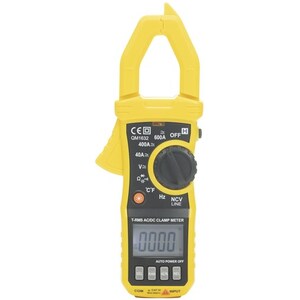

600A True RMS AC/DC Digital Clamp Meter
Easily measure AC or DC Current and Voltage
SKU: TT4338
$119.95
RRP $239.00
In Stock
600A True RMS AC/DC Digital Clamp Meter
Easily measure AC or DC Current and Voltage
ncludes DC current measurement with high accuracy, from a compact unit. This is a price breakthrough for a DC current capable clampmeter! Carry case included.
Features:
- True RMS
- Non contact voltage testing
- Relative measurement
- Frequency measurement
- Capacitance
- Data hold
- Temperature
- Resistance
- Display: 6000 count
- Measurement Category: 600V Cat III
- Basic VDC Accuracy: 0.5%
- AC Rectification: True RMS
- Special Features: Non contact voltage, LINE test, data hold, backlight, relative measurement.
Specifications
| Capacitance Ranges : 10nF, 100nF, 1µF, 10µF, 100µF, 1mF, 10µF, 100mF |
| AC Current Ranges : 40A, 400A, 600A |
| DC Current Ranges : 40A, 400A, 600A |
| Frequency Ranges : 10Hz, 100Hz, 1kHz, 10kHz, 100kHz, 1MHz, 10Hz |
| Resistance Ranges : 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40Ω |
| Outdoor / Exterior Scale : -20°C, 1000°C |
| Outdoor / Exterior Scale : 0°F, 1800°F |
| AC Voltage Ranges : 400mV, 4V, 40V, 400V, 600V |
| DC Voltage Ranges : 400mV, 4V, 40V, 400V, 600V |
| Data Hold : true |
| Display Type : LCD |
| Display Backlight : White LED Backlit |
| Safety Rating Cat : Cat III |
| Safety Rating Max Volt : 600V |
| Count Maximum Reading : 4000 count |
| True RMS : true |
| Autorange : true |
| Measures duty cycle : true |
| Width : 72mm |
| Height : 194mm |
| Depth : 35mm |
| Weight : 230g |
| Size / Shape : AAA |
| Battery quantity : 3pc |
| Batteries included : true |
| Compartment location : Back |
| How is battery compartment kept closed : Screw |
| Packaged Volume : 1.8l |
| Packaged Weight : 0.49kg |
| Packaged Length : 23.5cm |
| Packaged Width : 15.6cm |
| Packaged Height : 4.9cm |
| Measurement Range Count : 4000 count |
| Meter Input Impedence : 10MΩ |
| Non-contact Voltage Indicator : true |
| Measures diode : true |
3 Month Warranty
| SKU | TT4338 |
| Barcode # | 9351634064373 |
| Brand | Aus Electronics Direct |
| Shipping Weight | 0.3000kg |
| Shipping Width | 0.300m |
| Shipping Height | 0.050m |
| Shipping Length | 0.250m |
| Shipping Cubic | 0.003750000m3 |
| Unit Of Measure | ea |
| Assembled Length | 0.700m |
| Assembled Height | 0.240m |
| Assembled Width | 0.126m |
