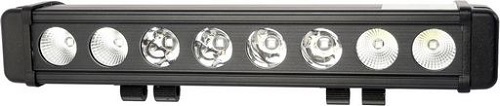

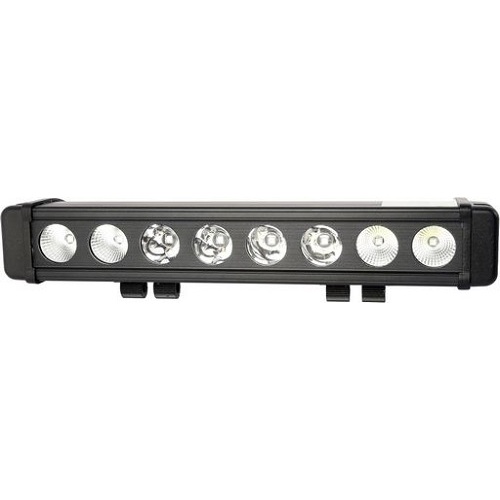

6800 Lumen IP67 8 x 10W CREE LED Light Bar

LED Light Bar with Large Projector Reflectors

COMBINATION WIDE & NARROW BEAM - IP67 WEATHERPROOF

4 x Narrow (Spot) and 4 x Wide (Flood)

LED light bars are suitable for auto, marine and many general purpose lighting applications where high brightness is required. These light bars use the high performance, long life, and highly energy efficient Cree LEDs which are capable of delivering extremely high light output with over 90% power efficiency. Constructed with a tough metal housing to protect it from wear, damage and weather. The finned back allows heat to be dispersed quickly so as to prevent the LEDs from overheating and extend product life. Available from 20W to 200W with built-in combination of wide and narrow beam reflectors. On a vehicle, this gives a spot light for far ahead and flood light for peripheral illumination. Ideal for 4WD, SUV, work vehicles, Forklifts, Trucks, Excavators, Boats, etc. In-built circuitry with wide voltage input allows easy connection to 12V or 24V DC systems. 300mm (1ft) heavy-duty cord terminated to bare wire. Also suitable for other lighting applications for buildings, gardens, walk-ways, advertising, etc. (Requires DC power source). Tilt adjustable vertical mounting kit included enables attaching to standard 10mm holes. Optional bull-bar/post mounting brackets are available using additional mounting solutions.


• LED light bars are suitable for auto, marine and many general purpose lighting applications.
• These light bars use the high performance, long life, and highly energy efficient Cree LEDs
• Cree LEDs are capable of delivering extremely high light output with over 90% efficiency.
• Constructed with a tough metal housing to protect it from wear, damage and weather.
• Available in 20W to 200W, with wide or narrow beam reflectors or combinations of both.
• For vehicles, this gives a spot light for far ahead and flood light for peripheral illumination.
• Ideal for 4WD, SUV, work vehicles, Forklifts, Trucks, Excavators, Boats, etc.
• Built-in circuitry with wide voltage input allows easy connection to 12V or 24V DC systems.
• Also suitable for buildings, gardens, walk-ways, advertising, etc. (Requires DC power source).
• A mounting installation kit is included with locking angle adjustment. 10mmØ Bolt.
• Optional bull-bar brackets are available using standard antenna mounting solutions.

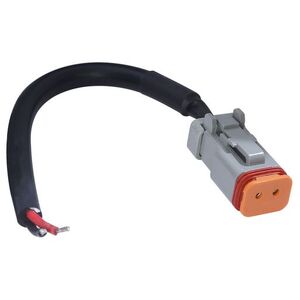

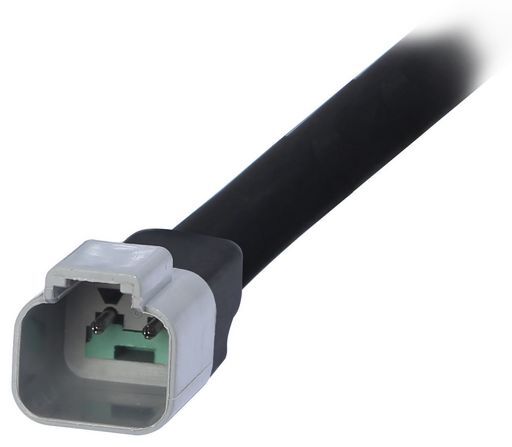

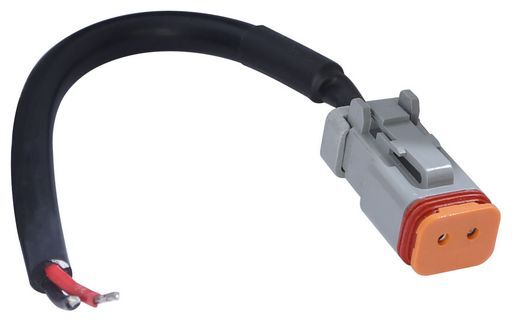

• 300mm wire terminates to WK series plug with 100mm WK female to bare wire adaptor


• Colour Temp. 6000-6500K
  Colour Cool White
  Voltage 10V to 45Vdc
  Weather Proof IP67
  Spot Light 10° Narrow Beam
  Flood Light 90° Wide Beam
  Operating Temp. -40°C to +50°C

  All light bars are supplied with mounting hardware. Requires wiring kit, sold separately. Alternatively you can cut the plug and wire it yourself.

Specifications:

Description    4x Narrow [Spot], 4x Wide [Flood]
Voltage    10V-45VDC
Size    415x95x82mm
Power    80W
Colour    Cool White
Colour Temp    6000-6500K
Lumens    6800
Beam Angle    Combination
Light    8x 10W CREE LED
IP Rating    IP67
Operating Temperature    -40-50°C
Manufacturer    Celestra
Shape    Straight
Type    Light Bar
