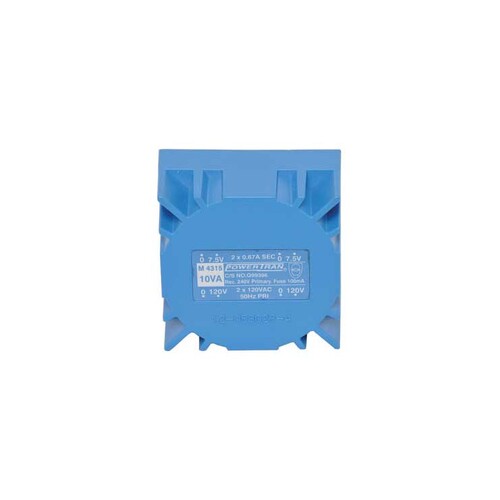

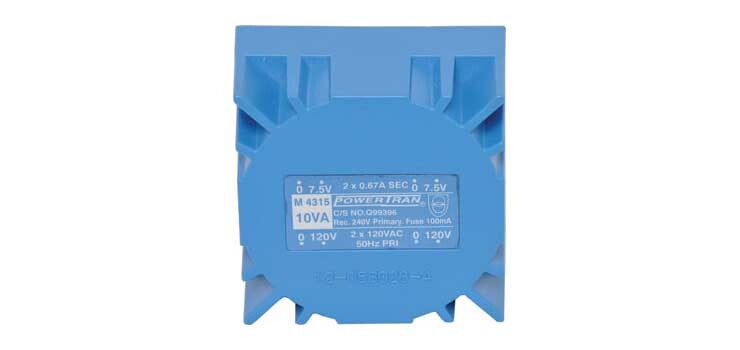

6 + 6V PCB 10VA Toroidal Transformer

Toroidal Transformers

Toroidal transformers provide a higher output compared to traditional E-I transformers of a similar physical size. They have substantially reduced radiated hum and electrical noise, generate less heat and have much better regulation making them ideal for high performance, low noise circuits.

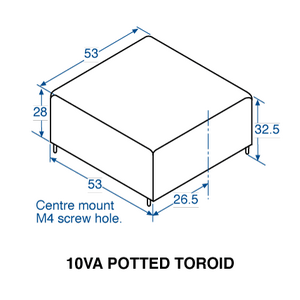

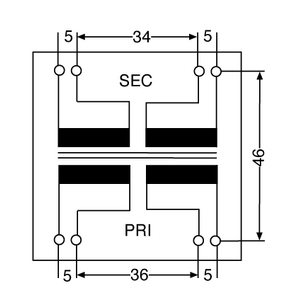

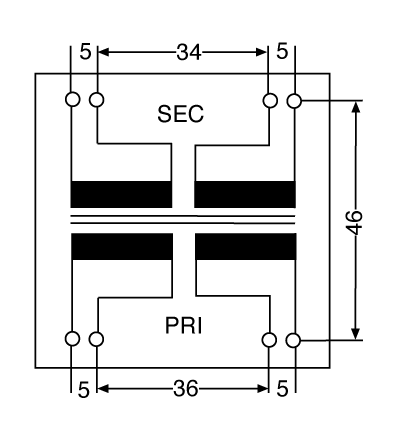

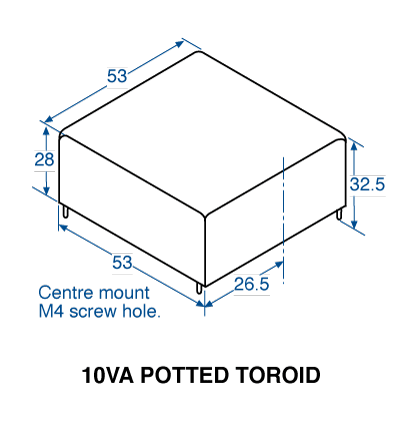

The transformer is “potted” in an epoxy compound within a plastic housing. Configured with 2 x 120V primaries and 2 identical secondaries which can be wired in either series or parallel. Being PCB mount reduces assembly time as the transformer simply solders to the PCB. For extra stability and mechanical reliability the transformer can be secured to the PCB with a self tapping screw.

SPECIFICATIONS:

• Sec. V: 6+6
• Sec. Parallel: 1.67A
• Sec. Series: 0.83A
• Primary voltage: 2 x 120V AC
• Total VA rating: 10VA
• Insulation: Class A (105°C)
• Magnetising current: <20mA
• Temperature rise: <65°C
• Recommended AC Fuse: 100mA
• Regulation: ˜20%
• Weight: ˜210g
• PCB hole size: 2mm
• AS/NZS 61558.2.6 approval: Q99396
• Note: Must be used with a standard 100mA external AC fuse
