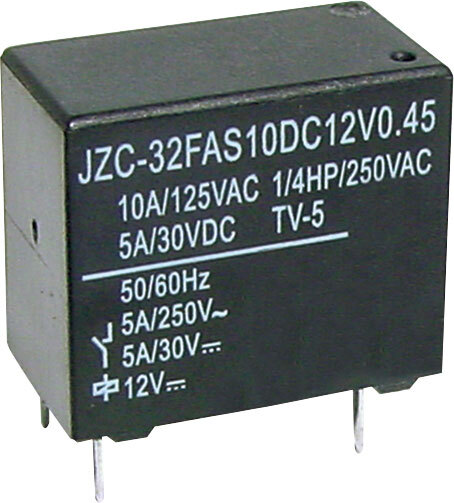

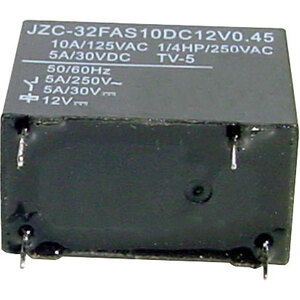

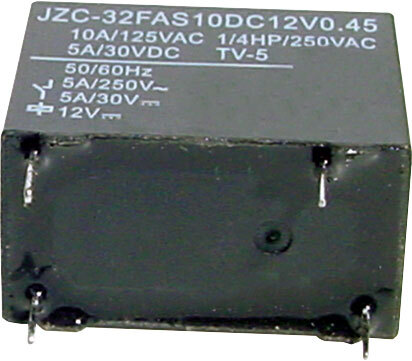

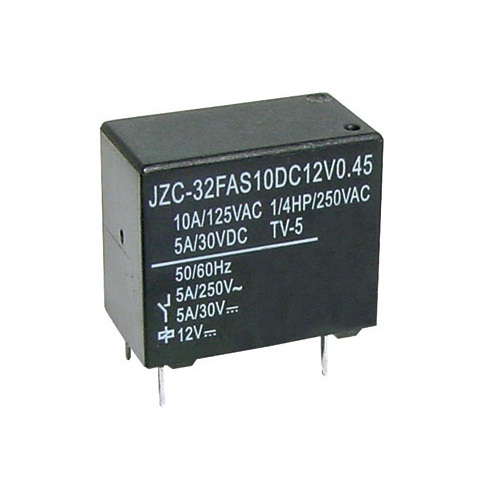

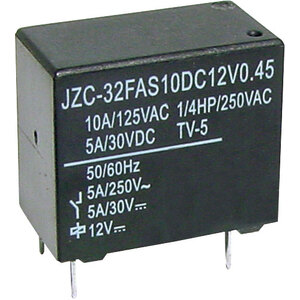

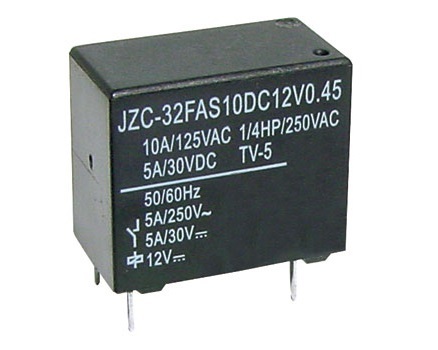

7.5A 12VDC SPST PCB Mount Relay

12V Relay

Non-Sealed type, suitable for flow soldering.

• Max switching voltage: 277V AC, 30V DC
• Max switching current: 10A
• Max VA (Watts): 1250VA (150W)
• Contact material: Silver Alloy
• Coil resistance: 320Ω
• Max coil power: 200mw
• Insulation resistance: >100MΩ @ 500V DC
• Dielectric strength (for 1 min):
• 1000V AC between open contacts
• 2500V AC between coil & contact
• Electrical life: 100,000 operations
• Mechanical life: 10 million operations
• Dimensions: 10W x 19L x 15H mm

  *Specifications are subject to change without notice
