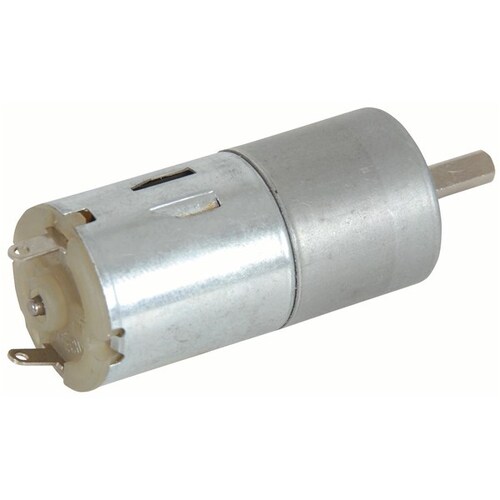

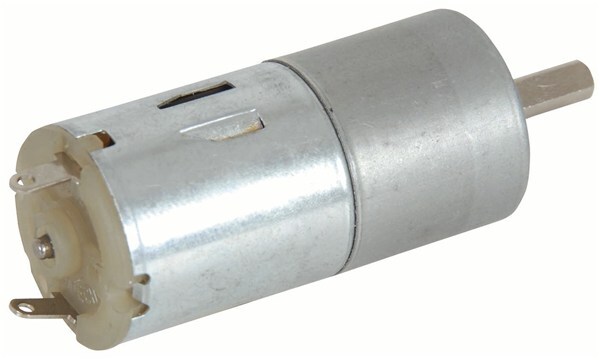

70RPM 12VDC Reversible Gearhead Motor

Compact reversible DC motor with gearbox head

SKU: TM1022


$19.95
RRP $39.95
In Stock

Buy In Bulk & Save!
Buy 4 to 10: Pay $18.95
Buy 11 to 20: Pay $18.00
Buy 21 to 100: Pay $16.20
Buy 101 to 1,000: Pay $14.58




Calculate Shipping

70RPM 12VDC Reversible Gearhead Motor

Compact reversible DC motor with gearbox head

Compact reversible DC motor with gearbox head for small scale applications. Suitable for small robotics and drive applications.

Operating Voltage 12VDC

At Stall:
Torque:  2.1kg.cm
Current: 350mA

Specifications

DC Voltage : 4.5V, 18V
Item connection : Solder Tags
Packaged Volume : 0.16l
Packaged Weight : 0.05kg
Packaged Length : 11cm
Packaged Width : 6cm
Packaged Height : 2.5cm
Type : Planetary/Orbital
Gear Ratio : 82:1
Adjustable Gear : false
Pre-assembled Gear : true
Motor Type : Gearhead
Motor Nominal Voltage : 12V
No load current : 30mA
No load RPM : 70RPM
Full load current : 390mA
Full load torque : 2.1kg.cm
Max efficiency : 49.3%
Max efficiency power : 1.3W
Max efficiency RPM : 59RPM
Maximum efficiency torque : 480g.cm
Max. efficiency current : 110mA
Shaft diameter : 4mm
Shaft length : 8.8mm
SKU TM1022
Barcode # 9351634072736
Shipping Weight 0.1000kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 0.050m
Shipping Cubic 0.000125000m3
