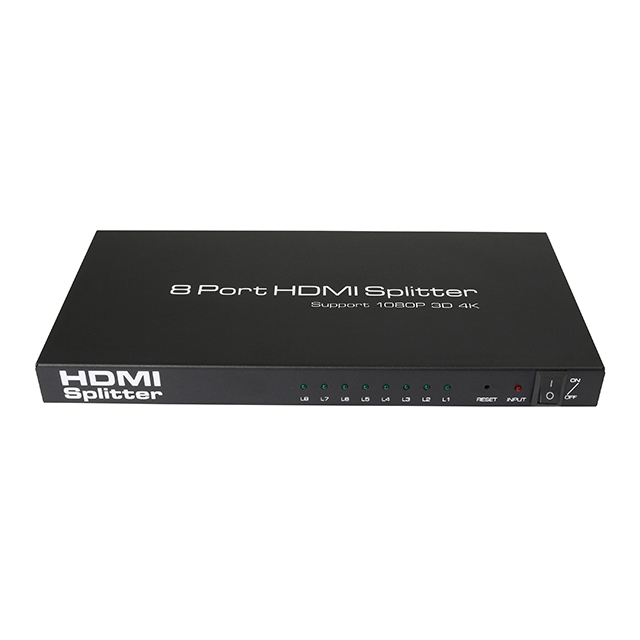

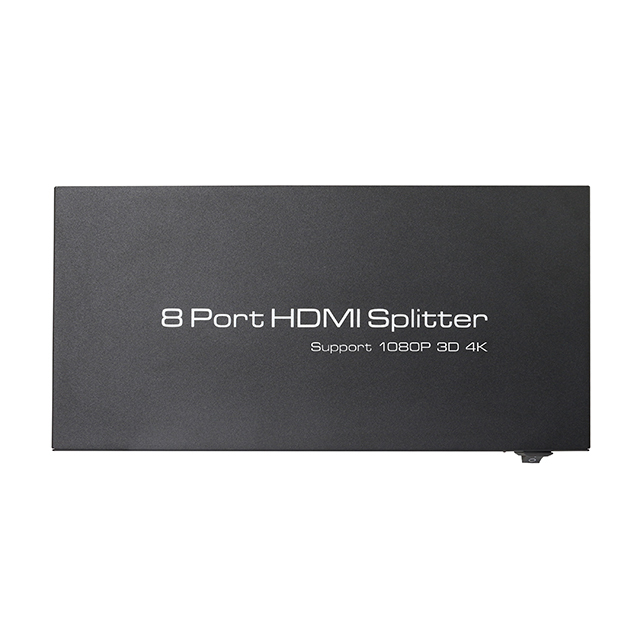

8 Way HDMI AV Splitter

Distribute a HDMI Source to 8 Displays Simultaneously

This 8 Way HDMI AV splitter distributes 1 HDMI source to 8 HDMI output / displays simultaneously. This 8 port HDMI splitter offers HD video solution for super market, shopping Mall, HDTV/STB/DVD/Projector /DVR factory, data control center, information distribution, conference room presentation, education and training, corporation showroom, luxurious house, etc...

Features:

• One HDMI 1.4a input signal split to eight HDMI 1.4a sink devices

• Support  Full HD, Full 3D

• Support 4K*2K resolution

• Support CEC output up to 12metres AWG26 cable length

• No loss of quality Installs in minutes /DSD/HD（HBR）

• Support signal retiming

• Support input up to 12metres AWG26 HDMI standard cable length,

• Support deep color 30bit, 36bit, 48bit

• Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC

• Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3

Specifications:

HDMI resolution - 24/50/60fs @ 1080p / 1080i / 720p / 576p / 576i / 480p / 480i

Support video color format - 24bit/deep color 30bit,36bit, 48bit

Support audio format - DTS-HD / Dolby-trueHD / LPCM7.1 / DTS / Dolby-AC3 / DSD HD(HBR)

Max bandwidth - 340MHz

Max baud rate - 10.2Gbps

Input/Output TMDS signal - 0.5~1.5Volts p-p(TTL)

Input/Output DDC signal - 5Volts p-p (TTL)

Input cable distance - ≤12m HDMI AWG26

Output cable distance - ≤12m AWG26 HDMI standard cable

Max working current - 3A

Power adapter - DC5V/3A

Operating Temperature range - (-15 to +55℃)

Operating Humidity range - 5 to 90%RH (No Condensation)

Dimension (L x W x H) - 280X138X25(mm)

Weight - 871g
