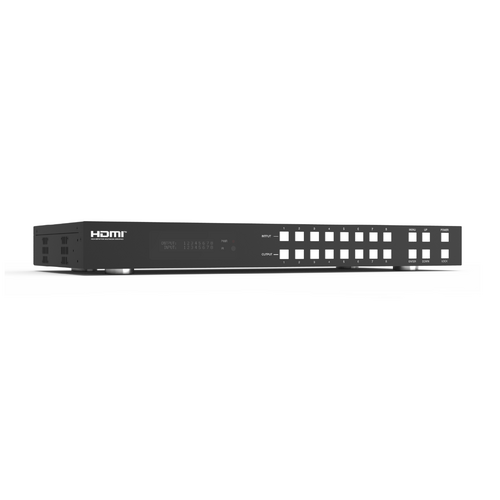

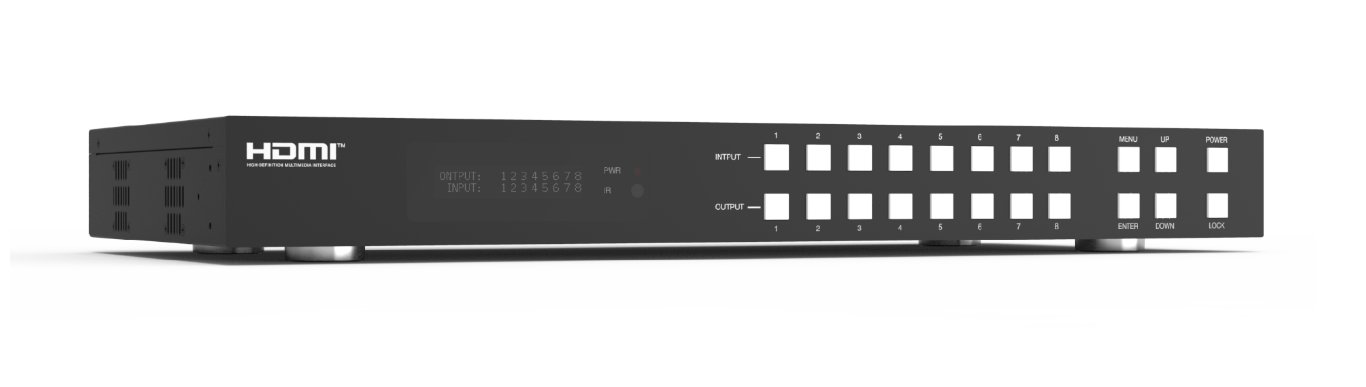

8 x 8 HDMI 2.0 18GBPS Seamless Matrix Splitter with Video Wall Function

Display 4K video source up to 4 LCD's on Video Wall mode

Special Order Product - May take 2+ weeks for delivery

The 18Gbps 8x8 Seamless Matrix is a perfect solution for video transmission from 8 HDMI sources to 8
HDTV displays. Video resolution is up to 4K@60Hz 4:4:4. Each output supports resolution downscaling
individually. It features video wall, multi-view function and built-in WEB server. It also has 8 routes L/R
audio output channels to output balanced audio. And seamless switching ensures a smooth picture
transition without frame loss.

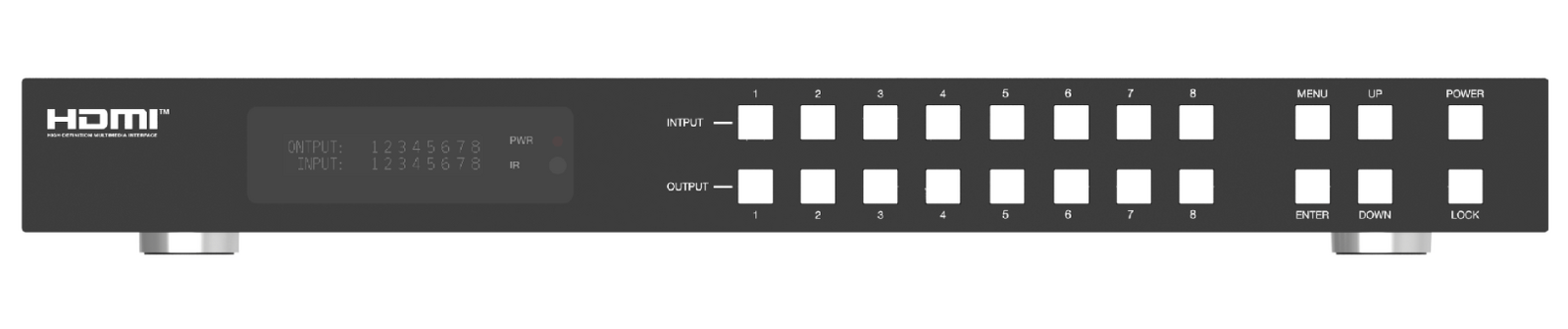

This matrix can be controlled via front panel buttons, IR remote, RS-232 and Web GUI.

Features

☆ HDMI 2.0b, HDCP 2.2 compliant

☆ Up to 4K60Hz RGB/YCbCr 4:4:4

☆ Up to LPCM 7.1ch, Dolby TrueHD and DTS-HD Master  audio pass-through

☆ Seamless switching, video wall function

☆ Built-in equalizer, scaling, retiming and driver Audio de-embedded

☆ EDID management

☆ Front panel button, IR, RS-232, TCP/IP and Web GUI control

☆ HDCP 2.2 compliant
☆ Support video resolution up to 4K@60Hz 4:4:4 and 18Gbps video bandwidth, as specified in
HDMI 2.0b
☆ Support seamless switching
☆ Support 12 display categories in multi-view mode
☆ Support 8 route L/R balanced audio output
☆ Each output supports horizontal mirror and vertical mirror
☆ Blank screen, blue screen and output off are optional when no signal outputs
☆ HDMI audio format: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24,
DTS High Res, DTS-HD Master Audio
☆ Support CEC control, and multiple video resolution output
☆ Support power-off memory and advanced EDID management
☆ Control via front panel buttons, IR remote, RS-232, and Web GUI
☆ Compact design for easy and flexible installation, standard height of 1U

Package Contents
① 1 × 18Gbps 8x8 Seamless Matrix
② 1 × 24V/3.75A Locking Power Supply
③ 1 × IR Remote
④ 1 × IR Wideband Receiver Cable (1.5m)
⑤ 1 × USB to RS-232 Serial Cable (USB A to RS-232 serial DB9 male connector)
⑥ 8 × 5pin-3.5mm Phoenix Connector (male)
⑦ 8 × Machine Screw
⑧ 2 × Mounting Ear
⑨ 1 × User Manual
