80mm 240V AC Ball Bearing Cooling Fan

Cooling Fans and Accessories

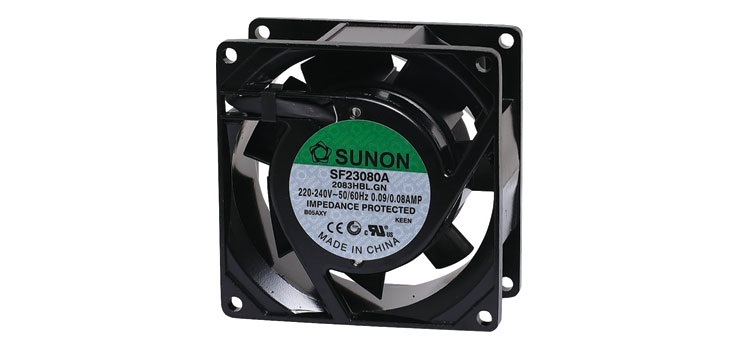

A 240V AC 80mm Sunon Ball Bearing Cooling Fan with diecast aluminium frame.

Designed for long-life and minimal noise operation.

Sunon® fans are manufactured to a very high standard and hold CSA and UL listings.

SPECIFICATIONS:

Mechanical Characteristics

• Motor Design: Shaded pole motor construction
• Motor Protection: Impedance protected
• Bearing System: Precision ball bearing system
• Frame Material: Die-cast aluminium
• Blade Material: Thermoplastic PBT of UL94V-0
• Direction of Rotation: Counter clockwise viewed from the front of the fan blade
• Mounting Holes: 8x 4.3mm holes
• Weight: 340g
• Dimensions: 80 x 80 x 38mm

Electrical Characteristics

• Rated Voltage: 220-240V AC at 60/50Hz
• Rated Current:
• Rated Power:
• Operating Voltage Range: 185-245V AC
• Starting Voltage: 185V AC (25°C Power On/Off)
• Operating Temperature: -10°C ~ +70°C
• Storage Temperature: -40°C ~ +70°C

Performance Characteristics

• Rated Speed: 2400/2850 RPM ±10%
• Air Flow: 24/31 CFM
• Static Pressure: 0.13/0.19 Inch-H2O
• Noise Level: 32/36.5dB(A)
