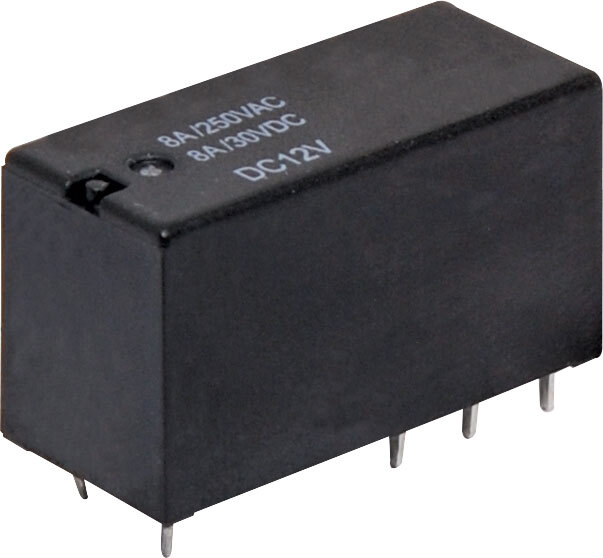

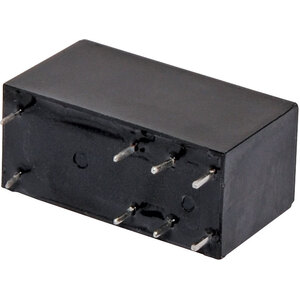

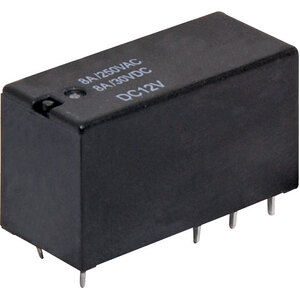

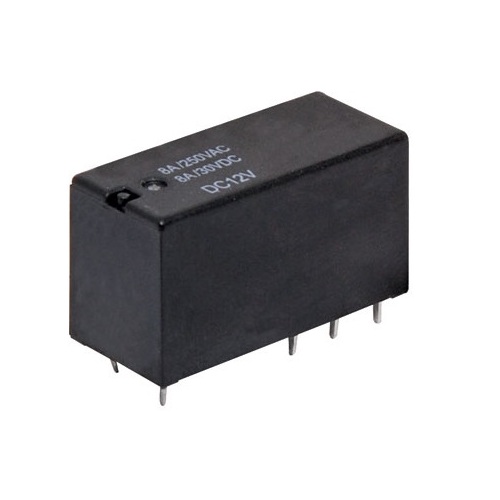

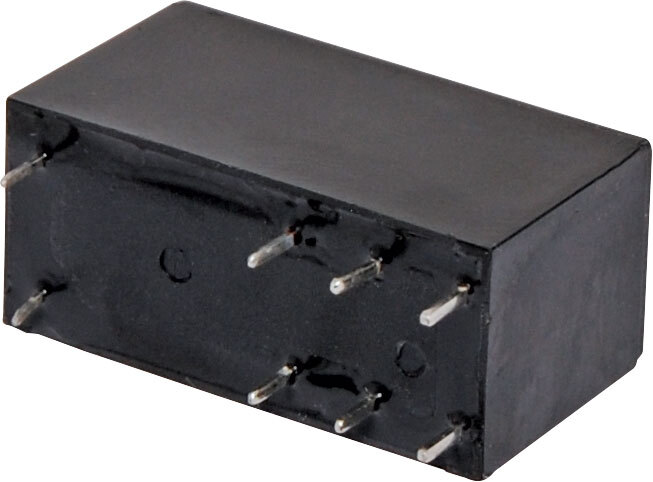

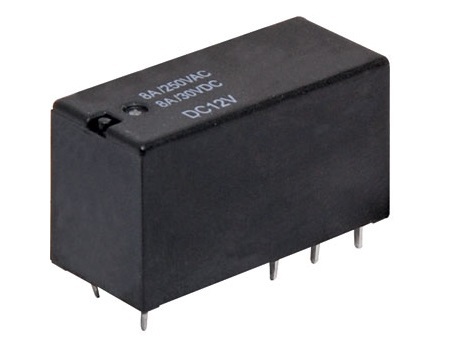

8A 12VDC DPDT PCB Mount Relay

12V Relay

SKU: ER0037


$12.25
In Stock

Buy In Bulk & Save!
Buy 4 to 10: Pay $11.63
Buy 11 to 20: Pay $11.05
Buy 21 to 100: Pay $10.50




Calculate Shipping

8A 12VDC DPDT PCB Mount Relay

12V Relay

8A DPDT relay. PCB mount style. 12V DC coil.
Non-sealed type, suitable for flow soldering.

  • Max Switching Voltage: 440V AC, 125V DC
  • Max Switching Current: 8A (total)
  • Max VA (Watts): 2800VA (240W)
  • Contact Material: Silver Alloy
  • Coil Resistance: 351Ω
  • Max Coil Power: 400mw
  • Insulation Resistance: >1000MΩ @ 500V DC
  • Dielectric Strength (for 1 min):
  • 1000V AC between open contacts
  • 5000V AC between coil & contact
  • Electrical Life: 100,000 operations
  • Mechanical Life: 10 million operations
  • Dimensions: Ëœ29W x 12.7L x 15.7H mm

    *Specifications are subject to change without notice
