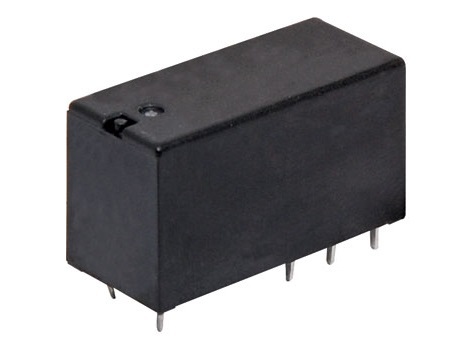

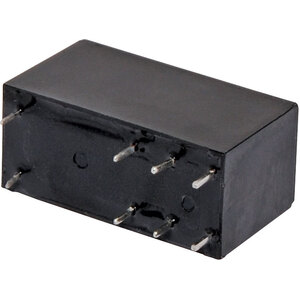

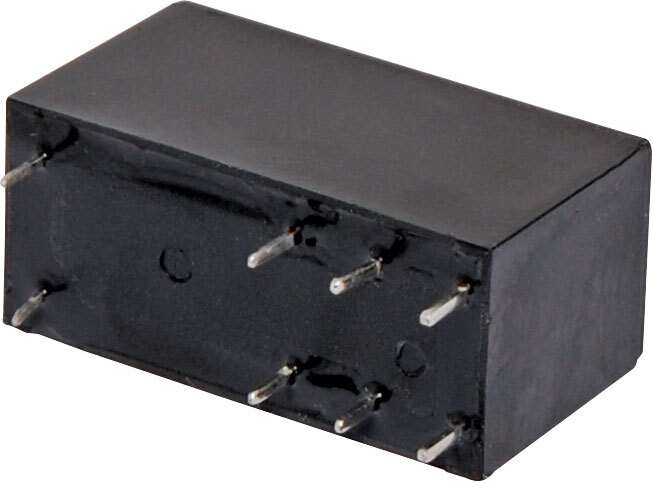

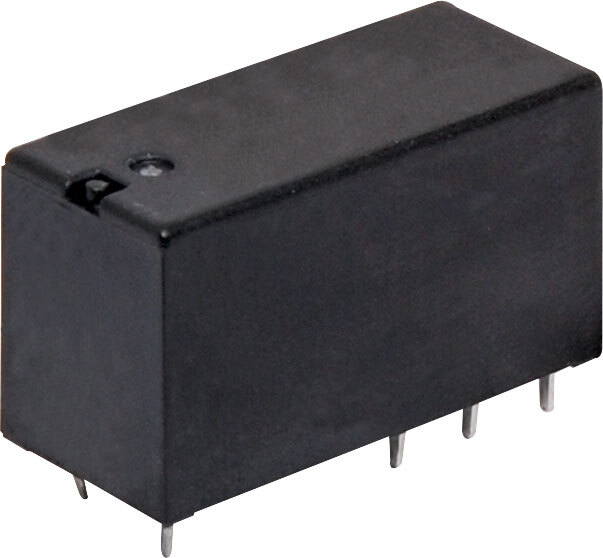

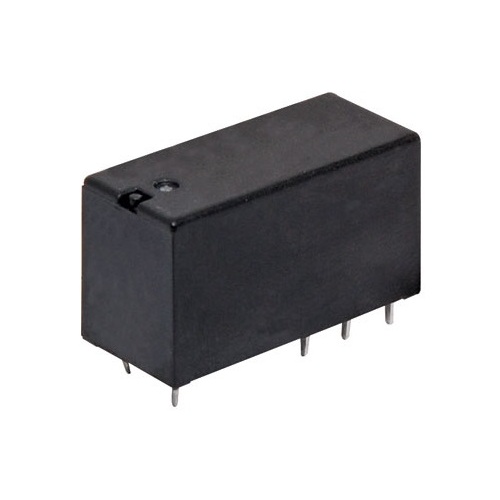

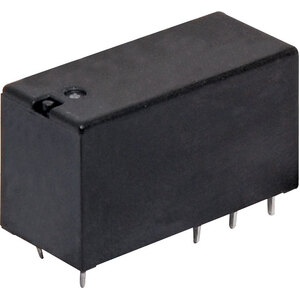

8A 24VDC DPDT PCB Mount Relay

24V Relay

8A DPDT relay. PCB mount style. 24V DC coil.
Non-sealed type, suitable for flow soldering.

• Max Switching Voltage: 440V AC, 125V DC
• Max Switching Current: 8A (total)
• Max VA (Watts): 2800VA (240W)
• Contact Material: Silver Alloy
• Coil Resistance: 1440Ω
• Max Coil Power: 400mw
• Insulation Resistance: >1000MΩ @ 500V DC
• Dielectric strength (for 1 min):
• 1000V AC between open contacts
• 5000V AC between coil & contact
• Electrical Life: 100,000 operations
• Mechanical Life: 10 million operations
• Dimensions: ˜29W x 12.7L x 15.7H mm

  *Specifications are subject to change without notice
