8A 250V Switch Circuit Breaker

Ultra Responsive Circuit Breakers to Protect Circuitry

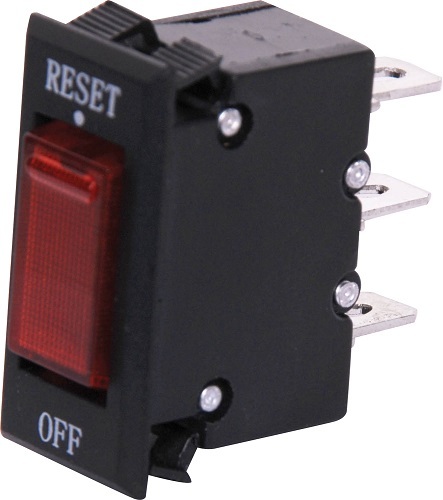

This 8A illuminated panel mount circuit breaker is ideal for use in automotive circuits (both 12V and 24V DC systems) where you require the function of a circuit breaker and ON/OFF switch in the same compact package. These are easy to build into panels or banks of switches (at different current ratings if desired - 3A, 5A, 10A and 15A models also available). If any circuit exceeds the rated current it will trip the breaker, which can be reset using the switch after the fault is removed.

Dimensions:

Specifications:

• Hold Current: 100% load indefinitely
• Trip Current: Within 1 hr @ 135% load
• Within 1 minute @ 200% load
• Neon Voltage: 250V AC
• Max. Voltage: 250V AC or 50V DC
• Panel Cutout: 13.35mm x 28.5mm
• Dimensions: 33H x 32L x 15.5W mm
  All specifications at 25°C.
