8K 40Gbps HDMI 2.1 4 Way Splitter

4 Way HDMI 8K Splitter w/ HDCP 2.3 compliant and 40Gbps

This splitter can distribute one HDMI source signal to any four display devices. It supports video resolution up to 8K@60Hz 4:2:0. It supports advanced EDID management and audio de-embedding function (output through the optical and analog port). This multi-functional product can be widely applied in scenarios of demonstration, video conferencing, multi-media teaching and other occassions requiring for multi screen display.

Box Contents
1 x 8K HDMI 1x4 Splitter
1 x 12V/2.5A Power Supply
1 x User Manual


Features

• HDMI 2.1 and HDCP 2.3 compliant
• 40Gbps video bandwidth
• Supports video resolution up to 8K@60Hz 4:2:0 10bit, 8K@30Hz 4:4:4 10bit, 4K@120Hz 4:4:4 10bit
• VRR, FVA, ALLM supported
• Supports HDR, HDR10, HDR10+, Dolby Vision, HLG pass through
• Supports HDMI audio formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
• Built-in Equalizer, Retiming and Driver
• Advanced EDID management
• Support audio de-embedding function (output through the optical and analog port)
• Compact design for easy and flexible installation for four HDMI outputs
• HDMI daisy chain several splitters - up to 4 levels.

Specifications

• Technical
• HDMI Compliance: HDMI 2.1
• HDCP Compliance: HDCP 2.3
• Video Bandwidth: 40Gbps
• Video Resolution: Up to 8K@60Hz 4:4:4 8/10/12bit, 8K@60Hz 4:2:0 12-bit, 8K@30Hz 4:4:4 10-bit, 4K@120Hz  4:4:4 10-bit
• Audio Formats: HDMI input/output: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD Audio de-embedding output: Optical: LPCM 2/5.1 CH, Dolby Digital 2/5.1 CH, DTS 2/5.1 CH, Analog: PCM 2.0
• Colour Depth: 8-bit,10-bit,12-bit
• Colour Space: RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0
• ESD Protection: Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
•
• Connection

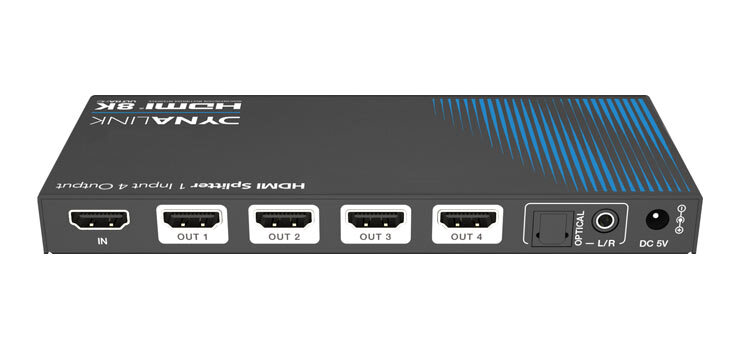

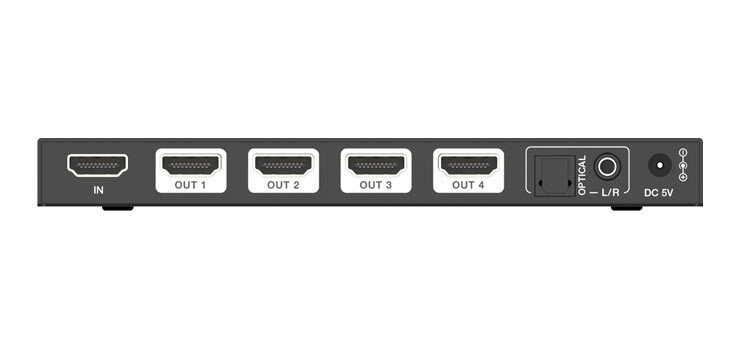

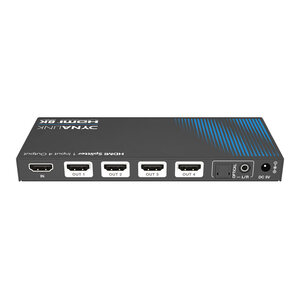

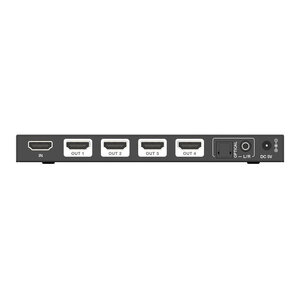

• Input Ports: 1 x HDMI IN Type A (19-pin female)
• Output Ports: 4 x HDMI OUT (Type A, 19-pin female), 1 x OPTICAL (S/PDIF), 1 x L/R (3.5mm Stereo Mini-jack)

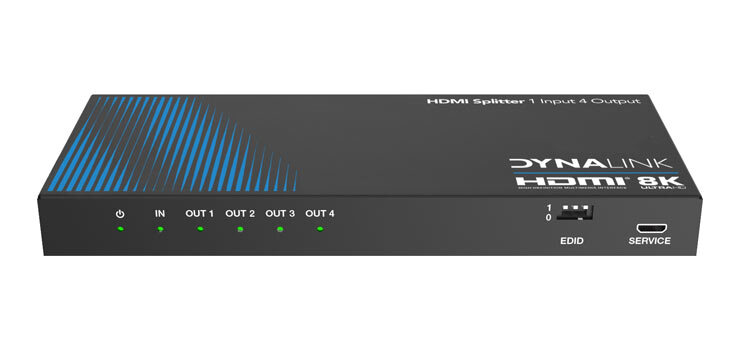

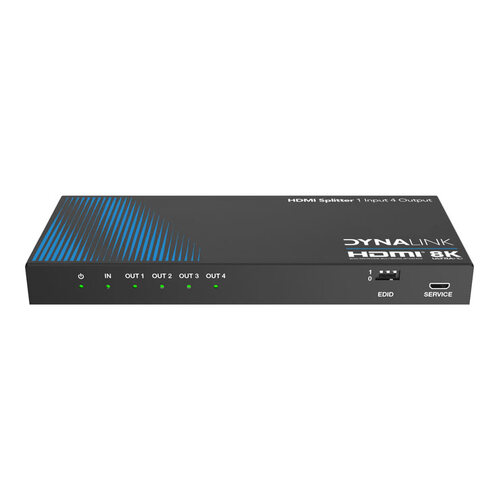

• Control: 1 x SERVICE (Micro USB, Update port)
•
• Mechanical
• Housing: Plastic Enclosure
• Dimensions: 212W x 94D x 23Hmm
• Weight: 539g
• Power Supply: 5V 2A DC
• Power Consumption: 9W (Max)
• Operation Temperature: -0°C to 40°C
• Storage Temperature: -20°C to 60°C
• Relative Humidity: 20 to 90% RH (non-condensing)

  *Specifications are subject to change without notice.
