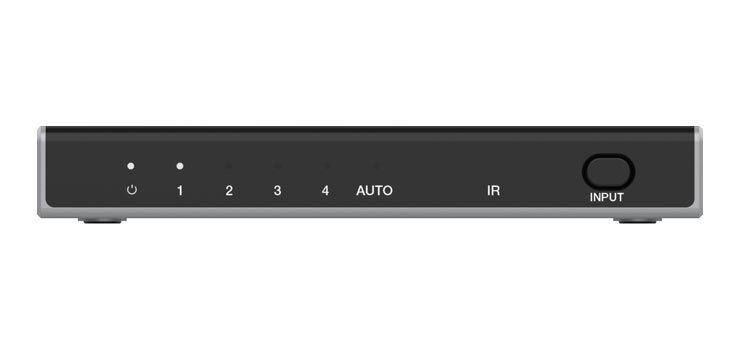

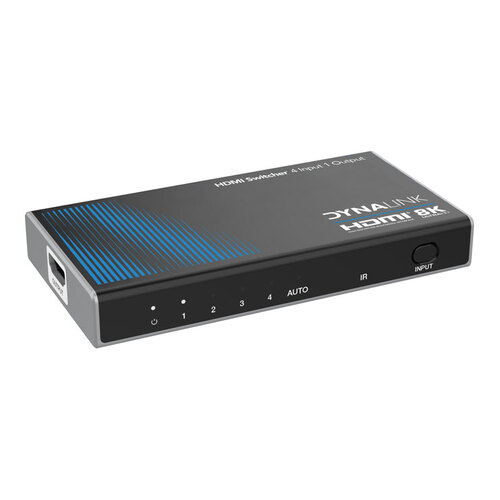

8K 48Gbps 4 Way HDMI 2.1 Switcher

4 In to 1 Out 8K HDMI Switch Box

Offering 8K @ 60Hz resolution switching, this 4 way HDMI source selector is ready for the latest high resolution AV sources. It supports video resolutions up to 8K @ 60Hz 4:4:4 and is ideal for display signage, video conference, security monitoring, home theatre and domestic or commercial AV systems.  It's also well suited to modern gaming consoles achieving 4K @ 120Hz on TVs or HDMI enabled monitors.

By using this HDMI 8K switcher, you can connect from HDMI IN ports to four HDMI source devices via individual HDMI cables, then connect from HDMI OUT port to your external monitor (such as HDMI projector, HDMI TV or HDMI ordinary display). You can switch between two sources by pressing the switch button on the top panel of the switcher or by using the included IR remote control.  Note that this switcher is not bi-directional, it is designed for two sources and a single display (2 in to 1 out). Requires USB power (USB cable included).

Box Contents
1 x 8K 4 Way HDMI Switcher
1 x Micro USB Power Cable
1 x User Manual


Features

• HDMI 2.1 and HDCP 2.3 compliant
• 48Gbps video bandwidth
• Supports resolutions up to 8K@60Hz 4:4:4 8/10/12bit, 8K@60Hz 4:2:0 12-bit, 8K@30Hz 4:4:4 10-bit, 4K@120Hz 4:4:4 10-bit
• Support HDR, HDR10, HDR10+, Dolby Vision, HLG pass through
• VRR, FVA, ALLM supported
• Supports HDMI audio formats: LPCM 7.1CH, Dolby TrueHD, and DTSHD Master Audio
• 4x1 switch output, auto switch supported
• Built-in Equalizer and Driver
• Auto EDID management
• Compact design for easy and flexible installation

Specifications

• Technical
• HDMI Compliance: HDMI 2.1
• HDCP Compliance: HDCP 2.3
• Video Bandwidth: 48Gbps
• Video Resolution: Up to 8K@60Hz 4:4:4 8/10/12bit, 8K@60Hz 4:2:0 12-bit, 8K@30Hz 4:4:4 10-bit, 4K@120Hz 4:4:4 10-bit
• Colour Depth: 8-bit,10-bit,12-bit
• Colour Space: RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0
•
• Connection
• Input Ports: 4×HDMI IN Type A (19-pin female)
• Output Ports: 1×HDMI OUT Type A (19-pin female)
•
• Mechnical
• Housing: Plastic Enclosure
• Silkscreen Colour: Black
• Dimensions (mm): 122W × 65D × 19H
• Weight: 88g
• Power Supply: 5V DC 1A (2.1mm Jack)
• Power Consumption: 1.25W (Max)
• Operation Temperature: -0°C to 40°C
• Storage Temperature: -20°C ~ 60°C
• Relative Humidity: 20~90% RH (non-condensing)

  *Specifications are subject to change without notice.
