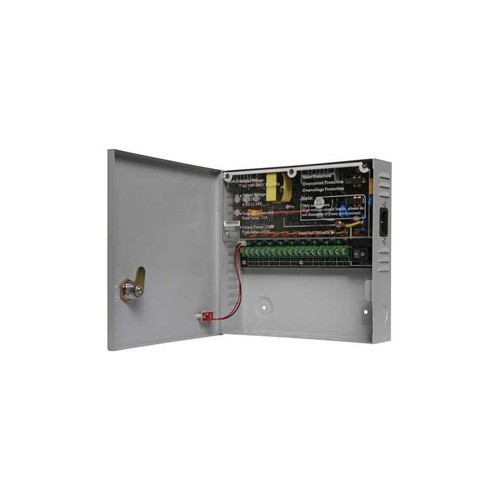

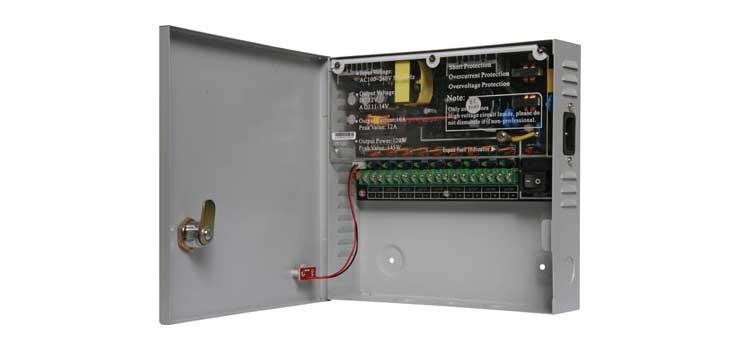

9 Way 12V DC 7.5A CCTV Power Supply

Security Accessories for Home Surveillance!

Designed for powering up to a maximum of nine 12V DC CCTV cameras.

Each output is individually fused and can be set on or off via internal jumpers.

Separate screw terminals are provided for each circuit.

Overall output voltage can be internally adjusted from 11-14V DC.

Overall total continuous load is 7.5A with a peak current of 10A.

Housed in a sturdy compact steel enclosure with lockable door.

Field wiring access is via a rear panel cutout or 3 conduit knockouts on the side.

Indoor use only.

FEATURES:

• 9 individually PTC protected outputs rated 0.8A (continuous) each.
• Short Circuit Protection
• Overcurrent Protection
• Overvoltage Protection

SPECIFICATIONS:

• Input power: 100-240V a.c. @ 50-60Hz
• Output power: 12V d.c. 10% tolerance, adjustable 11-14V d.c.
• Output current (1-9): 7.5A (90W)
• Peak output current: 10A (120W) max.
