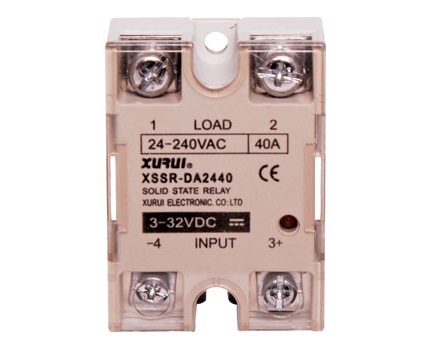

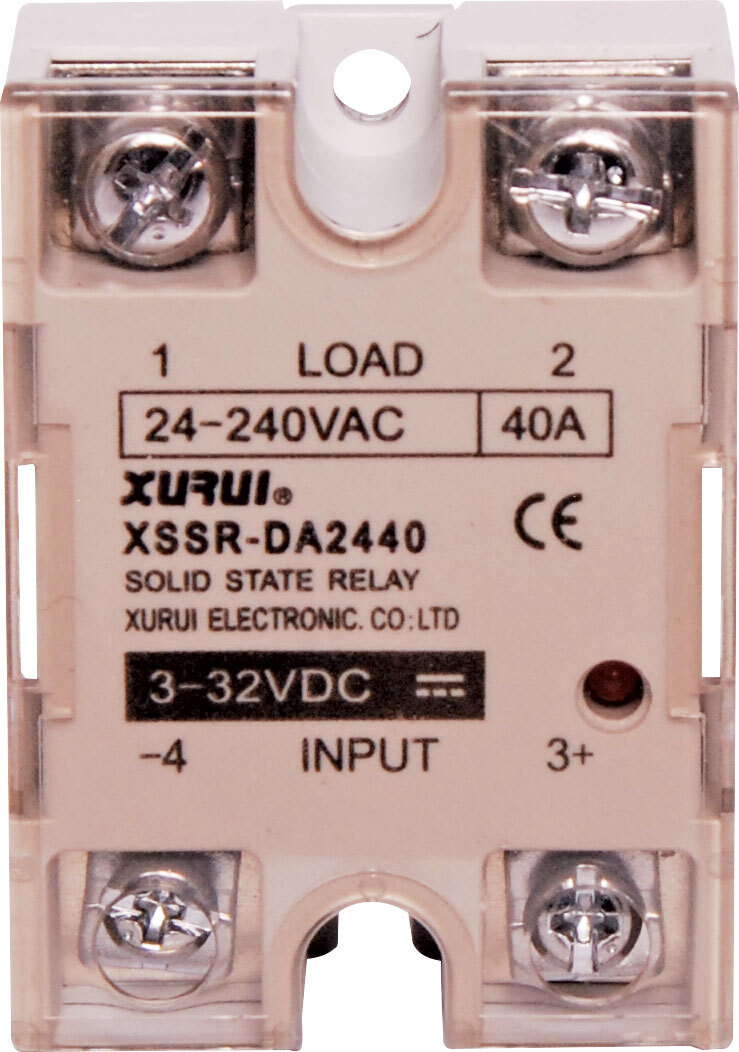

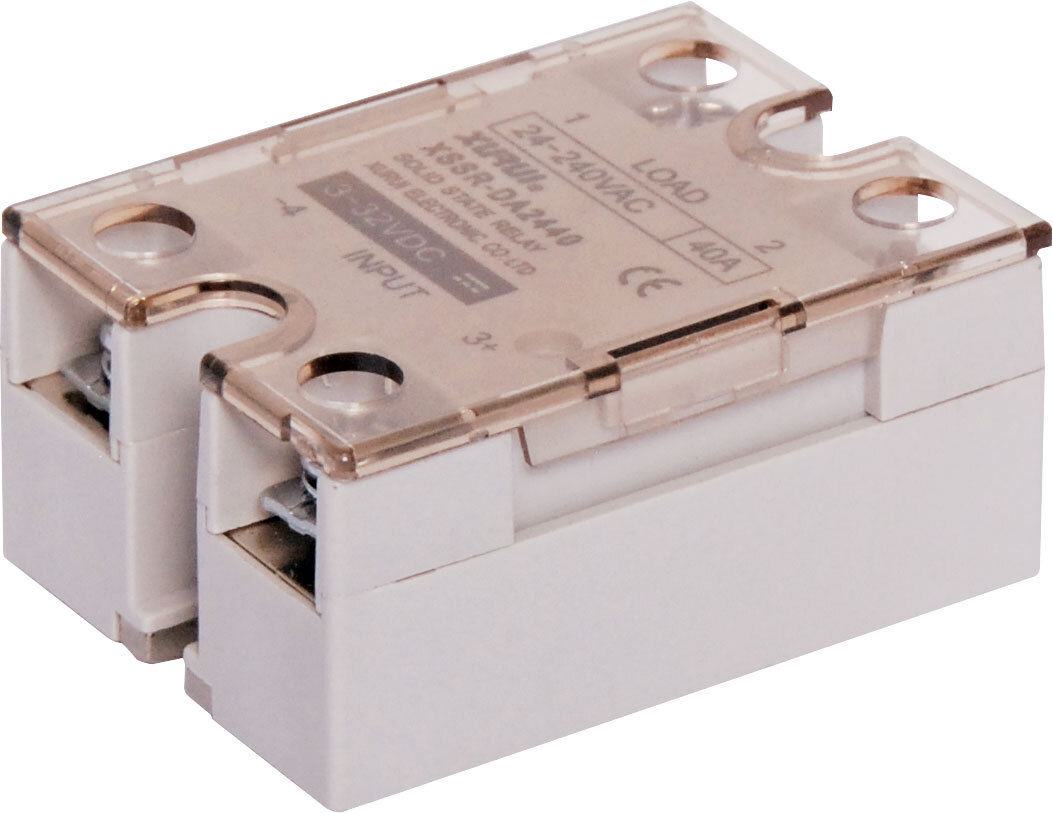

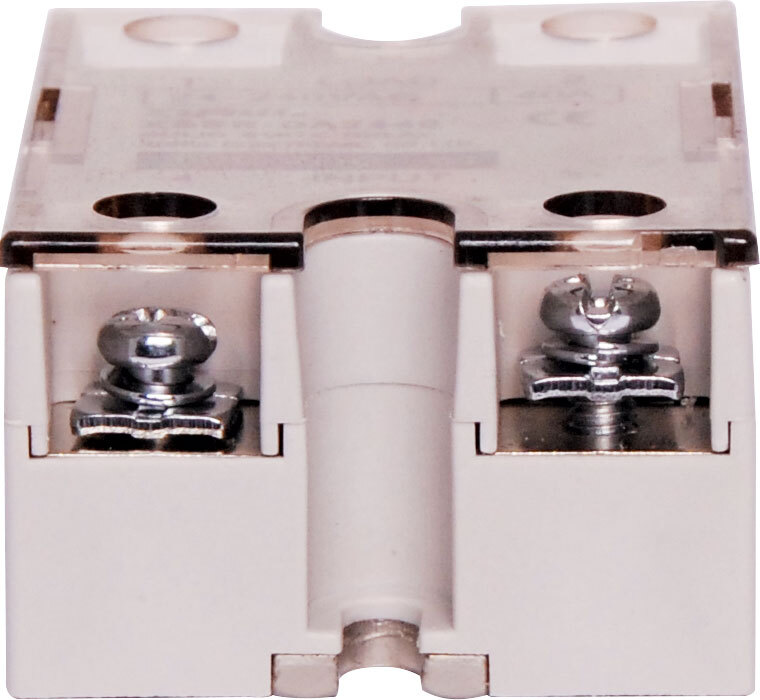

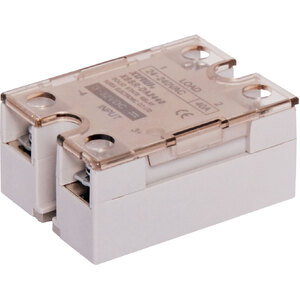

AC 40A SPST Solid State Relay

AC Solid State Relay

40A SPST relay. Solid state type. Switches AC only. 3-32V DC coil.
No moving parts and no contact arcing. Features zero voltage turn on, zero current turn off.

When connecting to mains power this must be installed by a licensed electrician.
To be installed in accordance to the latest issue of AS/NZ 3000 and by a licensed electrician as ruled in the state of installation.

• Control Voltage: 3-32V DC
• Control Current: 6-25mA
• Reverse Voltage: 32V DC
• Closing Voltage: 1V DC
• Opening Voltage: 3V DC
• Load Voltage: 24-240V AC, 75-480V AC
• Maximum Load Current: 5A-75A
• Minimum Load Current: 0.08A
• Breakover Voltage: ≤1.6VAC
• Output Leakage Current: ≤5mA
• Withstand Voltage: 2500V AC
• Insulation Resistance: >100MΩ
• Switching Time: <10mS
• Frequency Range: 50-60Hz
• Load Current Safety Factor: 50-60% resistive, 30-40% inductive
