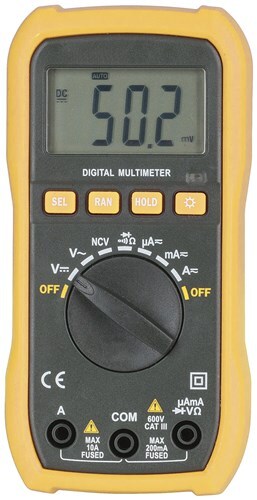

Autorange Multimeter with Non-Contact Voltage Sensor

Economy Autorange DMM with NCV

SKU: TT4590


$44.95
RRP $89.95
In Stock

Buy In Bulk & Save!
Buy 4 to 10: Pay $40.45 ea
Buy 11 to 20: Pay $36.41 ea
Buy 21 to 100: Pay $32.76 ea
Buy 101 to 500: Pay $29.49 ea




Calculate Shipping

Autorange Multimeter with Non-Contact Voltage Sensor

Economy Autorange DMM with NCV

Hobbyist multimeters provide exceptional value for money, and good features for a range of applications.

This practical multimeter measures both DC and AC voltages and currents. The default autoranging setting automatically selects the best range for your measurements. If a different range is preferred, simply switch it to manual. A built-in buzzer and LED warning light alert you to low resistance, detected voltage and live wires. In low light conditions you can activate the 10 second backlight to view measurements. Use the data hold button to lock them on screen for data capture and analysis.

Specifications

Length : 144mm
Width : 70mm
Height : 32mm
Weight : 200g
Meter Input Impedence : 10MΩ
Led Indicator Display : false
Measures diode : true
Measures transistor : false
Data Hold : true
Safety Rating Cat : Cat III
Safety Rating Max Volt : 600V
Display Type : LCD
Display Backlight : LED Backlit
Probe Type : High Grade Meter Probes
Connection to meter : Shrouded 4mm Banana Plug
Probe rating voltage : 600V
Probe safety rating : Cat II
Continuity indicator : On Panel
Continuity buzzer : true
Packaged Volume : 2.05l
Packaged Weight : 0.33kg
Packaged Length : 25.5cm
Packaged Width : 14.9cm
Packaged Height : 5.4cm
Size / Shape : AAA
Battery quantity : 2pc
Batteries included : true
Batteries can be replaced by user : true
Compartment location : Back
How is battery compartment kept closed : Screw
DC Voltage Ranges : 200mV, 2V, 20V, 600V
DC Voltage Accuracy : ±0.8%
AC Voltage Ranges : 200µV, 2mV, 20mV, 200V, 600V
AC Voltage Accuracy : ±1%
AC Current Ranges : 200µA, 2mA, 20mA, 200mA, 10A
AC Current Accuracy : ±3%
DC Current Ranges : 200µA, 2mA, 20mA, 200mA, 10A
DC Current Accuracy : ±3%
Resistance Ranges : 200Ω, 2kΩ, 20kΩ, 200kΩ, 2MΩ
Resistance Accuracy : ±1.5%
Count Maximum Reading : 2000 count
True RMS : false
Autorange : true
Optical Sensor : false
Measures duty cycle : false
Measures dwell : false
Input Protection Fuse : 500mA, 10A
Foldout Stand : true
Casing : Plastic
Carry Case Included : false
Battery used for : Main Product
Batteries can be replaced : true
Size / Shape : AAA

CLICK HERE TO SEE OTHER MULTIMETERS IN OUR RANGE

3 Month Warranty

SKU TT4590
Barcode #
Brand Aus Electronics Direct
Shipping Weight 0.3000kg
Shipping Width 0.300m
Shipping Height 0.050m
Shipping Length 0.250m
Shipping Cubic 0.003750000m3
Unit Of Measure ea
Assembled Length 0.700m
Assembled Height 0.240m
Assembled Width 0.126m
