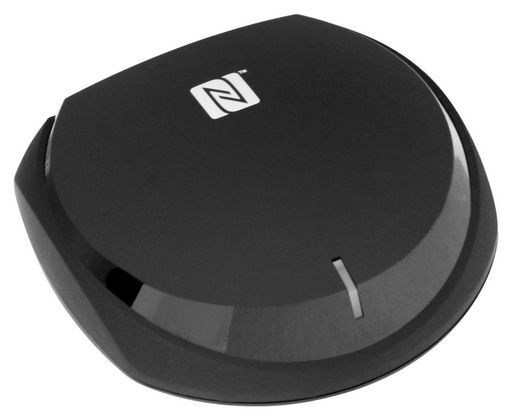

BLUETOOTH® STEREO RECEIVER WITH NFC

Wireless BLUETOOTH® Stereo Receiver

Bluetooth V3.0 Stereo EDR A2DP Receiver With NFC

NFC - Near Field Communications

NFC offers an extremely simple setup. Android Beam software uses NFC to complete the steps of enabling, pairing and establishing a Bluetooth connection. Simply tap your NFC enabled device on this unit and you are paired.

Simply pair your Bluetooth enabled device–such as your smart phone, iPad, Android tablet and connect to your AV receiver, multimedia speakers and more with this bluebooth receiver. With the inclusion of the highly renowned apt-X codec, this receiver allows you to enjoy wireless Bluetooth audio quality indistinguishable from wired, with an impressive dynamic range. Featuring a high-quality DAC that helps clean up poor audio that is often found in downloaded music and videos. Also SBC compatible for other Bluetooth devices using the A2DP standard.

The receiver outputs audio through both analogue and digital outputs simultaneously! Not only does this make it great for hooking up to your high-end amplifier or receiver using the high quality digital link, but you can also plug in another pair of powered speakers at the same time! This allows you to listen through either system without the need to connect to another Bluetooth device!

A Signal-to-Noise Ratio (SNR) of more than 100dB, in combination with 2Vrms output at maximum volume means the receiver can not only compensate for low volume sources, but gives you a wider range of control from your mobile device without losing audio quality or increased background hiss you get from other devices on the market! Basically keep the volume on your amp or speakers low for reduced noise, and control the audio level directly from your phone or tablet—perfect for audiophiles!


• NFC Quick Link Support for Auto-Pairing.
• Supports pairing with up to 8 devices
• BlueTooth® V3.0+EDR A2DP
• Apt-X Lossless and SBC Codec Support
• Up to 48KHz 16 Bit stereo. 20-20KHz 100dB

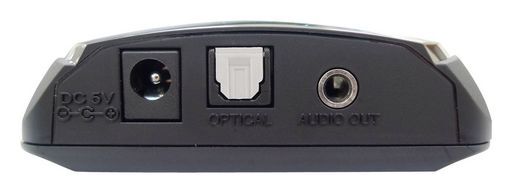

• Dual simultaneous outputs: Digital and Analogue:
• S/PDIF Optical output: For pure digital audio connection, ideal for connecting to AV Receivers
• 3.5mm stereo output: For connection to any active speaker system or amplifier, headphones, etc.
• Toslink Optical Output (Requires S/PDIF lead)
• 3.5mm output (M-M & M-RCA lead supplied)
• 5Vdc power pack supplied
• Status/connected LED Indicator
• Compact 75x70x22mm






•
•
• Input Spec
  DC Power 5V/0.6A,5.5X2.5mm,center positive
  Output Audio R/L 3.5mm
  TOSLINK
  Control Auto Pairing
  Bluetooth Profile A2DP
  aptX® codec Supported
  SBC codec Supported
  Devices memorized 8
  Electric Performance – RF
  Frequency 2402~2480MHz
  Sensitivity -84dBm
  Maximum received signal at 0.1% BER >= -10dBm
  Maximum level of intermodulation interference >= -30dBm
  Spurious output level -156dBm/Hz
  Electrical Performance—audio R/L
  Audio Output Level (nominal) 2 ± 10%Vrms
  Frequency response 20~20 KHz ± 3 dB
  Channel Separation Audio R/L - 70 dB
  SNR (nominal, Audio RL) >=90dB
  THD(nominal, Audio RL) <0.05%
  Weight(g) 240g
  Audio cable 3.5mm male to 3.5mm male 1.8M
  3.5mm female to RCA male 15cm
  Adaptor 5V 0.6A
