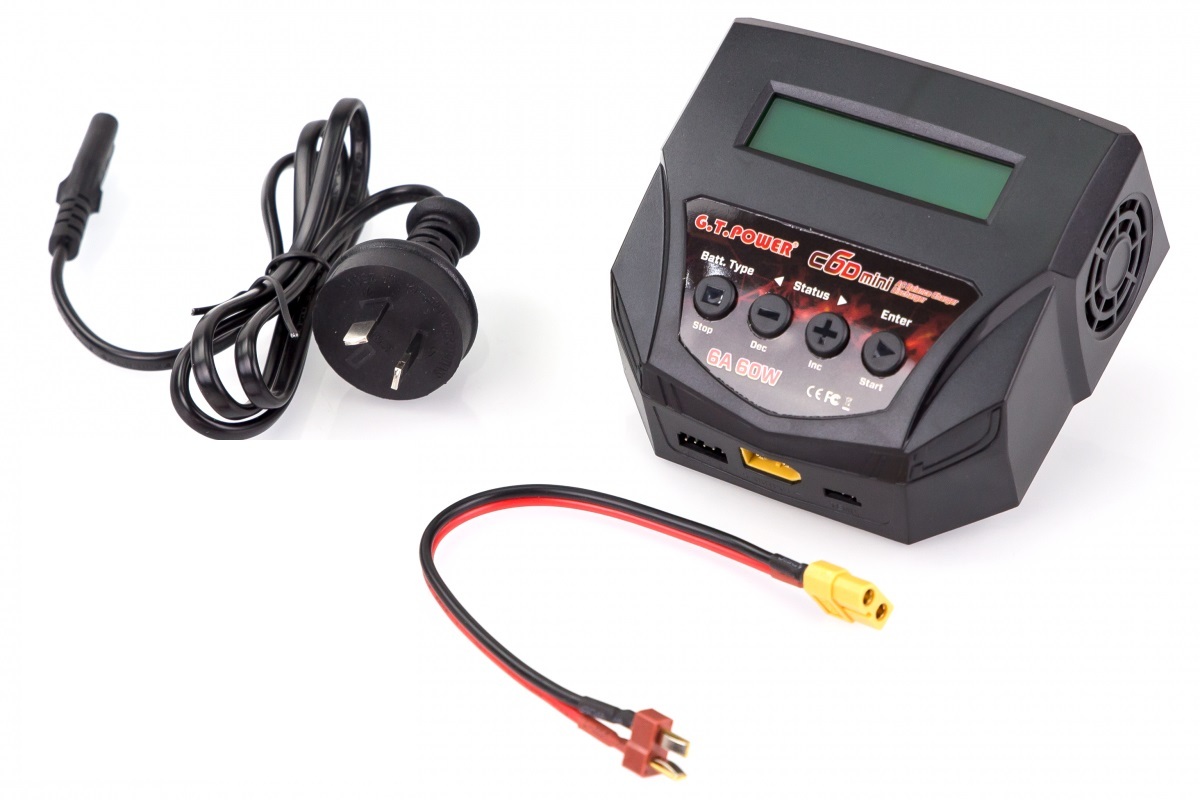

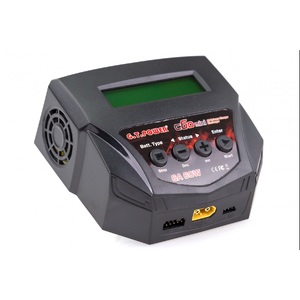

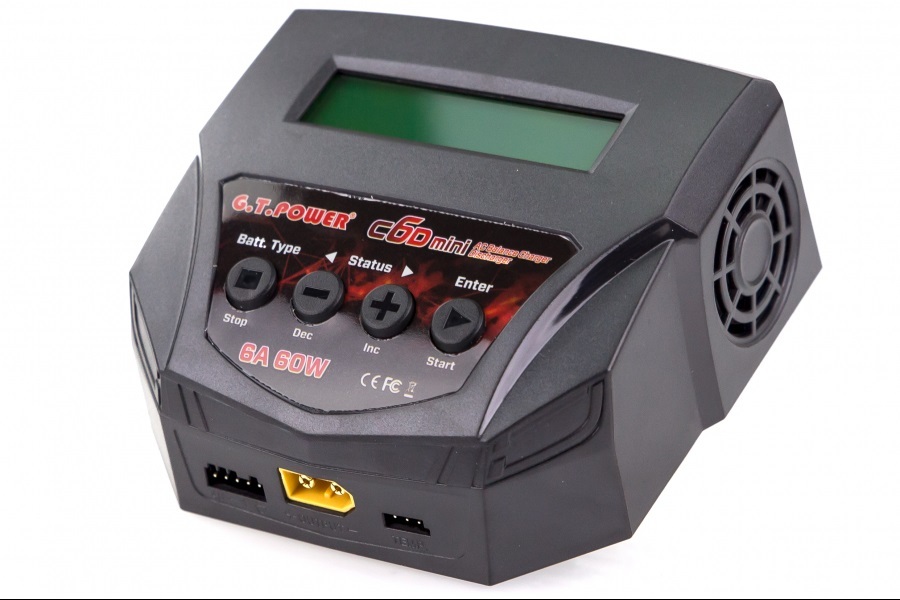

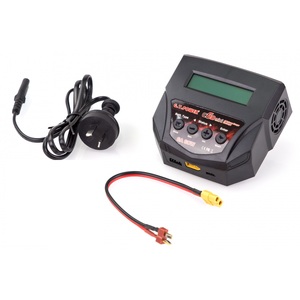

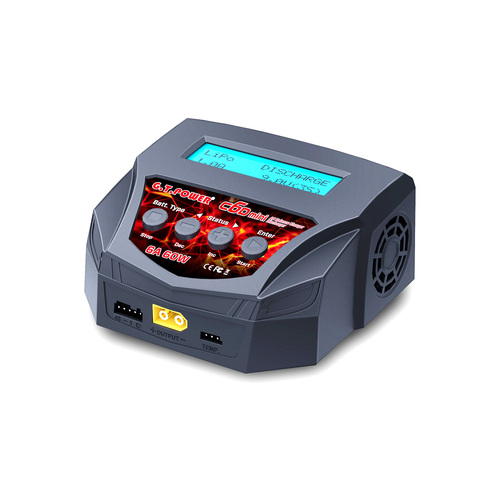

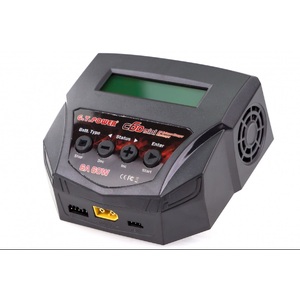

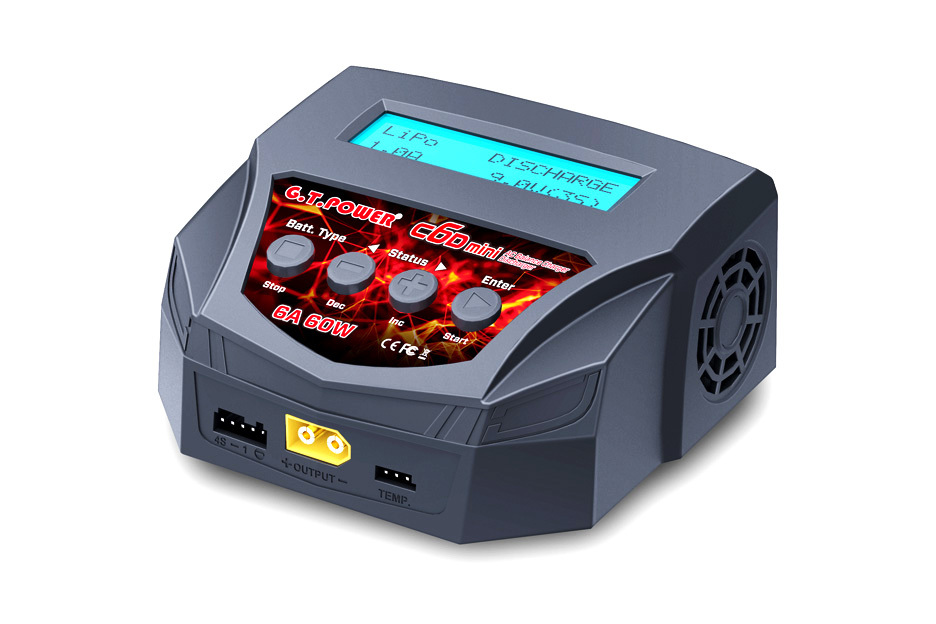

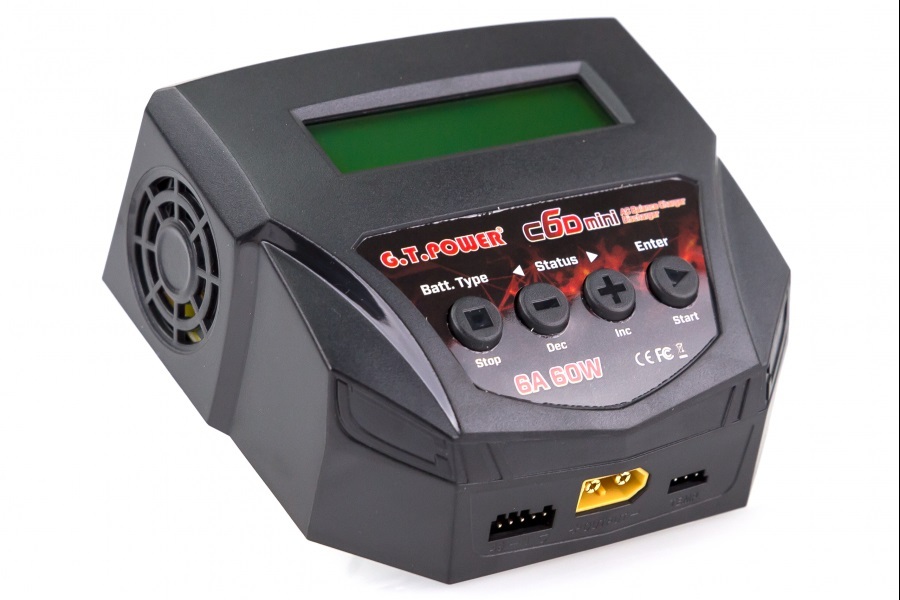

C6D Mini 100W AC/DC Multi-function Balance Battery Charger

Compact Intelligent Charger with 10A Charge rate

The GT Power C6D Mini AC charger is an intelligent charger/discharger that is at the forefront of technology and easy to read display.  It features a rapid charge/discharge with a built-in microprocessor and new software to make charging very easy.  Supporting different types of batteries with easy operation makes this a must-have charger for any application.  The built-in memory for different batteries makes set up fast and easy to start.  Control and set up are done on the easy-to-read LCD display.

The C6DMini has an “auto” function when charging/discharging batteries that protects the cells from overcharging.  The C6D Mini charger has a maximum output power of 100W (AC).  It can charge up to 8 cells of Nicd/NiMh and up to 4S  in LiPo/LiFe/LiIon/LiHV at one time with a max current of 10.0A.  The charger has a built-in cooling fan to keep the electronics cool and long-lasting.

Features:

• Optimized operating software

• High-power and high-performance circuitry

• Individual voltage balancer for Lithium batteries built-in.

• Individual cells balanced on discharge

• Accepts various types of Lithium batteries

• Lithium battery “Fast” and “Storage” modes

• Data Storage/quick load function

• Cyclic charging/discharging

Safety Features:
Delta-Peak Detection: Stops charging when a full charge is detected on NiCd/NiMh batteries.
Auto-charge Limit: This allows the user to set the limit of a charge current to avoid high current charging.
Capacity Limit: When the charging capacity exceeds the limit the charger will shut down.
Temperature Limit: The charger will shut down if the internal sensors reach an unsafe range.

• Specifications:

• Power: AC 100-240V

• Charger Current: 0.1-10.0A

• Dis-charger Current: 0.1-2A

• Circuit Power: 100W (AC)

• LiPo/LiHv/LiFe/LiLon: 2-4 cells

• NiMh/NiCd: 6-8 Cells

• Pb(Lead Acid): 6-12V

• Size: 115mm x 112mm x 55mm

• Weight: 302g
