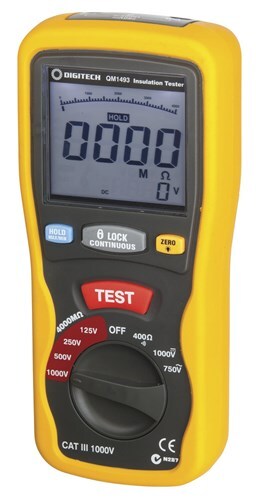

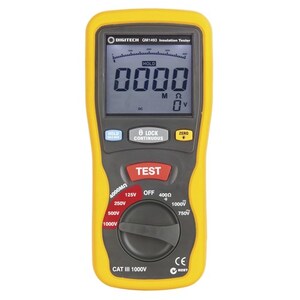

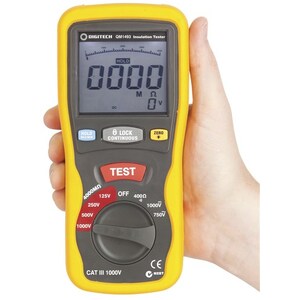

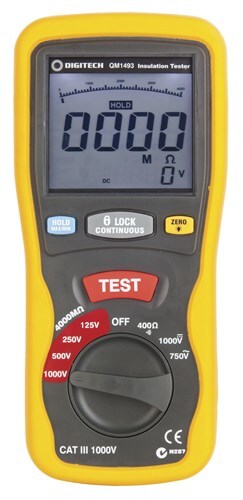

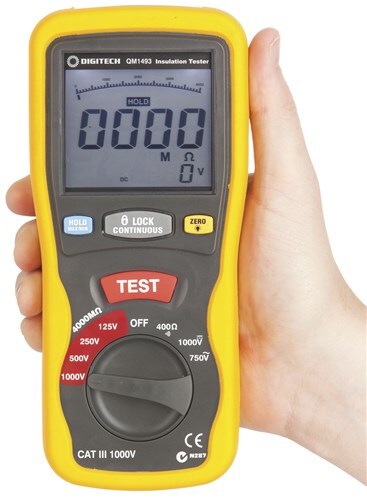

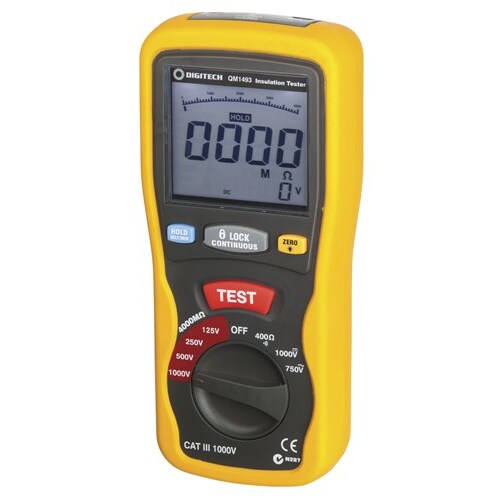

Cat III Insulation Tester Multimeter
High Voltage Insulation Tester DMM
SKU: TT4570
$329.00
RRP $499.00
In Stock
Cat III Insulation Tester Multimeter
High Voltage Insulation Tester DMM
Commonly known as a megger and suitable for high voltage insulation testing up to 4 gigaohms at up to 1000V. It also has AC/DC voltage and low resistance multimeter functions. Moulded storage case and holster included.
Features:
• Category: Cat IV 600V / Cat III 1000V
• Display: 4000 count
• Basic accuracy: 1%
• Insulation test: 4Gohms @ 125 - 1000V
• Ave/RMS: Ave
• Analogue/digital display
• Data hold
• Max/min
• Moulded case
• Backlit LCD
• Auto power-off
Specifications
| Insulation Resistance Ranges : 4MΩ, 40MΩ, 400MΩ |
| Accuracy : ±(2%+10) to ±(5%+5) depending on scale. Refer to manual for full details.% |
| Test Voltage : 125V, 250V, 500V, 1000V |
| Test Current : 1mA |
| Resistance Ranges : 40Ω, 400Ω |
| Resistance Accuracy : ±(1.2%+3) |
| AC Voltage Ranges : 750V |
| AC Voltage Accuracy : ±(1.2%+10) |
| DC Voltage Ranges : 1000V |
| DC Voltage Accuracy : ±(0.8%+3) |
| Records Minimum : true |
| Records Maximum : true |
| Data Hold : true |
| Digits Displayed : 4digit |
| Display Type : LCD |
| Display Backlight : LED Backlit |
| Bargraph : true |
| Safety Rating Cat : Cat III |
| Safety Rating Max Volt : 1000V |
| Count Maximum Reading : 4000 count |
| Autorange : true |
| Length : 200mm |
| Width : 92mm |
| Depth : 50mm |
| Size / Shape : AA |
| Battery quantity : 6pc |
| Batteries included : true |
| Batteries can be replaced by user : true |
| Compartment location : Back |
| Packaged Volume : 5.76l |
| Packaged Weight : 1.47kg |
| Packaged Length : 30.9cm |
| Packaged Width : 23.9cm |
| Packaged Height : 7.8cm |
| Probe rating voltage : 1000V |
| Probe safety rating : Cat III |
| Meter Input Impedence : 0Ω |
| Input Protection Fuse : 15mA |
| Carry Case Included : true |
3 Month Warranty
