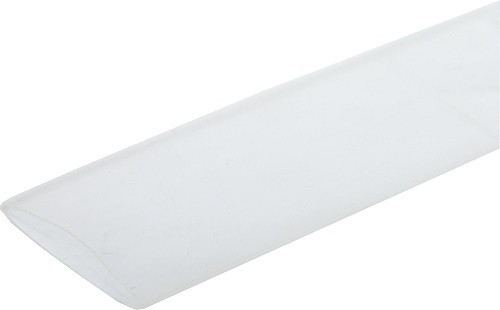

Clear 20mm Heat Shrink Tubing 1.2m Length

Additional environmental protection for cable joins etc.

This heat shrink is a shrinkable plastic tube used to insulate wires, providing abrasion resistance and environmental protection for stranded and solid wire conductors, connections, joints and terminals in electrical work. Our military grade flexible tubing is suitable for insulation, colour coding, strain relief and protection in electrical and electronic applications. Continuous temperature rating is -55°C to 135°C and up to 300°C for short durations. The shrink ratio is 2:1 and the tubing meets stringent requirements of MIL-I-23053/5 class one.

Nominal Ø: 20mm (31.5mm across when flattened)
Ø when shrunk: 10mm


Features

• 2:1 shrink ratio.
• Flexible and hard wearing material.
• Provides additional environmental protection for cable joins, connectors and sheaths.
• Meets MIL-I-23053/5 class one.
• -55°C to 135°C continuous temperature rating.
• 300°C short duration temperature rating.
