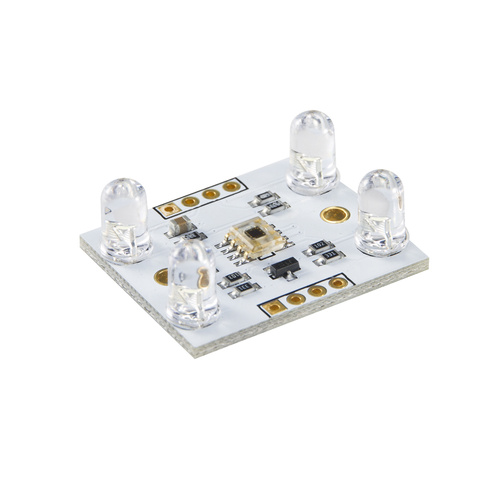

Colour Sensing Module for Arduino Projects

Add a colour detection module to your arduino project

This programmable module senses colour by using an array of photodetectors, each act as a filter for Red, Green, Blue and Clear colours. When colour is detected, the module outputs data in form of a square wave with frequency directly proportional to light intensity. Digital inputs and digital output on the module interfaces with a microcontroller or other logic circuitry. Users can calculate colour of the light by RGB+Clear output values.

Sensor Chip TCS3200
High resolution conversion of Light Intensity to Frequency
Programmable Colour and Full-Scale Output Frequency
Single-Supply Operation (2.7 V to 5.5 V)
Power Down Feature
Low-Profile Surface-Mount Package
21 x 28mm


Please download above PDF for Wiring instructions and Sample Code
