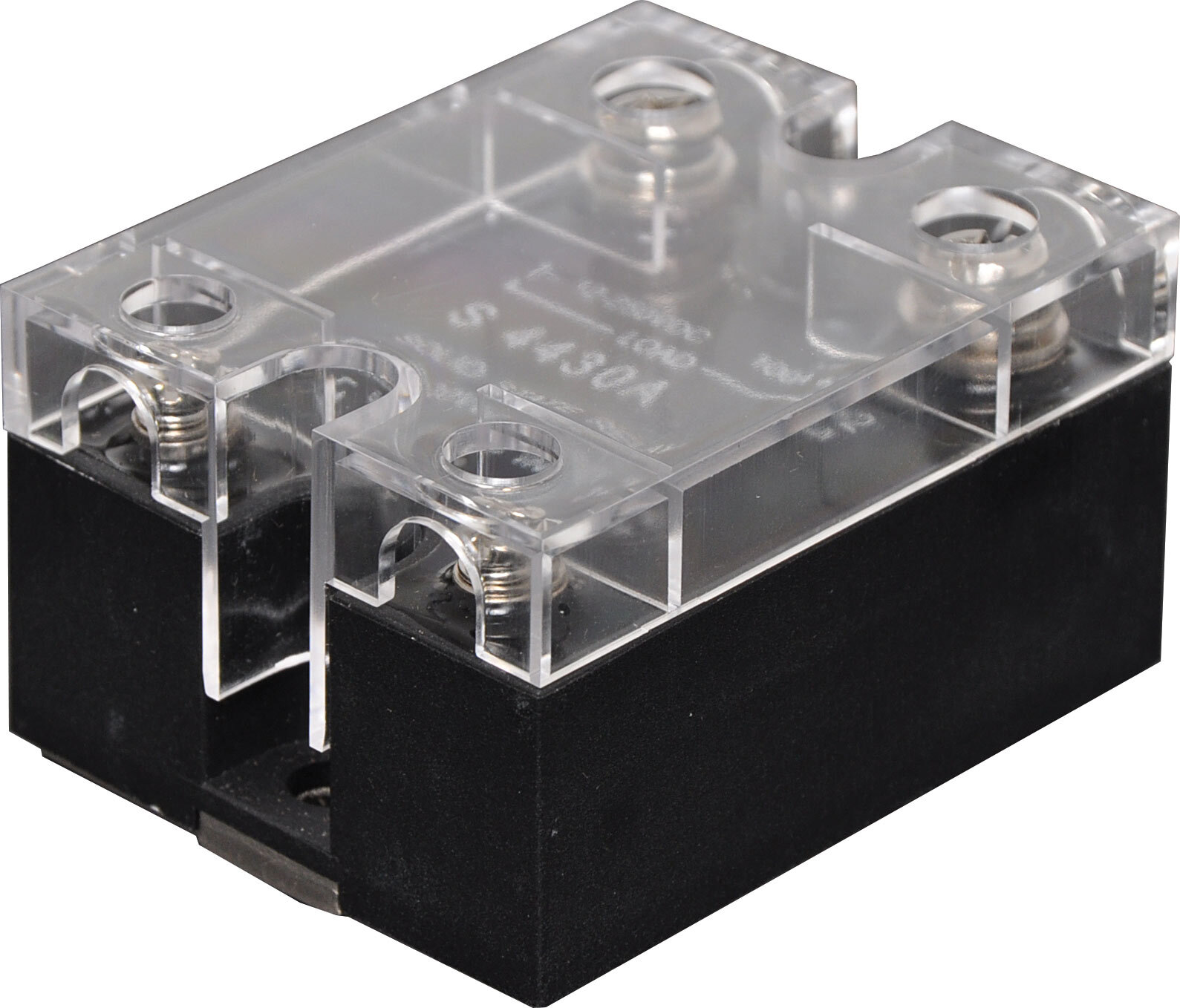

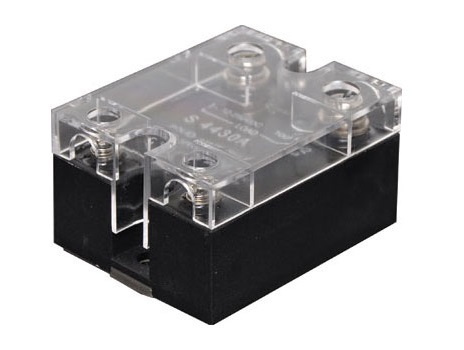

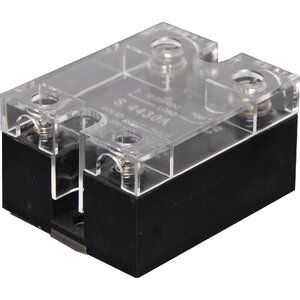

DC 100A SPST Solid State Relay

DC Solid State Relay

100A SPST relay. Solid state type. Switches AC only. 5-30V DC coil.
No moving parts and no contact arcing. Features zero voltage turn on, zero current turn off.

When connecting to mains power this must be installed by a licensed electrician.
To be installed in accordance to the latest issue of AS/NZ 3000 and by a licensed electrician as ruled in the state of installation.

• Control Voltage: 5-30V DC
• Control Current: 4-25mA
• Reverse Voltage: 30V DC
• Closing Voltage: 1.5V DC
• Opening Voltage: 3V DC
• Load Voltage: 12-250V DC
• Maximum Load Current: 10A-120A
• Minimum Load Current: 0.08A
• Breakover Voltage: ≤2V DC
• Output Leakage Current: ≤1mA
• Withstand Voltage: >2500V AC
• Insulation Resistance: >100MΩ
• Switching Time: <5mS
• Load Current Safety Factor: 40-50% resistive, 20-30% inductive

  *Specifications are subject to change without notice.
