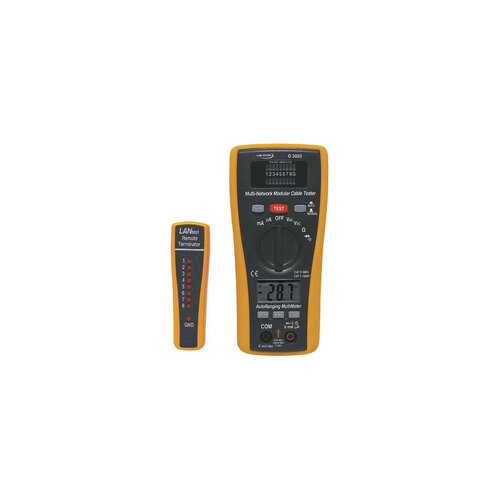

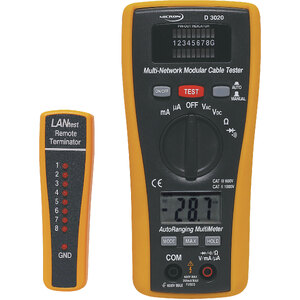

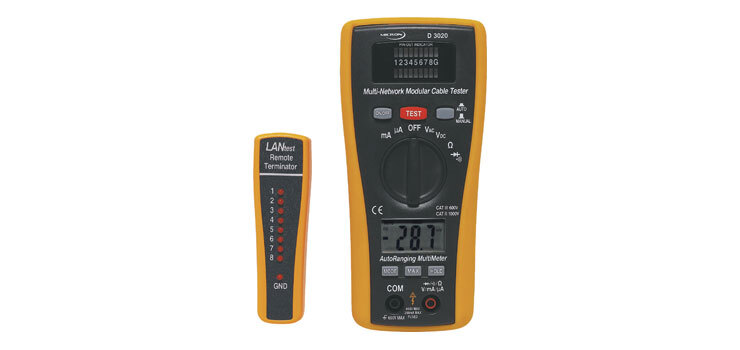

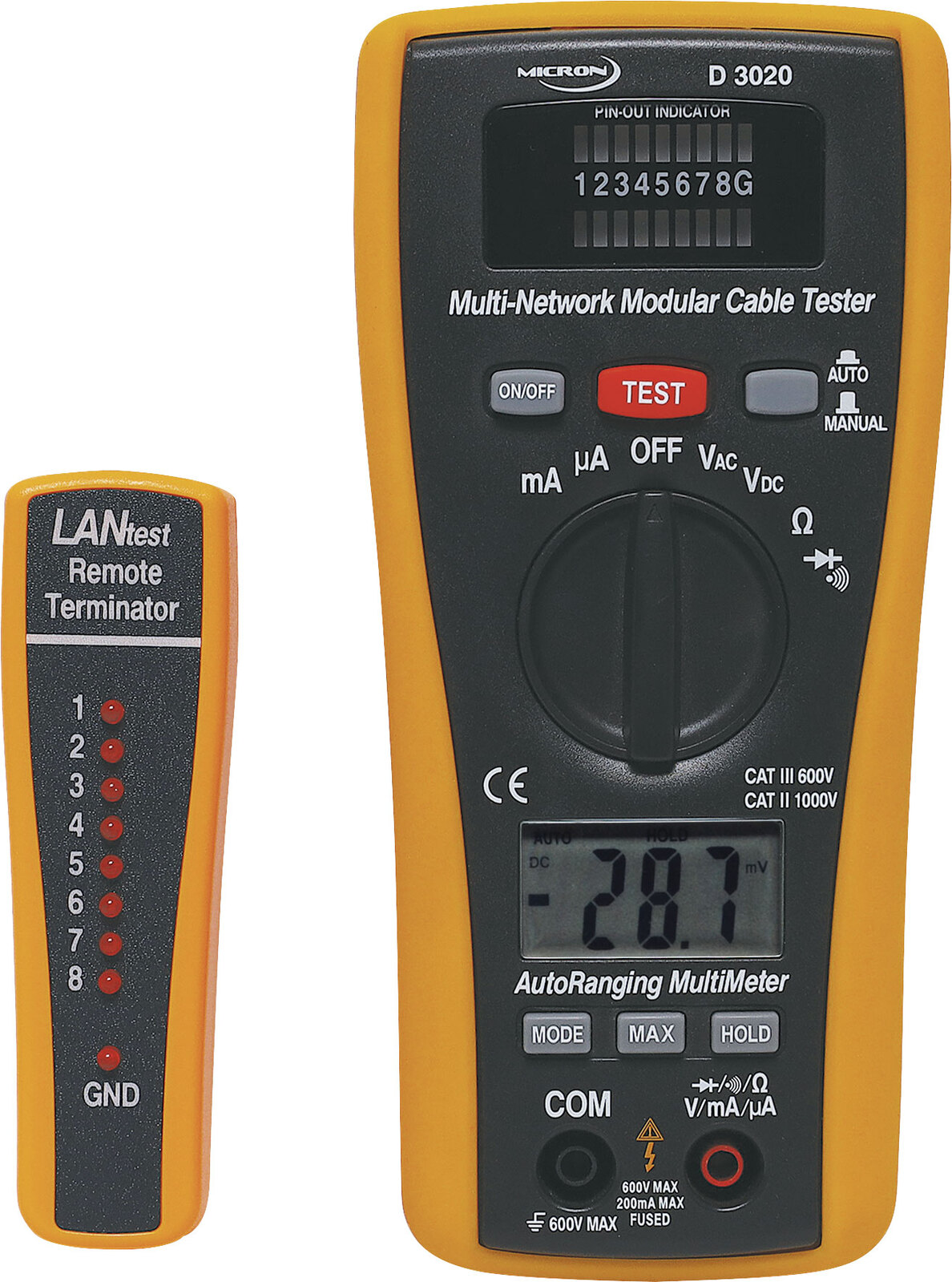

Digital Multimeter with LAN Cable Tester

Multimeter and Network Cable Tester in One

Includes all the features of a standard digital multimeter with the addition of a LAN tester. This is the perfect ‘all-in-one’ solution for network installers & IT technicians. The multimeter is an auto ranging design measuring current, voltage & resistance. Includes a max reading recall function, plus data hold. The LAN tester features dual RJ45 sockets on top for quick testing of ethernet patch leads. A remote terminator permits testing of installed cables in buildings & patch panels. The LAN tester quickly confirms the integrity of each conductor by way of the LED indicators. Suitable for both RJ45/RJ11 & BNC coaxial cabling (adaptor leads included). Supplied with rubber holster, carry case, network adaptors and high quality silicon rubber test probes.

Note: Batteries included.


Features

• Auto-ranging multimeter
• Will test 10Base-T, 10Base-2, RJ45/11, 258A, TIA 568A/568B and Token Ring
• Includes RJ & BNC network lead adaptors
• Auto power off
• Supplied with test probe leads & carry case
• Battery included
• Cat II 1000V & Cat III 600V

Specification:

• DC voltage: 200mV, 2V, 20V, 200V, 600V
• AC voltage:2V, 20V, 200V, 600V
• DC current: 200µA, 2000µA, 20mA, 200mA
• AC current: 200µA, 2000µA, 20mA, 200mA
• Resistance: 200, 2k, 20k, 200k, 2M, 20M Ohm
• Continuity: < 150 Ohm, Audible tone
• Diode test: 1mA max
• Display: 3.5 digit LCD, 2000 count, backlit
• Dimensions: ˜ 75W x 44D x 162H mm (excluding remote terminator)

  *Specifications are subject to change without notice.
