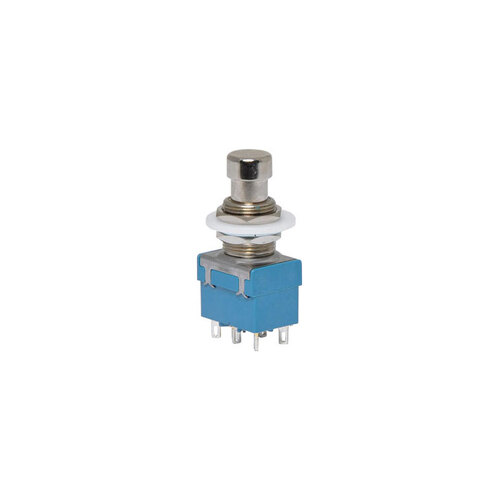

DPDT Alternate Footpad Switch

Push Button Switches for your Electronic Projects!

APPLICATIONS:

• Gaming: flight simulation
  Home appliances
  Floor care appliances
  Industrial controls
  Medical and dental
  Foot switch for guitar and audio equipment

SPECIFICATIONS:

• Contact Form: DPDT
• Double Pole Double Throw
• Switch Function: ON-ON
• Ratings: 4A @ 125VAC, 2A @ 250VAC
• 6-pin solder lug
• Metal pushbutton switch (0.40"/10mm diameter)
• Electrical life: 20,000 make and break cycles
• Body color: Black
• Stomp switch, foot switch Switch Function: ON-ON
• Maximum Current Rating (A): 4
• Type: Push Button
• Voltage Rating (AC): 250
• Actuator Type: Round Button
• Color - Actuator/Cap: Chrome
• Number of Positions: 2
• Mounting Style: Panel
• Termination Style: Solderable Lug
• Number of Pins: 6

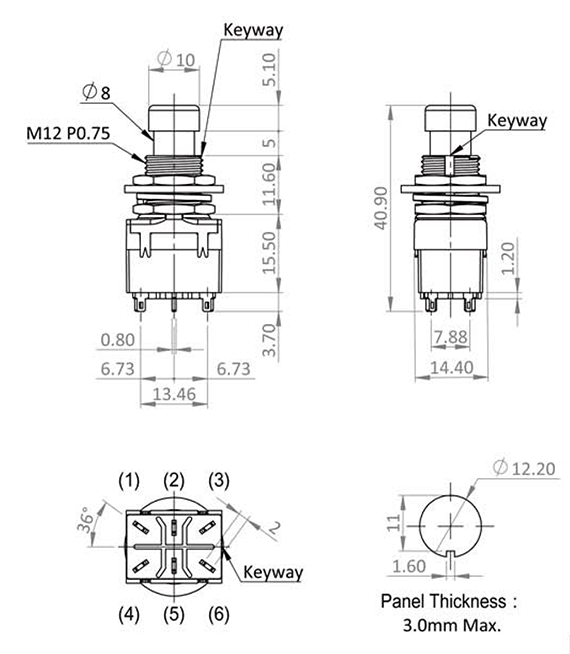

• Length (inch): 0.89
• Width (inch): 0.71
• Depth (inch): 0.75
• Height (inch): 0.46
• Actuator Length (inch): 0.4
• Lead Spacing A (inch): 0.35
• Lead Spacing B (inch): 0.35
• Features: Stomp Switch
• Maximum Contact Resistance: 50 mΩ
• Minimum Insulation Resistance: 100 MΩ
• Dielectric Strength: 1000 VAC
• Electrical Life: 20,000 operations
• Maximum Current Rating: 4
