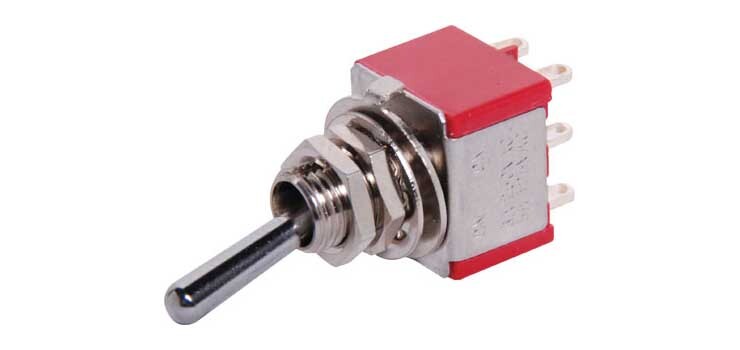

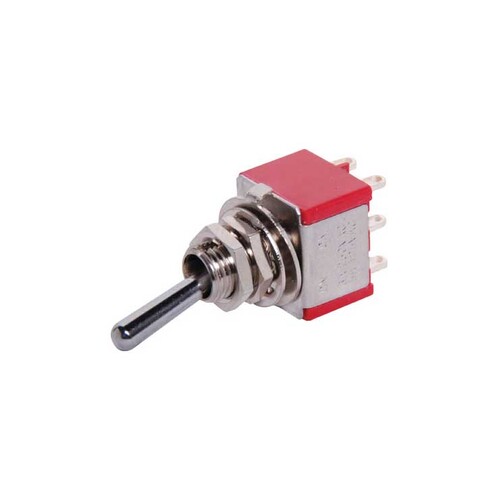

DPDT Cen Off Mom/Lock Solder Tail Mini Toggle Switch
Toggle Switches for your Electronics Projects!
SKU: AC3216
$4.95
RRP $9.95
In Stock
DPDT Cen Off Mom/Lock Solder Tail Mini Toggle Switch
Toggle Switches for your Electronics Projects!
SPECIFICATIONS:
- Contact Rating: 2A @ 250V AC or 28V DC resistive load
- Electrical Life: 50,000 cycles at full load
- Contact Resistance: 10m Ohm max. initial at 24V DC @ 100mA
- Insulation Resistance: 1,000 M Ohm min.
- Dielectric Strength: 1000V RMS at Sea Level
- Operating Temperature: -30°C to 85°C
- Bushing: Nickel Plated Brass
- Case: Melamine or Diallyl Phthalate (DAP)
- Housing: Stainless Steel
- Contact Material: Gold Plated Brass
- End Contact: Coin Silver, Silver Plated
- End Terminal: Silver Plated Brass
- Centre Contact & Terminal: Silver Plated Brass
| SKU | AC3216 |
| Barcode # | 9321758027110 |
| Shipping Weight | 0.0200kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.030m |
| Shipping Length | 0.050m |
| Shipping Cubic | 0.000150000m3 |
| Unit Of Measure | ea |
