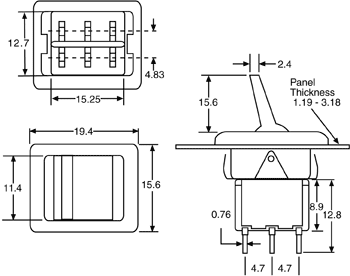

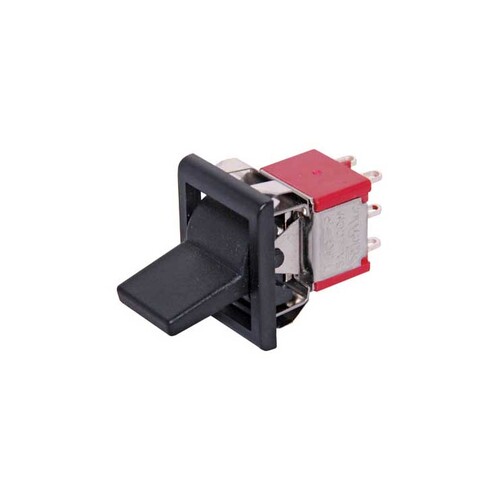

DPDT Solder Tail Mini Paddle Switch

Toggle Switches for your Electronics Projects!

SPECIFICATIONS:

• Contact Rating: 2A @ 250V AC or 28V DC resistive load
• Electrical Life: 50,000 cycles at full load
• Contact Resistance: 10m Ohm max. initial at 24V DC @ 100mA
• Insulation Resistance: 1,000 M Ohm min.
• Dielectric Strength: 1000V RMS at Sea Level
• Operating Temperature: -30°C to 85°C
• Bushing: Nickel Plated Brass
• Case: Melamine or Diallyl Phthalate (DAP)
• Housing: Stainless Steel
• Contact Material: Gold Plated Brass
• End Contact: Coin Silver, Silver Plated
• End Terminal: Silver Plated Brass
• Centre Contact & Terminal: Silver Plated Brass
