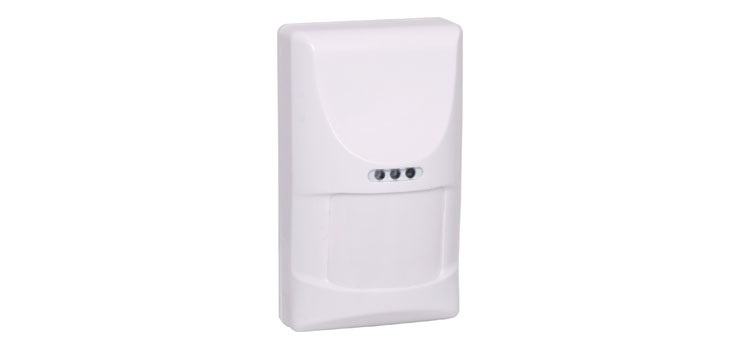

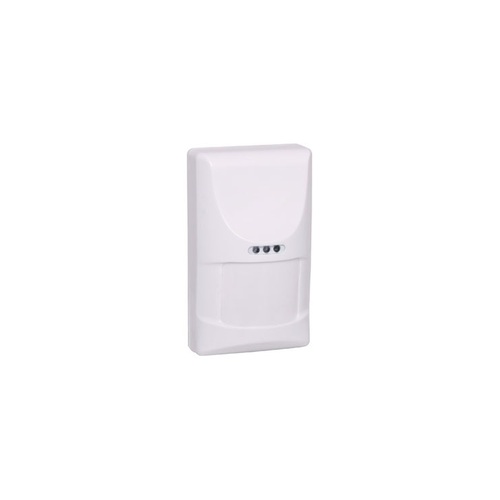

Economy PIR Detector Standard Lens

Alarm Accessories for Home Security!

These compact, easy to install, passive infra red detectors offer excellent movement detection for alarm systems at an affordable price.

They feature NC or NO contact output (30V DC @ 0.2A max), 2/3 selectable pulse count and 12m detection range.

An internal tamper switch ensures units cannot be deactivated by intruders.

FEATURES:

• Includes swivel wall bracket
• Low standby current - only 5mA
• NC/NO alarm contacts
• 12x12m 110° detection range
• 9-16V DC operation
• 2/3 selectable pulse count
• Walk test LED
• Compact size, 109x65x46mm

SPECIFICATIONS:

• Infrared Sensor: Dual element
• Power supply: 9-16V DC (12V DC Typical)
• Detection range: 12 x 12 Meter 110
• Current Drain: NC:5mA, NO 15mA@12V DC
• Alarm Output: NC/NO 30V DC 200mA
• Alarm Period: 1.5-2.5 sec
• Pulse count: 2/3 Selectable
• Tamper Switch: NC
• Walk Test LED: Red LED, Can be disabled
• RFI Immunity: Ave:20V/m (10-1.000MHz)
• Detection Speed: 0.3-1.5m/sec
• Mounting Height: 2.2-2.4 meter Suggested 2.3 meters
• Humidity: 95% Rh
• Temperature: -20°C to 60°
• Dimensions: 109 x 65 x 4mm
