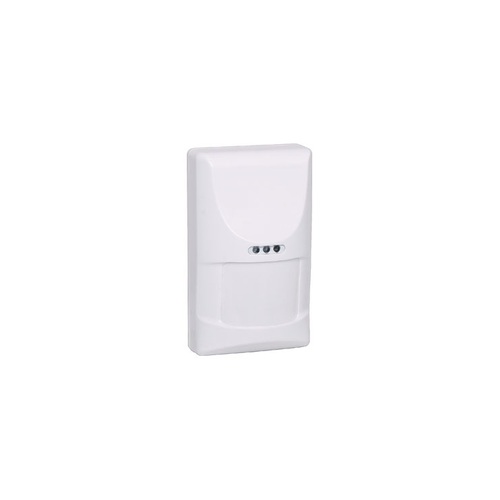

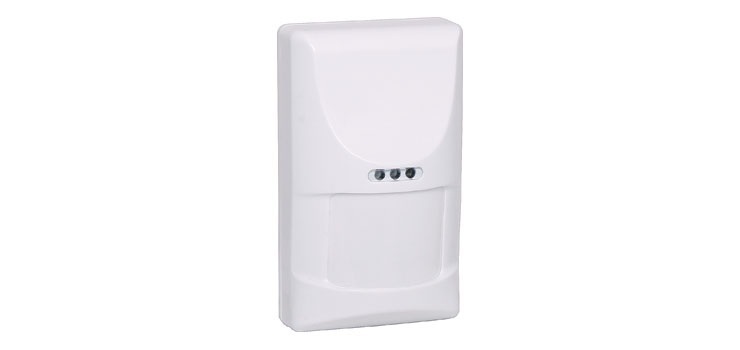

Economy PIR Detector with 20kg Pet Immunity

Alarm Accessories for Home Security!

These compact, easy to install, passive infra red detectors offer excellent movement detection for alarm systems at an affordable price.

They feature NC or NO contact output (30V DC @ 0.2A max), 2/3 selectable pulse count and 12m detection range.

An internal tamper switch ensures units cannot be deactivated by intruders.

The pet immune model ignores movement from animals up to 18kg in weight and 60cm in height.

The housing has internal screw recesses which can be drilled through for horizontal mounting.

Not to be used with a bracket.

FEATURES:

• Low standby current - only 5mA
• NC/NO alarm contacts
• 12x12m 110° detection range
• 9-16V DC operation
• 2/3 selectable pulse count
• Walk test LED
• Compact size, 109x65x46mm
