GT Power X4 AC/DC Multi-chemistry 4 x Battery Balance Charger
x4 Quattro Charges 4 Li-Po Battery packs
SKU: PS1189

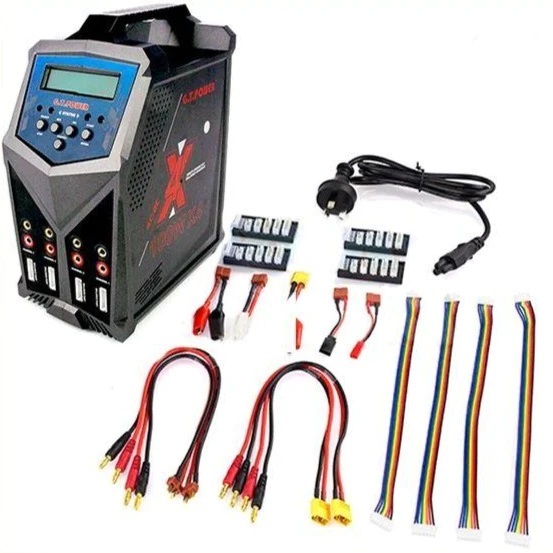

GT Power X4 AC/DC Multi-chemistry 4 x Battery Balance Charger
x4 Quattro Charges 4 x Li-Po Battery packs
The GT Power x4 Quattro is a Quad-channel charger with 4 independent circuits, which can charge four different kinds of batteries simultaneously. The charger features an LCD display, and paired channels (A&C or B&D) support power distribution in AC mode.
The G.T. Power X4 Pro Quad charger is a simple yet powerful quad output (4x 100W) dual input multifunctional charger with built in LiPo balancing (JST-XH) for up to 6S Lithium batteries.
It features 4 individual charging circuits allowing you to charge 4 batteries simultaneously regardless of battery type and cell count.
It is packed with features that exceeds many higher cost units.
Primarily designed for Lithium Polymer (LiPo, Li-Poly) batteries, it can also charge Li-Ion, Li-Fe (A123M1), Li-HV Ni-Cd, Ni-MH, and Pb (lead acid) batteries.
Features
Capacity Limit
Maximum safety
Temperature monitoring
Input power monitoring
Easy to program buttons
5 battery memory
Individual cell monitoring
2-Line Back lit LCD display
Built in Balancer to 6S packs
Cycle charging/discharging
Includes "FAST" & "STORAGE" Li-xx programs
Small Footprint
Long balance and charge leads (270 and 300mm respectively)
Product Details
Output 4x 100W (400W Total)
Discharge 4x 5W (20W Total)
Balancing current 300mAh/cell
Operating input voltage : 10 - 18V DC or 100-240V AC
Ni-Cad / Ni-MH : 1 - 15 Cells
Li-Ion / Li-Po / Li-Fe / Li-HV: 1 - 6 Series
Charge current : 0.1 - 7.0A
Discharging current: 0.1 - 1.0A
PB / Lead Acid : 2 - 20V
Built in Cell Balancer : Up to 6S (series) Li-Po (JST-XH connectors)
2x 5.3V 2.3A USB outputs
No. of Cycles : Up to 5 Cycles
Weight : 1550g (without cables)
Dimensions : W110mm x D183mm x H238mm
Cables: 2 x XT60 charge leads, 2 x Deans charge cables, 4 x long balance cables with XH balance boards.
Adaptor leads: Dean to JST, Dean to Tamiya, Dean to Fut female, Dean to aligator, XT60 to aligator.
CLICK HERE TO SEE SUITABLE CHARGING LEADS
CLICK HERE TO SEE OTHER BATTERY CHARGERS
3 Month Warranty
