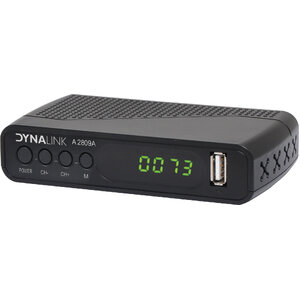

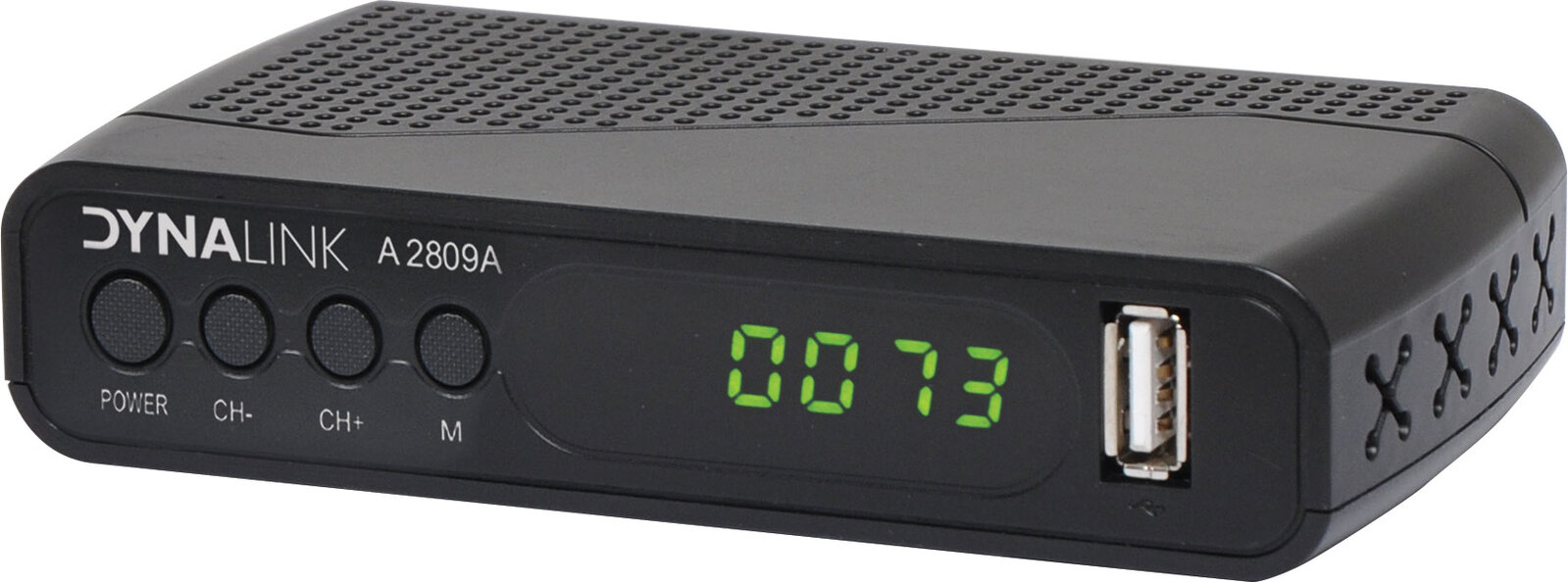

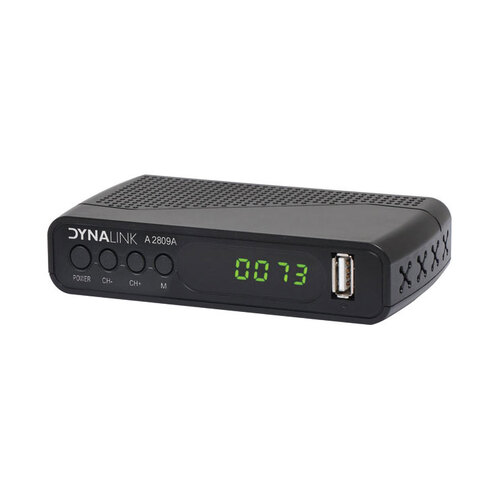

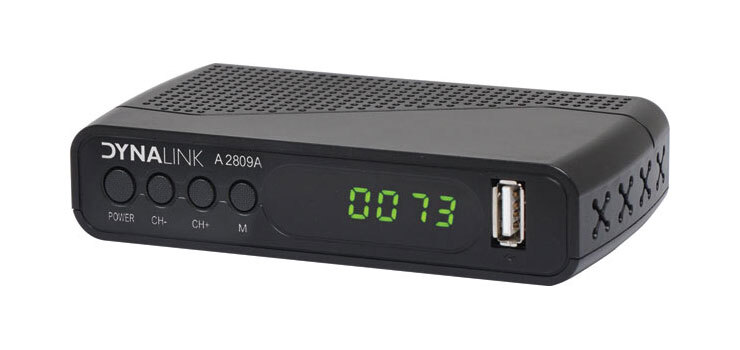

HD Digital Terrestrial 12V Set Top Box

HD Set Top Box to suit caravans, RVs and vehicles

This 12V DC Powered HD set top box is great for caravans, RVs and vehicles. Incredibly compact, under 12cm wide! This DVB-T Terrestrial digital TV receiver features composite and HDMI outputs for HD televisions or connection to a PC monitor or projector. Runs off a 12V power source making it perfect for use in cars, 4WDs, caravans and boats. USB connection allows recording direct to a USB stick, plus playback of photo slideshows. Plug pack also included for 240V operation. Includes 2 x AAA batteries for remote control.


Features

• Fully DVB-T compliant
• USB PVR ready for recording
• MPEG-4 AVC/H.264 HP@L4

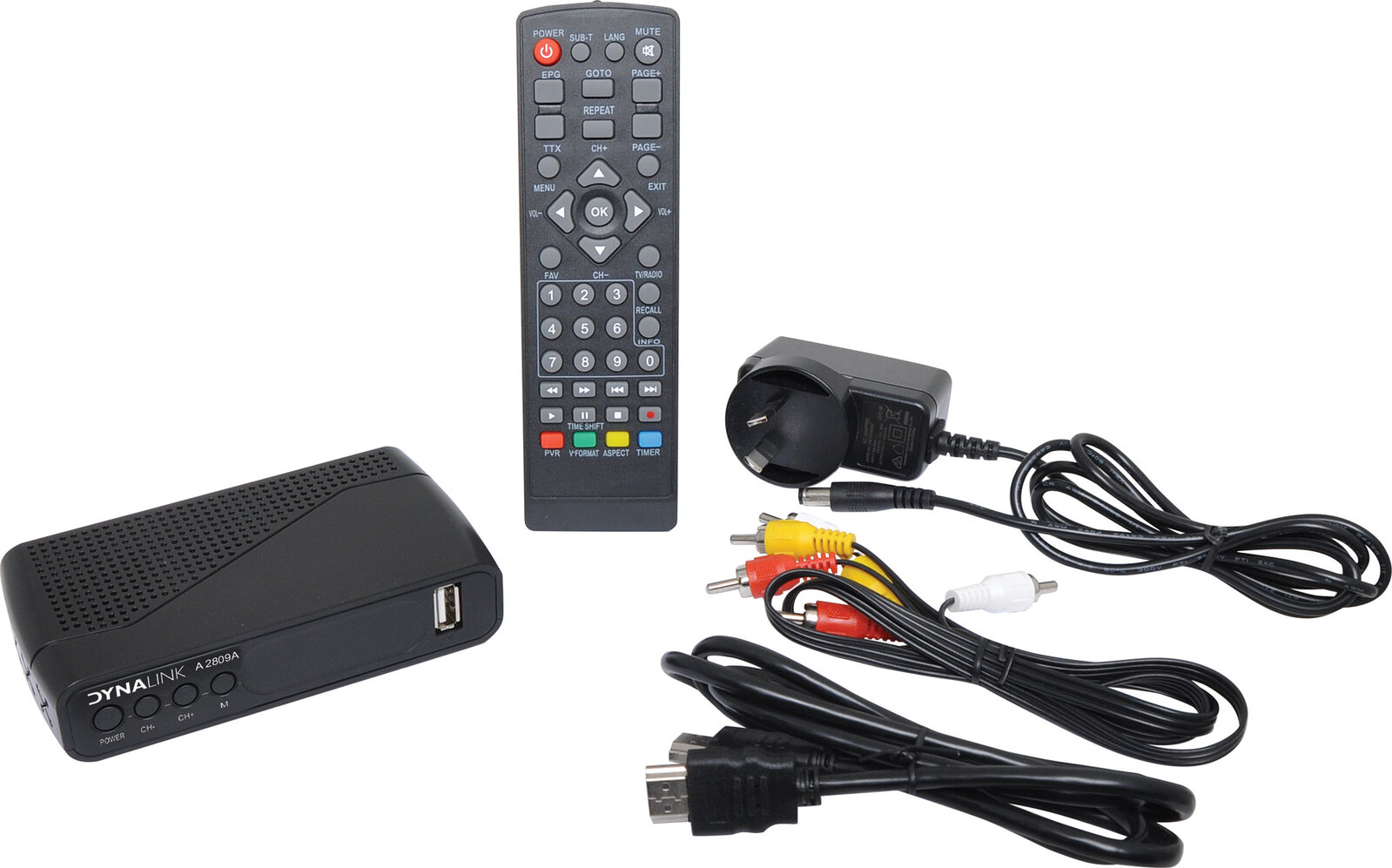

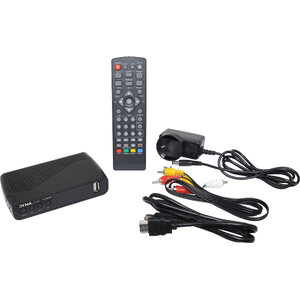

• HDMI cable included
• Parental lock facility
• Supports teletext
• IR remote control
• 240V plugpack included
• HDMI and composite outputs
• 7-day electronic program guide (EPG)
• Multi-language subtitle output supported
• 12V DC operation suitable for use in vehicle

• Tuner
• Input Frequency: VHF: 170-230MHz, UHF: 470-860MHz
• RF Input Level: -78 ~ - 20dBm
• RF Bandwidth: 7MHz and 8MHz
• Modulation: QPSK, 16QAM, 64QAM, 256QAM
•
• Video
• Decoder Format: MPEG4 AVC/H.264 HP@L4, MPEG2 MP@MP.HL
• Output Format: 480i/480p/576i/576p/720p/1080i/1080p

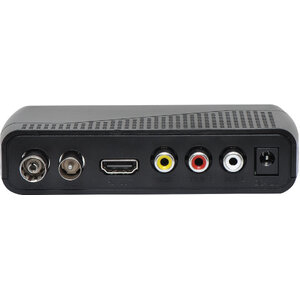

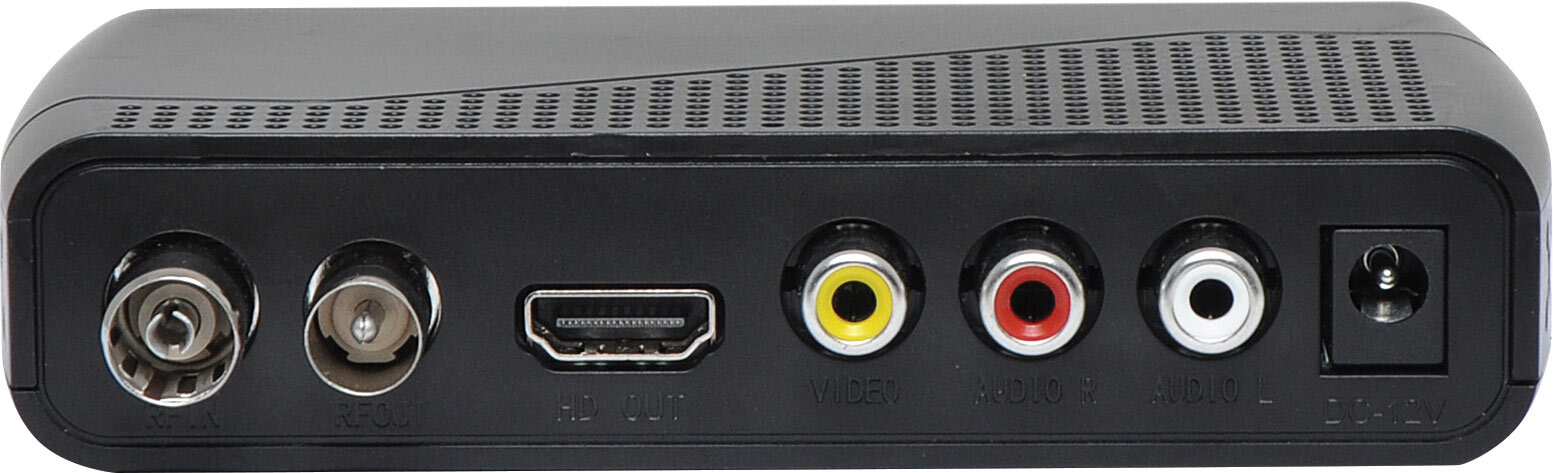

• Output Port: HDMI, CVBS (Composite)
•
• Audio
• Decoder Format: MPEG-1 (layer 1,2,3), WMA, AC3
• Audio Output: Stereo RCA, HDMI
•
• USB 2.0
• Supported Capacity: 500GB
• Supported Media: MP3, WMA, JPEG, BMP, AVI, MKV
•
• Power
• Supply Voltage: 12V DC
• Power Consumption (Maximum): <10W
• Power Consumption (Standby): <1W
• Remote control batteries: 2 x AAA (included)
•
• Dimensions:
• 125W x 28H x 77Dmm

  *Specifications are subject to change without notice.
