HD Digital Terrestrial Set Top Box With PVR Function

Record your favourite shows directly onto a USB Drive

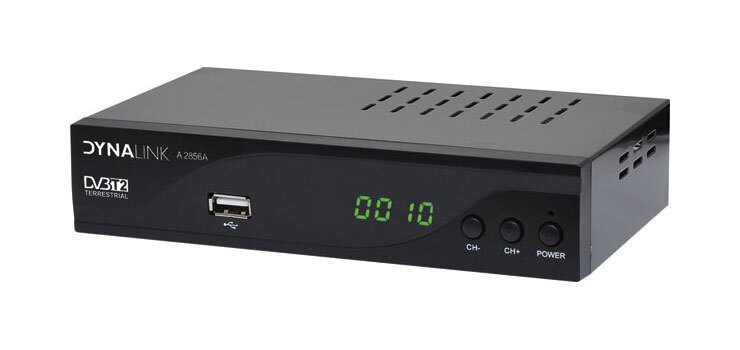

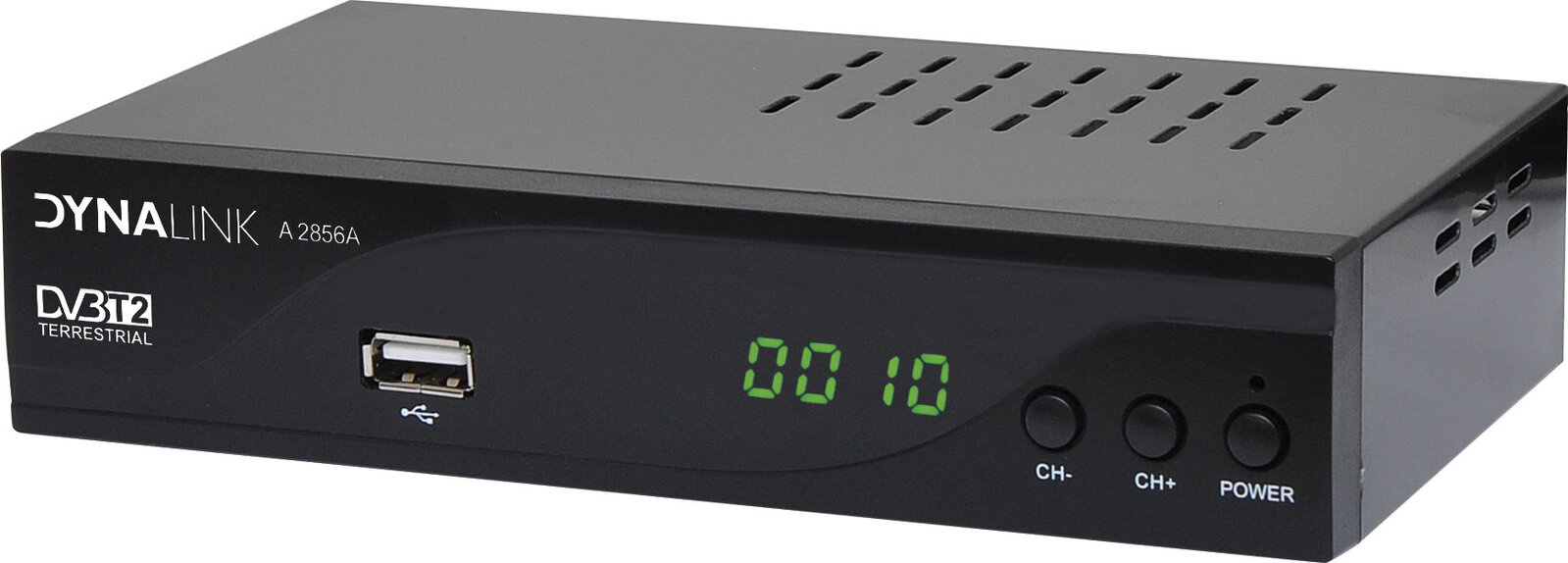

This HD set top box features composite and HDMI outputs for HD televisions or connection to a PC monitor or projector. Powered 240V mains. USB connection allows recording direct to a USB stick, plus playback of photo slideshows. Includes 2 x AAA batteries for remote.

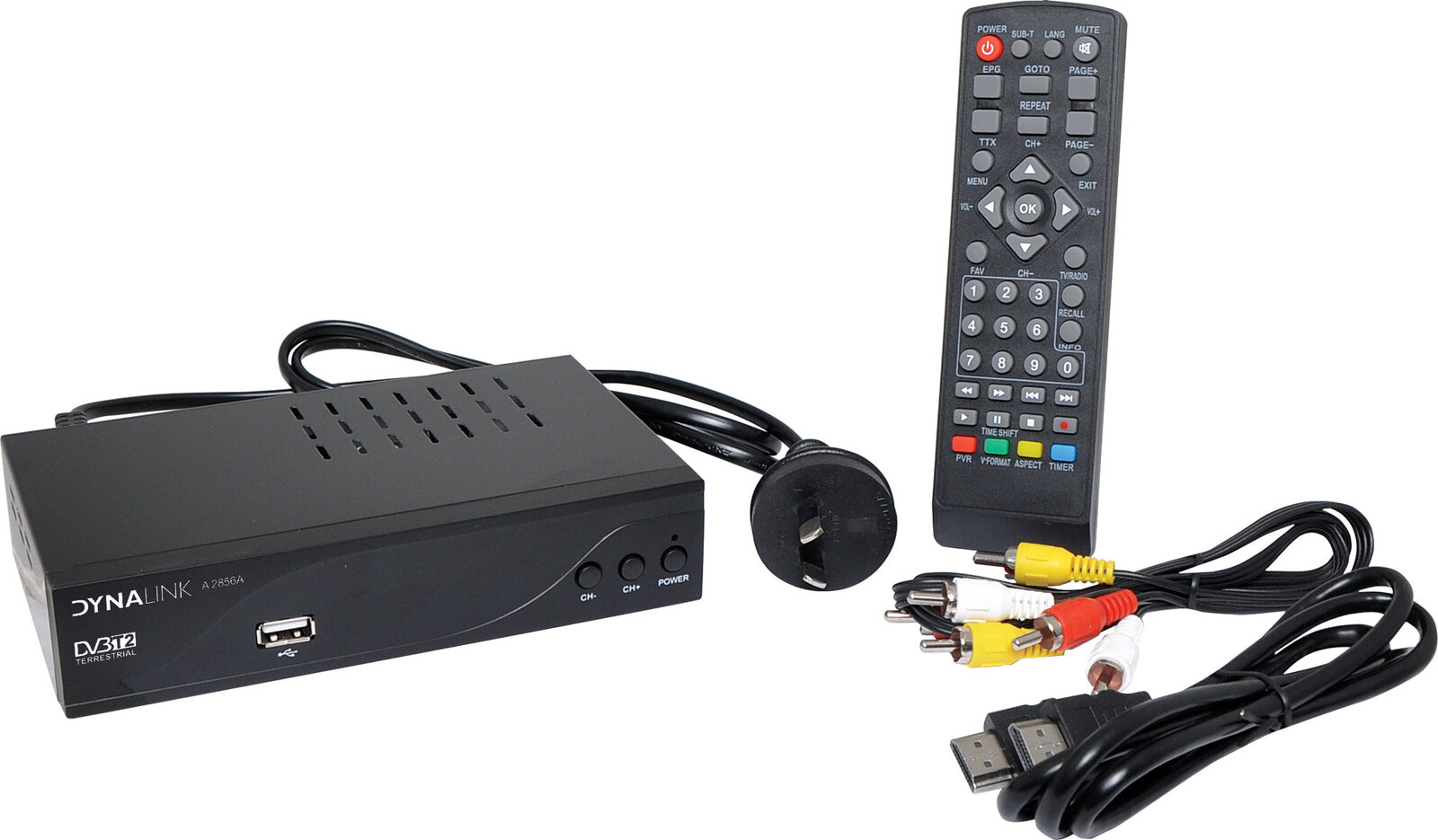

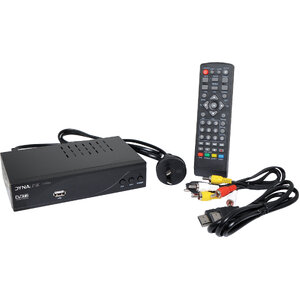

Package Includes:
Set top box
Remote (2 x AAA batteries included)
Instruction manual
HDMI cable
AV RCA cable



Features

• USB PVR ready for recording
• MPEG-4 AVC/H.264 HP@L4
• Favourite service list editing
• Parental lock facility
• Supports teletext
• IR remote control
• Fully DVB-T compliant
• HDMI cable included

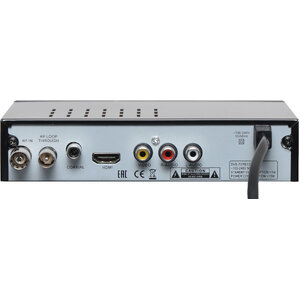

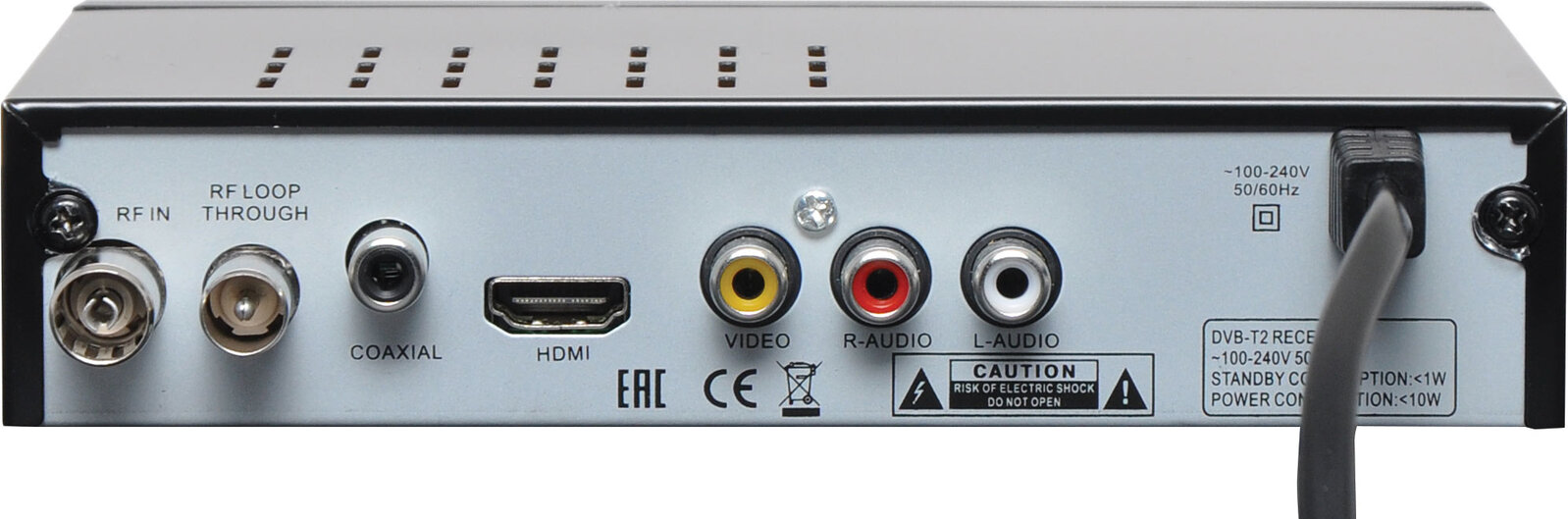

• HDMI and composite outputs
• 7-day electronic program guide (EPG)
• Multi-language subtitle output supported

• Tuner
• Input Frequency: VHF: 170-230MHz, UHF: 470-860MHz
• RF Input Level: -78 ~ - 20dBm
• RF Bandwidth: 7MHz and 8MHz
• Modulation: QPSK, 16QAM, 64QAM, 256QAM
•
• Video
• Decoder Format: MPEG4 AVC/H.264 HP@L4, MPEG2 MP@MP.HL
• Output Format: 480i/480p/576i/576p/720p/1080i/1080p
• Output Port: HDMI, CVBS (Composite)
•
• Audio
• Decoder Format: MPEG-1 (layer 1,2,3), WMA, AC3
• Audio Output: Coaxial, Stereo RCA, HDMI
•
• USB 2.0
• Supported Capacity: 500GB
• Supported Media: MP3, WMA, JPEG, BMP, AVI, MKV
•
• Power
• Supply Voltage: 220-240V ~ 50/60Hz
• Power Consumption (Maximum): <10W
• Power Consumption (Standby): <1W
• Remote control batteries: 2 x AAA (included)
•
•
• Dimensions:
• 168W x 37H x 106Dmm

  *Specifications are subject to change without notice.
