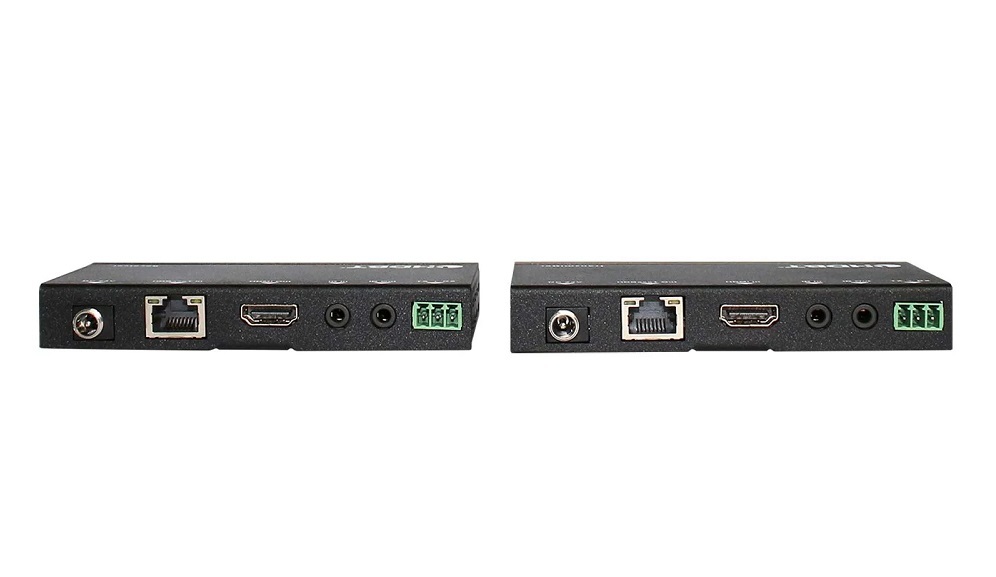

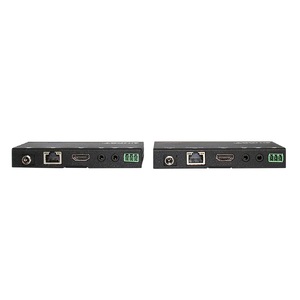

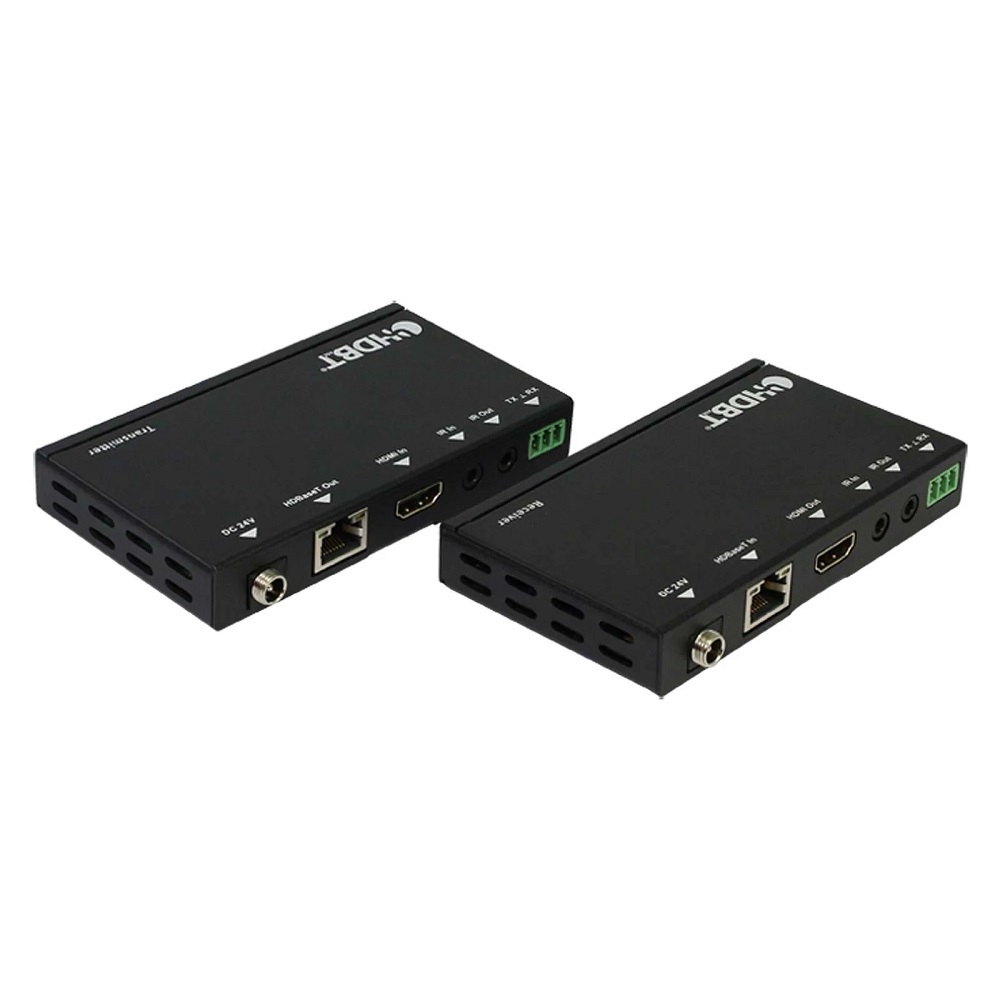

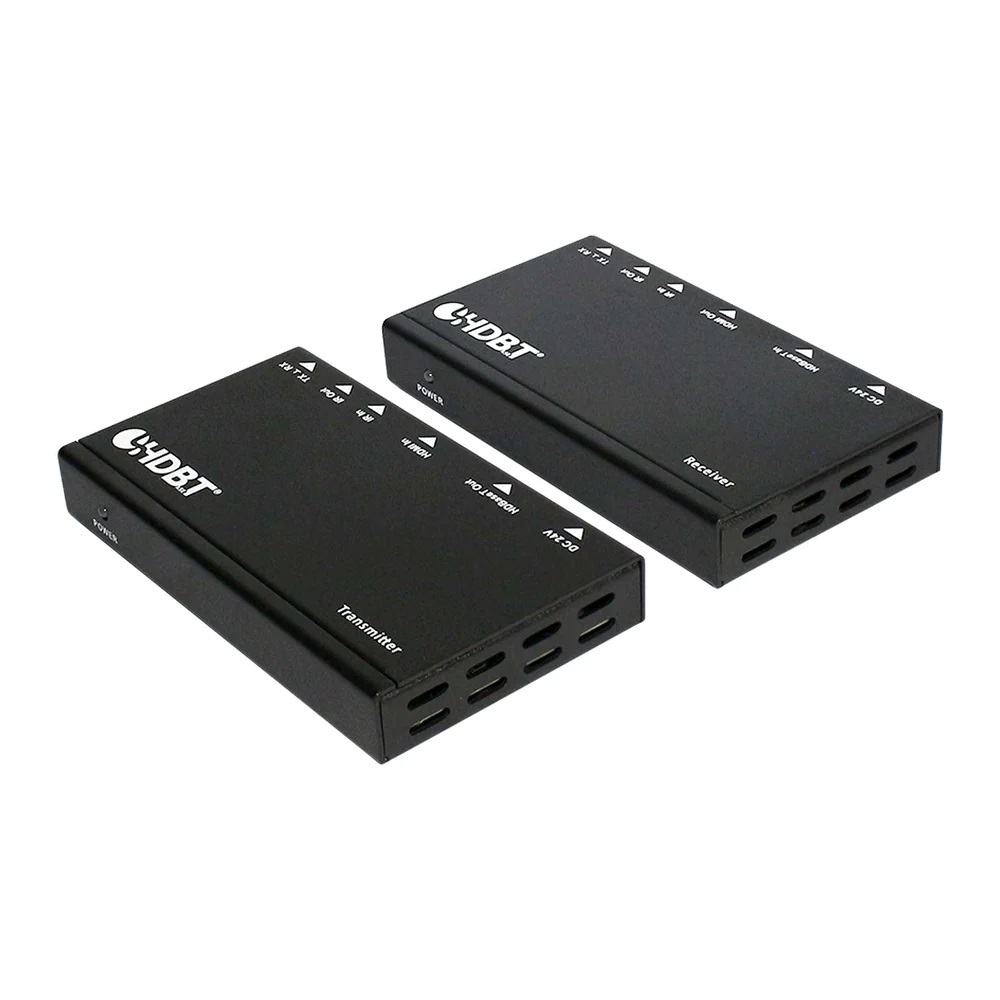

HDBaseT HDMI 2.0 18GBPS UHD Extender Over Cat 5E/6 with Bi-directional Infra-red Repeater
HDBaseT HDMI 2.0 Extender over Cat 5 and Cat 6
SKU: AA6045
HDBaseT HDMI 02.0 Extender over Cat 6
Send 4K UHD HDMI 2.0 with HDCP 2.2 up to 70m
This 18Gbps HDMI 2.0 Extender utilising HDBaseT protocol via Cat 6 ethernet cable. It is also HDCP2.2. compliant and supports Transfer Bidirectional Infrared control signal/RS232 signal/Ethernet together with the HDMI signal.
Perfect for new 4K video sources such as IQ4, Playstation 4 Pro or Xbox S One and other devices that require 4K2K@60Hz with 24bit RGB/YCBCR 4:4:4 / YCBCR 4:2:2 specifications.
Features:
• HDBaseT-Lite Technology up to 230ft/70m distance
• Simple plug-and-play for easy connection - no set up/drivers/software required
• Supports High Definition resolutions up to 4K2K@60Hz(4:2:0),4K2K@30Hz,1080P@120Hz, and 1080P 3D@60Hz
• Supports up to 7.1 channels of High Definition audio (LPCM, Dolby TrueHD, and DTS-HD Master Audio)
• Supports Bi-directional wideband IR control from source to display or from display to source
• Supports Bi-directional 24V PoC
• Compact design for an easy and flexible installation
Technical
HDMI Compliance HDMI 2.0a
HDCP Compliance HDCP 2.2
Video Bandwidth 10.2 Gbps
Video Resolutions up to 4K2K@60Hz(4:2:0),4K2K@30Hz,1080P@120Hz, and 1080P 3D@60Hz
Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2
Color Depth 10-bit, 12-bit, 16-bit
Audio Formats PCM 2CH, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
ESD Protection Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge)
Connections
Inputs
TX:
1x HDMI Type A [19-pin female]
1x 3.5mm Stereo Mini-jack [Infrared Receiver]
1x 3-pin Phoenix connector [RS-232]
RX:
1x RJ45 [HDMI & Propriety Data]
1x 3.5mm Stereo Mini-jack [Infrared Receiver]
Outputs
TX:
1x RJ45 [HDMI & Propriety Data]
1x 3.5mm Stereo Mini-jack [Infrared Emitter]
RX:
1x HDMI Type A [19-pin female]
1x 3.5mm Stereo Mini-jack [Infrared Emitter]
1x 3-pin Phoenix connector [RS-232]
Mechanical
Housing Metal Enclosure
Dimensions TX/RX: 65mm [W] x 115mm [D] x 17mm [H]
Net Weight TX/RX: 200g
Power Supply Input: AC100 - 240V 50/60Hz
Output: DC 24V/1A (US/EU standards, CE/FCC/UL certified)
Power Consumption (Max) 12W with PoC
Operation Temperature 32 - 104°F / 0 - 40°C
Storage temperature -4 - 140°F / -20 - 60°C
Relative Humidity 20 - 90% RH (no condensation)
12 Month Warranty
| SKU | AA6045 |
| Barcode # | 9351634006588 |
| Brand | Playvision |
| Shipping Weight | 1.2600kg |
| Shipping Width | 0.260m |
| Shipping Height | 0.080m |
| Shipping Length | 0.360m |
| Shipping Cubic | 0.007488000m3 |
| Unit Of Measure | ea |
| Assembled Length | 0.250m |
| Assembled Height | 0.010m |
| Assembled Width | 0.200m |
