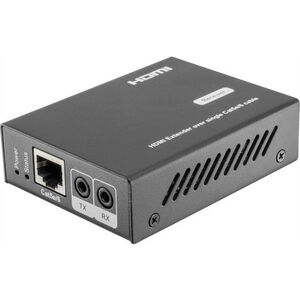

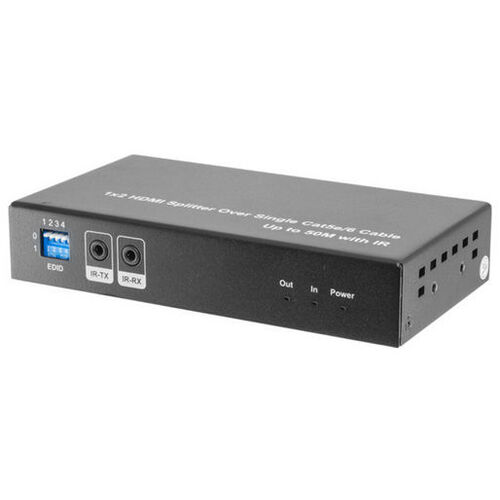

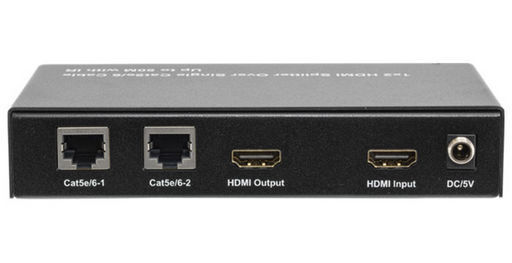

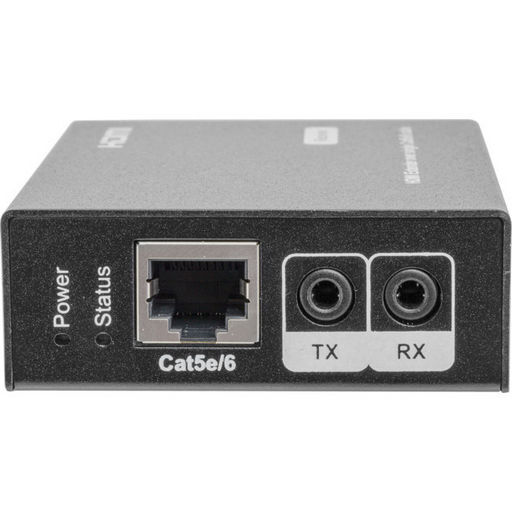

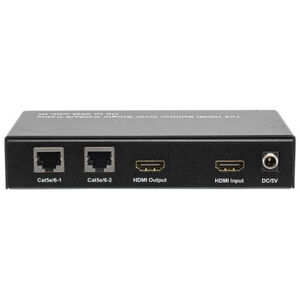

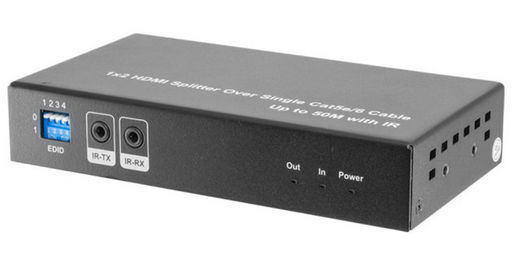

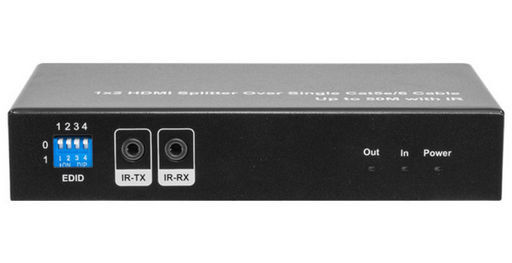

HDMI 2 Port Extender Over Cat 5E/6 with 2 Receivers & IR Extender

Extends a HDMI Signal to 2 Displays up to 50m in range

SKU: AA6602


$279.00
RRP $499.00
In Stock

Buy In Bulk & Save!
Buy 4 to 10: Pay $265.05 ea
Buy 11 to 20: Pay $251.79 ea
Buy 21 to 100: Pay $226.62 ea




Calculate Shipping

HDMI 2 Port Extender Over Cat 5E/6  with 2 Receivers & IR Extender

Extends a HDMI Signal to 2 Displays up to 50m in range

Extends a 1080p High Definition HDMI signal over Cat 6 to 2 HDMI receivers with bi-directional IR Extender functionality up to 50m in distance without signal loss. A cost effective solution for multi-display applications for your home, office, pubs and hotels.

Great solution for sending a set top box HDMI signal such as a Foxtel iQ2 or iQ3 to other TV's in the house or man cave.

Features:

  • One HDMI input distributes and extend to found Display by four cat6 cable. The extend distance can be up to 50m.

  • Support 3D

  • Support video output: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

  • Audio format support: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

  • LED Status Light:the related led light will go bright.

  • The extend distance can be up to 50m.

  • Support signal retiming

  • No loss of quality

  • Installs in minutes

Specifications:

Length of CAT-6 cable between Rx and TX - up to 50m

HDMI Input - 24/50/60fs@ 1080p / 1080i / 720p / 576p / 576i / 480p / 480i

Support audio format input - DTS-HD / Dolby-trueHD / LPCM7.1 / DTS / Dolby-AC3 / DSD

HDMI Output - 24/50/60fs@ 1080p / 1080i / 720p / 576p / 576i / 480p / 480i

Support audio format output - LPCM7.1 / DTS / Dolby-AC3 / DSD

Max bandwidth - 225MHz

Max baud rate - 6.75Gbps

Input Video signal - 0.5~1.5Volts p-p

Output DDC signal - 5Volts p-p (TT1L)

Input HDMI cable distance - ≤15m AWG26 HDMI standard cable

Output HDMI cable distance - ≤20m AWG26 HDMI standard cable

CLICK HERE TO SEE OTHER 4K HDMI 2.0 EXTENDERS.

CLICK HERE TO SEE OTHER HDMI EXTENDERS IN OUR RANGE

12 Month Warranty

SKU AA6602
Barcode # 9351634042883
Brand Playvision
Shipping Weight 1.6700kg
Shipping Width 0.300m
Shipping Height 0.100m
Shipping Length 0.330m
Shipping Cubic 0.009900000m3
Unit Of Measure ea
Assembled Length 0.250m
Assembled Height 0.010m
Assembled Width 0.200m
