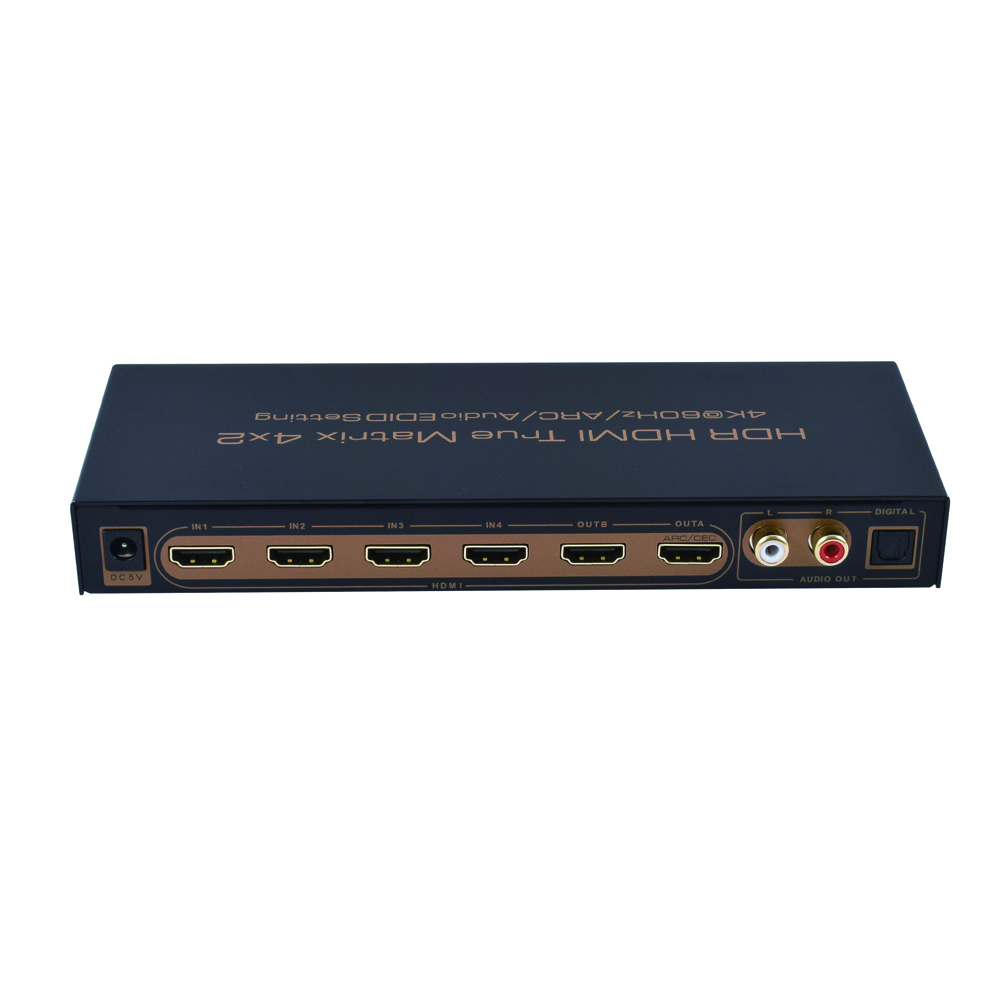

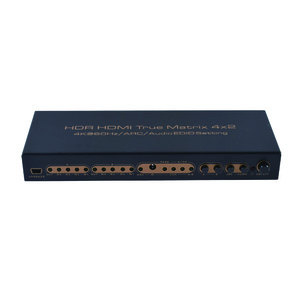

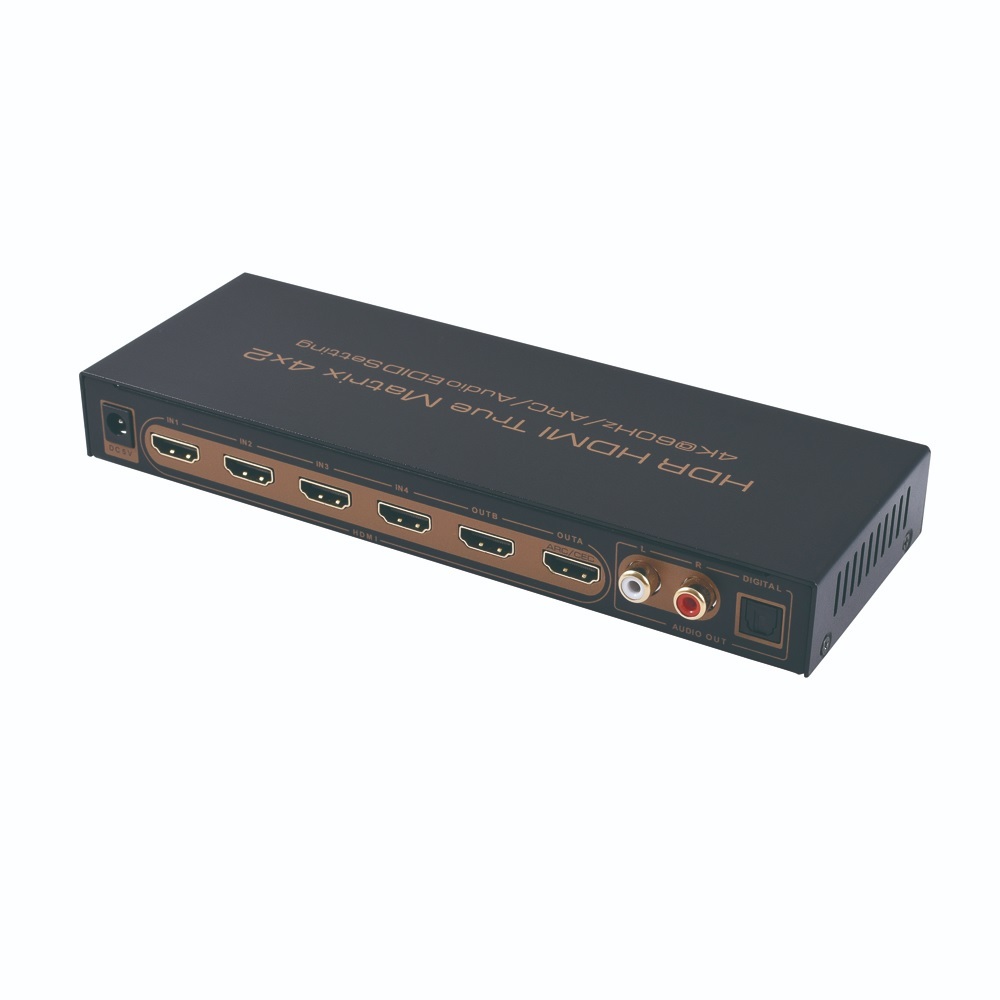

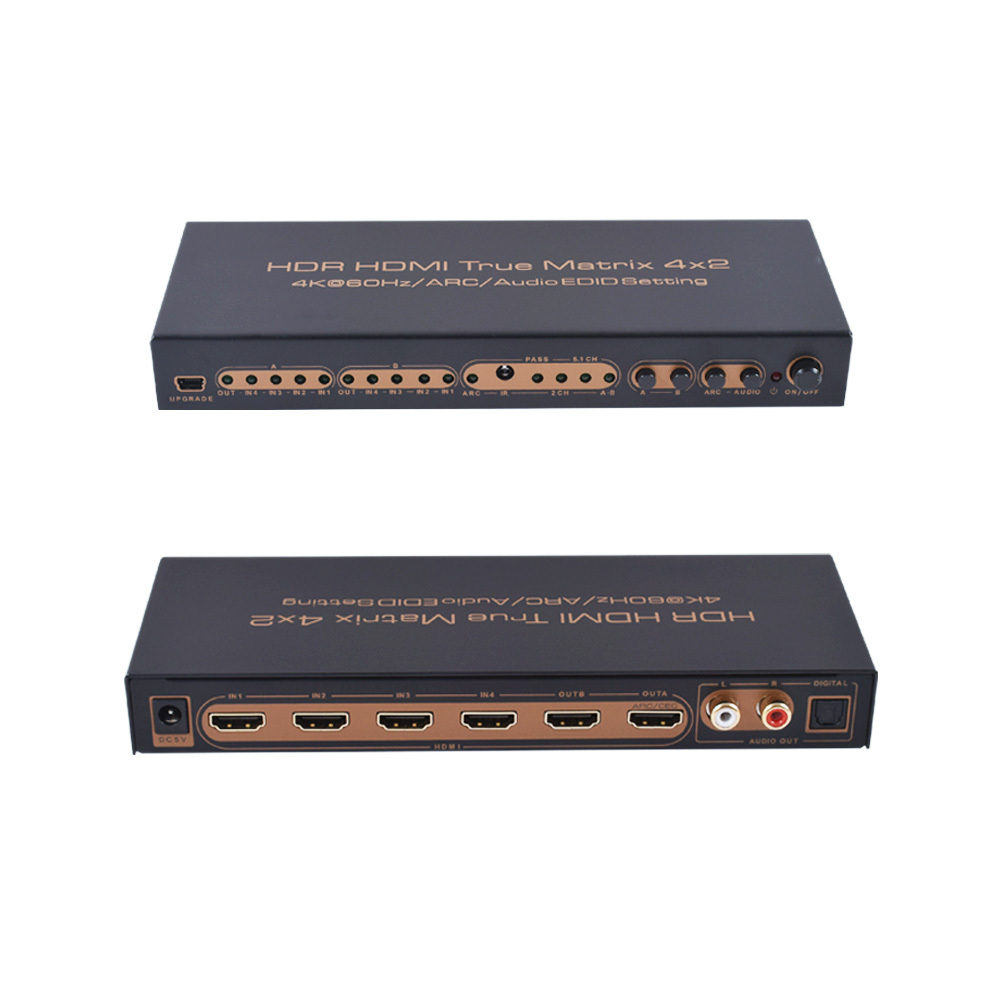

HDMI 2.0 18GBPS 4 Input 2 Output Matrix Switcher Splitter w/ Audio Splitter

4 x 2 HDMI True Matrix with ARC, HDR & CEC support

This true HDMI 2.0 18GBPS Matrix Switcher is capable of switching between 4 HDMI inputs and displaying or splitting the signal to 2 LCD Displays or TV. Suitable for newer 4K HDMI devices such as PS4 Pro, XBOX S One, Foxtel IQ4, etc.

It also has a built-in Audio Splitter for connecting the Digital Toslink (fibre optic) Audio output or Analogue Line Level RCA to an Amplifier/Receiver or Soundbar.

Specifications:
Input ports: HDMIX4
Output ports: HDMI X 2, RCA X 2, Optical X 1
Video format: 480P / 720P / 1080P / 2160P (Supports HDR / Dolby Vision)
Deep color: 8/10/12Bit @ 480P / 720P / 1080P 8Bit @ 2160P
Audio format: Dolby Atmos, Dolby HD / DTS HD / Dolby Atmos / Dolby AC3 / DTS / LPCM
Transmission bandwidth: 25~600MHz
Transmission rate: 0.75~18Gbps IR distance ≥5m
Input cable length: 2160P / AWG 26 ≤5m; 1080P / AWG 26 ≤10m
Output cable length: 2160P / AWG 26 ≤5; 1080P / AWG 26 ≤12m
Power adapter Input: AC 100~240V
Output: DC 5V/1A Max working current 500mA
Accessories: Manual, Remote, Power Adaptor
