HDMI 2.0 18GBPS 4 Input 2 Output Matrix Switcher Splitter w/  Downscaler & Audio Splitter

4 x 2 HDMI True Matrix with Dolby Vision, HDR10+ and HLG

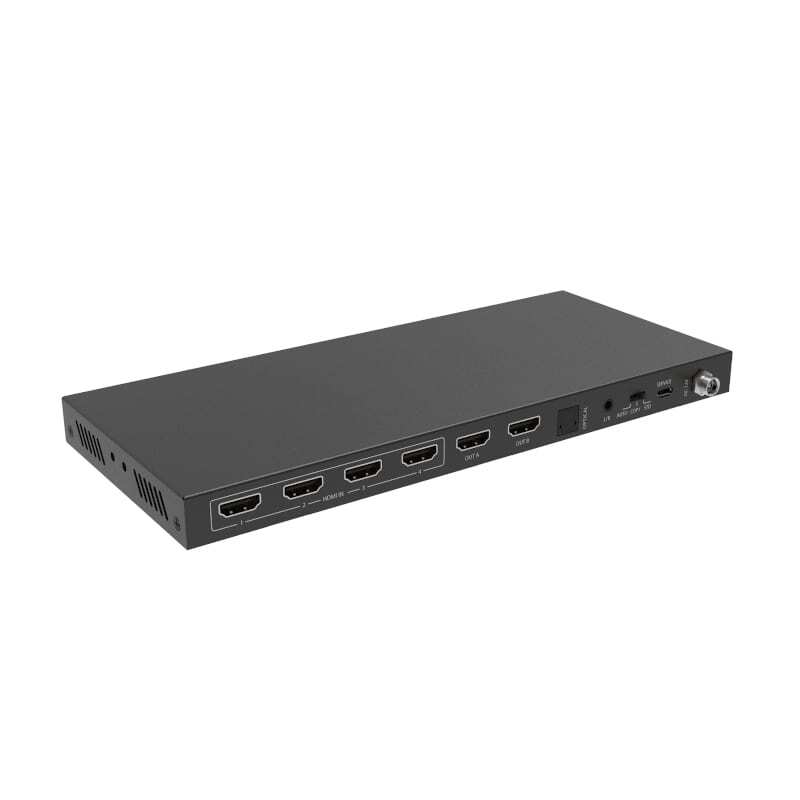

This true HDMI 2.0 18GBPS Matrix Switcher is capable of switching between 4 HDMI inputs and displaying or splitting the signal to 2 LCD Displays or TV. It has a downscaler and EDID management support to ensure that the highest resolution and setting can be selected.

Suitable for newer 4K HDMI devices such as PS4 Pro, XBOX S One, Foxtel IQ4, etc.

It also has a built-in Audio Splitter for connecting the Digital Toslink (fibre optic) Audio output or Analogue Line Level via 3.5mm Stereo socket to an Amplifier/Receiver or Soundbar.


Features:

• HDMI 2.0b, HDCP 2.2 and HDCP 1.4 compliant

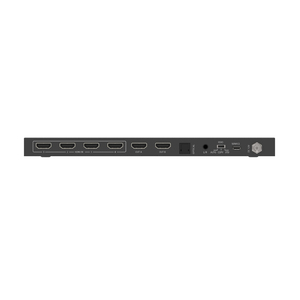

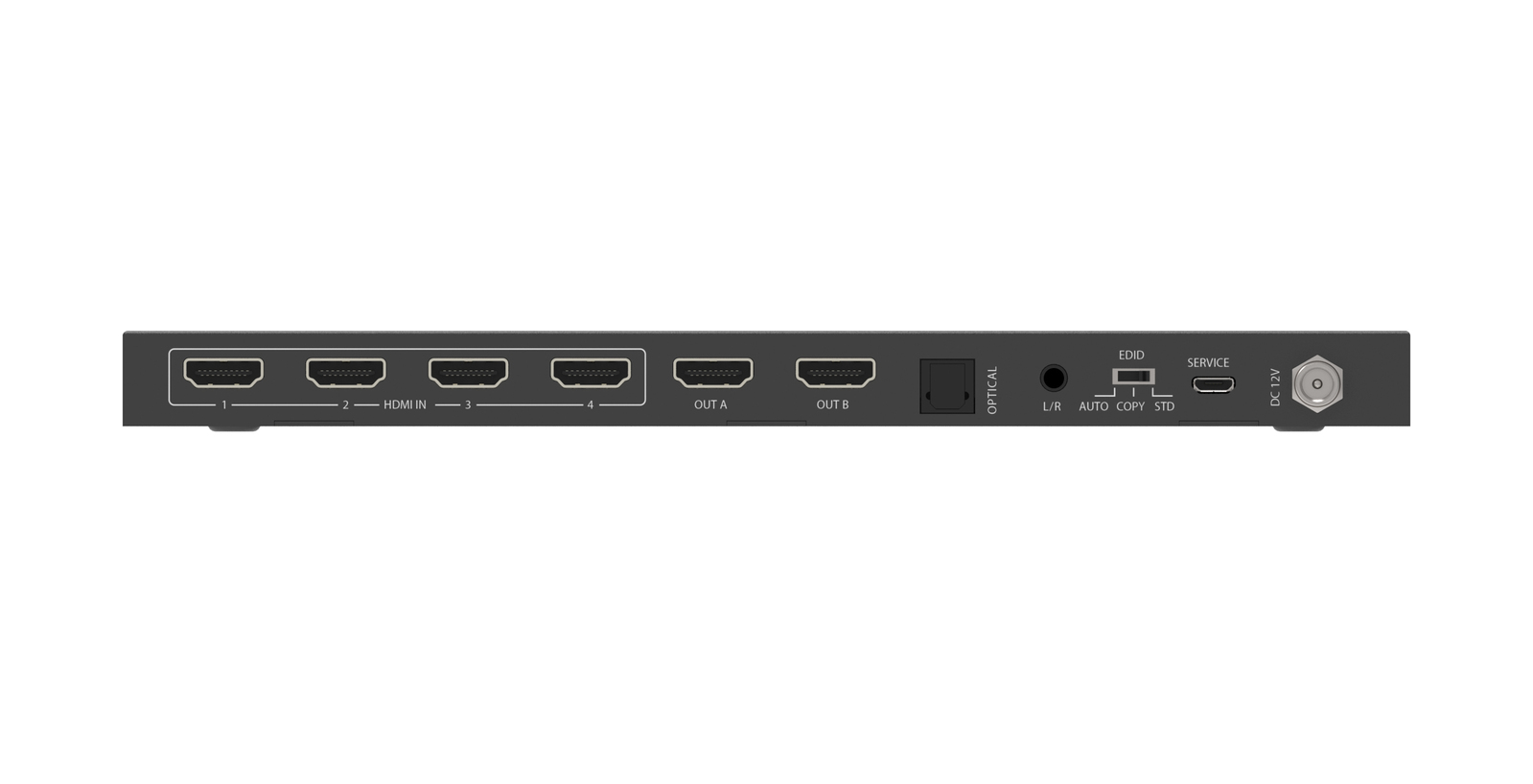

• 4 HDMI inputs, 2 HDMI outputs

• 18Gbps Uncompressed Bandwidth Support on HDMI

• Dolby Vision, HDR10+ and HLG Support

• Supports 4K->1080P Down Scaler (OUTA, OUTB)

• Supports input Auto switching

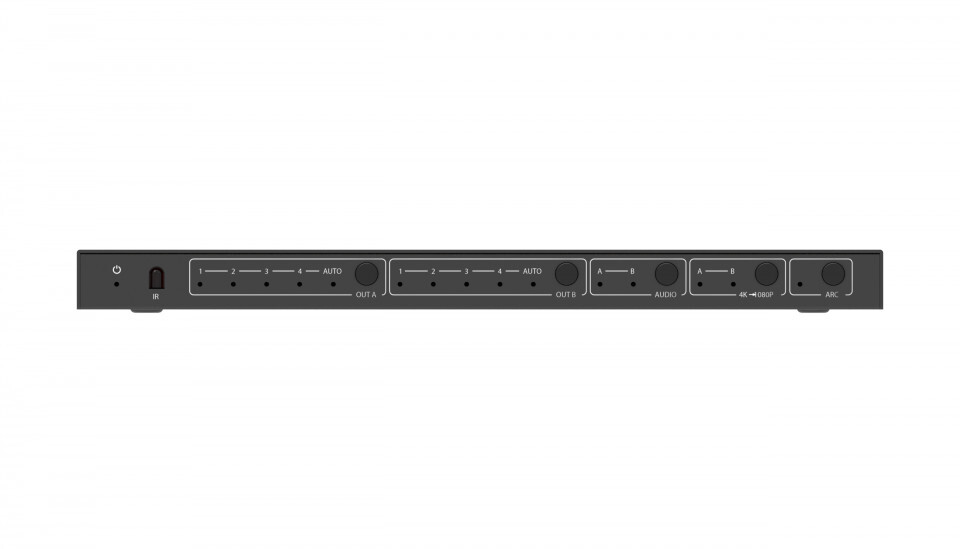

• Support panel & IR control

• Support ARC

• HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD, and DTS-HD Master Audio)

• Digital and analog audio outputs

• Advanced EDID management supported
