HDMI 2.0 18GBPS 4 Input 2 Output Matrix Switcher Splitter w/ Audio Splitter

4 x 2 HDMI True Matrix with ARC, HDR & CEC support

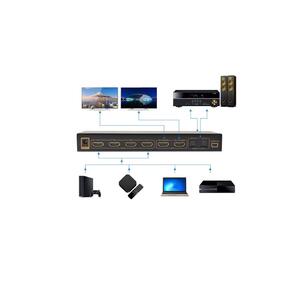

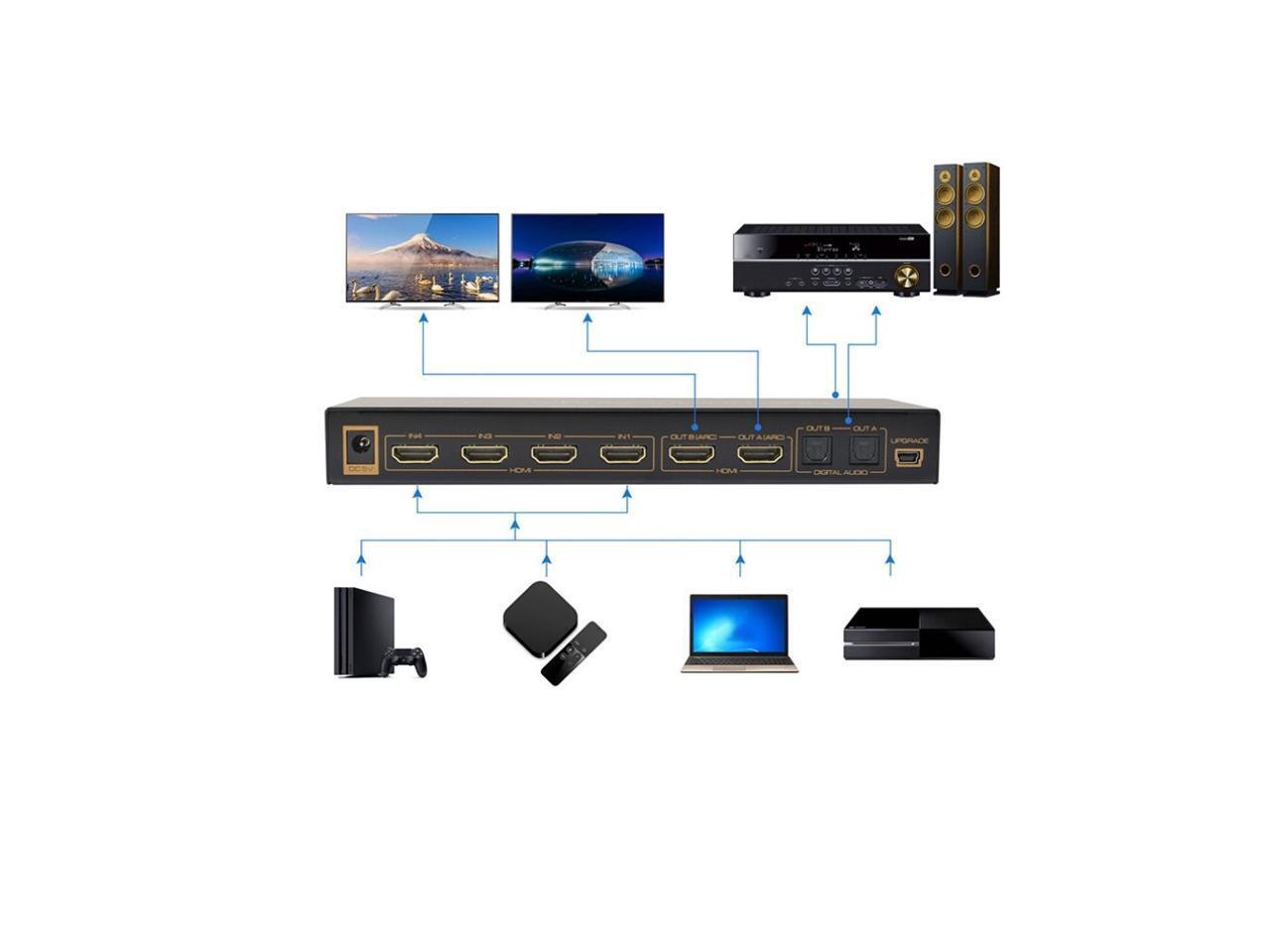

This true HDMI 2.0 18GBPS Matrix Switcher is capable of switching between 4 HDMI inputs and displaying or splitting the signal to 2 LCD Displays or TV. Suitable for newer 4K HDMI devices such as PS4 Pro, XBOX S One, Foxtel IQ4, etc.

It also has a built-in Audio Splitter for connecting the Digital Toslink (fibre optic) Audio output or Analogue Line Level RCA to an Amplifier/Receiver or Soundbar. It also intergrates a downscaler that matches the resolution of the TV?LCD display connected. Supports different resolution output display; e.g. 4K output resolution to main display and 1080p to secondary display.

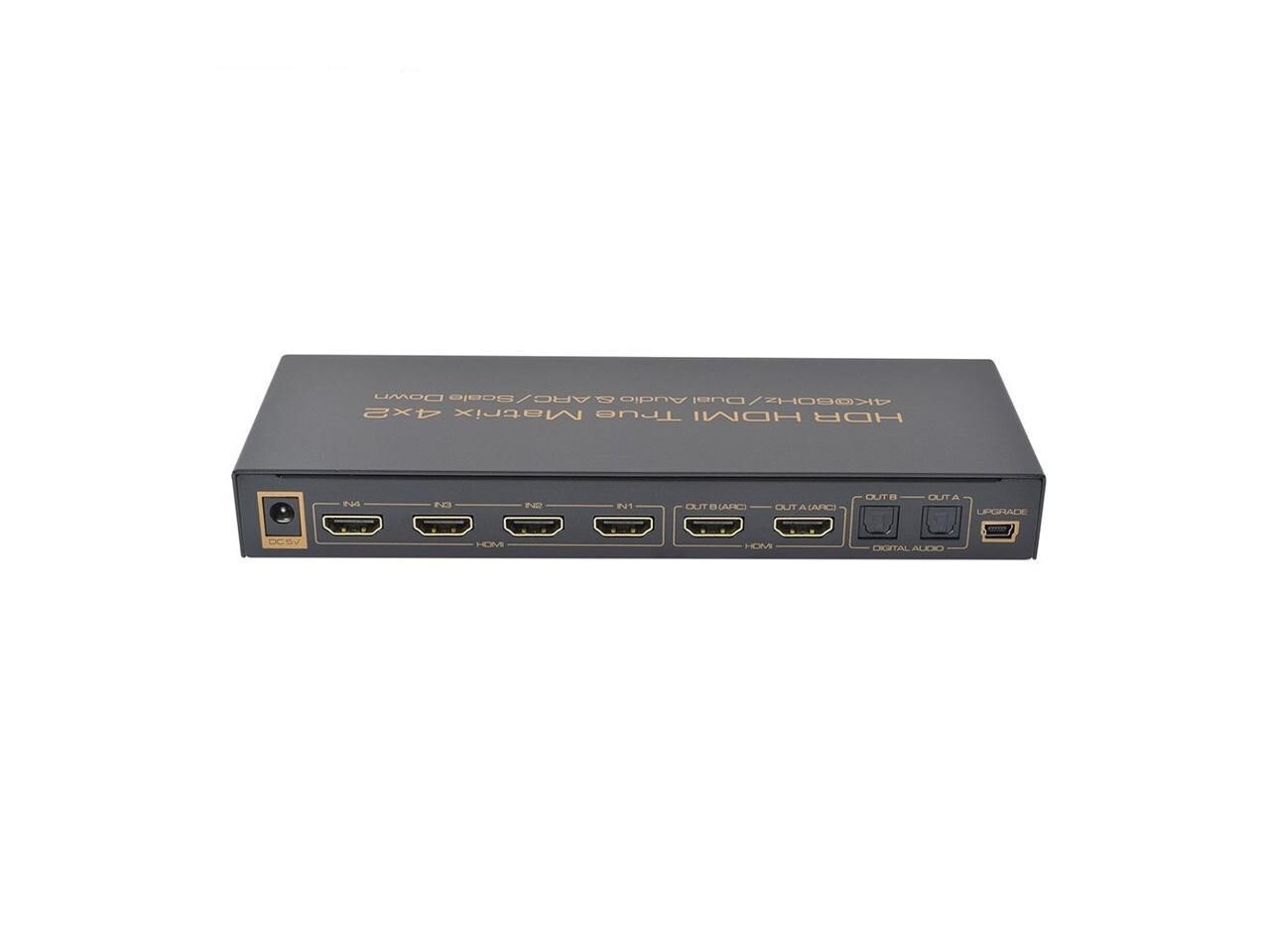

Input interface: HDMIx4
Output interface: HDMIx2, optical fiber x2, AUXx2
Resolution format: 480i/480P/576i/720P/1080i/1080P/2160P (support HDR/Dolby Vision)
Color depth: 8/10/12Bit@1080P 8bit@2160P
Audio format: Dolby HD/DTS HD/Dolby Atmos/Dolby AC3/DTS/LPCM, etc.
Transmission bandwidth: 25~600MHz
Transmission rate: 0.75~18Gbps
AUX output amplitude: 2V RMS (1kHz@0dB)
Input line length: 2160P/AWG 26 ≤4m; 1080P/AWG 26 ≤10m
Output cable length: 2160P/AWG 26 ≤5m; 1080P/AWG 26 ≤12m
Power adapter: AC 100~240V/DC 5V/1A
Maximum working current: 500mA
Working temperature: -5~ +40℃
Working humidity range: 5-85%RH (no condensation)
Storage temperature: -15-55℃
Storage humidity: 5 ~ 95%RH (no condensation)
Size: 250x75x30 mm
Color: black

Package Includes:

1 HDR HDMI 4x2 matrix
1 manual
1 power adapter
1 remote control
