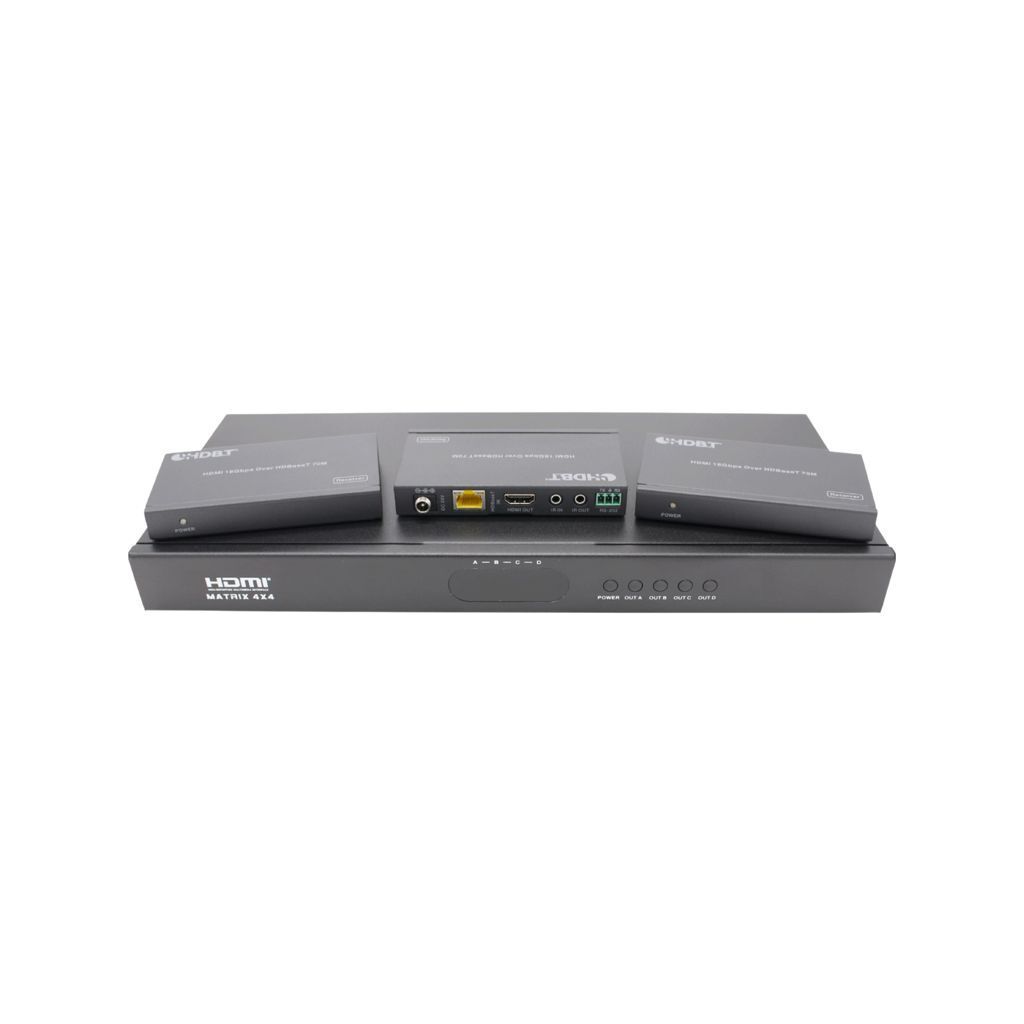

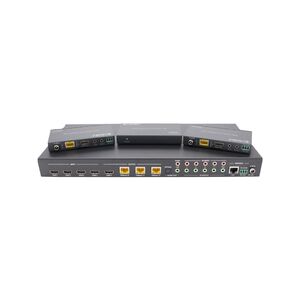

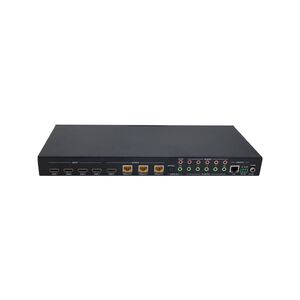

HDMI 2.0 18GBPS 4x4 Matrix Switcher with HDBaseT Extender
3 x HDBaseT plus 1 x HDMI Outputs
SKU: AA6137
$1,299.00
RRP $2,499.00
Sold Out
HDMI 2.0 18GBPS 4 Input 4 Output Matrix Switcher Splitter
4 x 18GBPS HDMI 2.0 Input to 3 x HDBaseT plus 1 x HDMI Outputs
Special Order Product - May take 2+ weeks for delivery
This true HDMI 2.0 18GBPS Matrix Switcher is capable of switching between 4 HDMI inputs and displaying or splitting the signal to 4 LCD Displays or TV . 1 output is HDMI and 3 are via HDBaseT up to 70m in range. Perfect for Distributing 4K 2160p AV through other LCD/TV's around the house. Perfect for a high end AV set up in your home, office, pubs abd clus. Suitable for newer 4K HDMI devices such as PS4 Pro, XBOX S One, Foxtel IQ4, etc.
It supports the transmission of video resolution up to 4K×2K @ 60Hz Ultra HD YUV4:4:4 and supports high resolution digital audio formats such as LPCM 7.1CH,Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio.
Product Features
• HDMI 2.0b, HDCP 2.2 and HDCP 1.4 compliant
• Up to 4K2K@60Hz (4:4:4) on all HDMI ports
• Up to 4K2K@60Hz (4:2:0) on all HDBaseT ports
• Supports automatic 4K@60Hz (4:4:4) to YUV (4:2:0) conversion for HDBaseT outputs
• Supports pass-through audio up to 7.1 channels of High Definition audio (LPCM, Dolby TrueHD, and DTS-HD Master Audio)
• Independent audio matrix with Volume, Mute, and Audio delay for lip-sync adjustment (LPCM only)
• HDR, CEC and smart EDID management supported • 24V POC on all HDBaseT ports
• Control is via on-panel Button, IR, RS-232, LAN and Web UI
• Slim design with aluminum housing
12 Month Warranty
SKU | AA6137 |
Barcode # | 9351634014613 |
Brand | Aus Electronics Direct |
Shipping Weight | 4.1600kg |
Shipping Width | 0.170m |
Shipping Height | 0.070m |
Shipping Length | 0.250m |
Shipping Cubic | 0.002975000m3 |
Unit Of Measure | ea |
