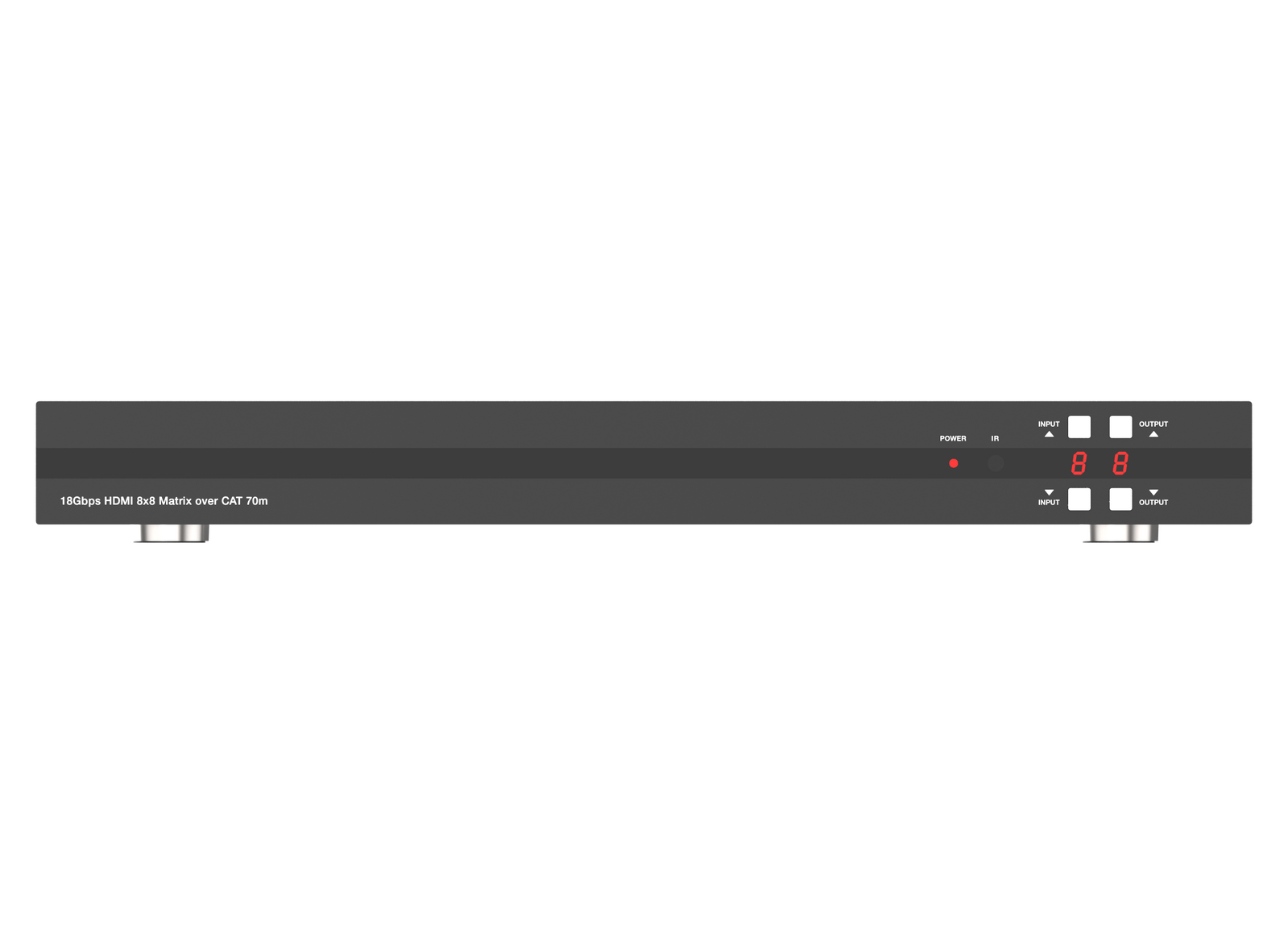

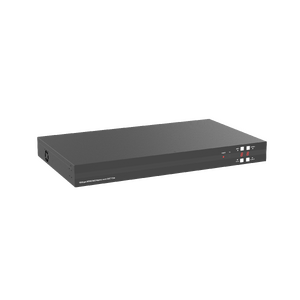

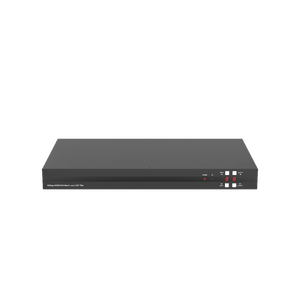

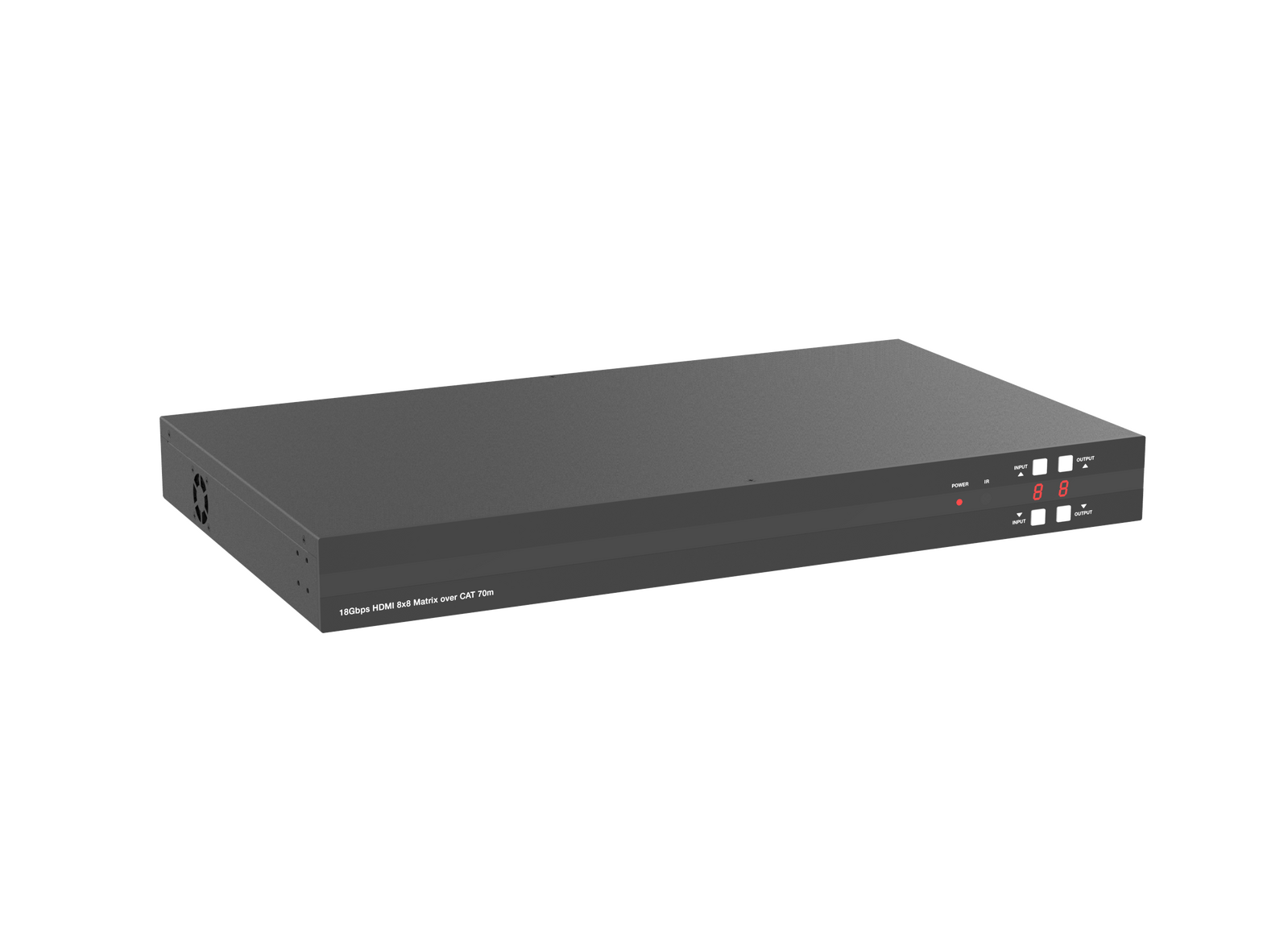

HDMI 2.0 18GBPS 8 Input 8 HDBaseT Extender Matrix Switch

Buy In Bulk & Save!
Buy 4 to 10:	Pay $1,614.05 ea
Buy 11 to 20:	Pay $1,452.65 ea
Buy 21 to 100:	Pay $1,307.38 ea

Calculate Shipping

Description

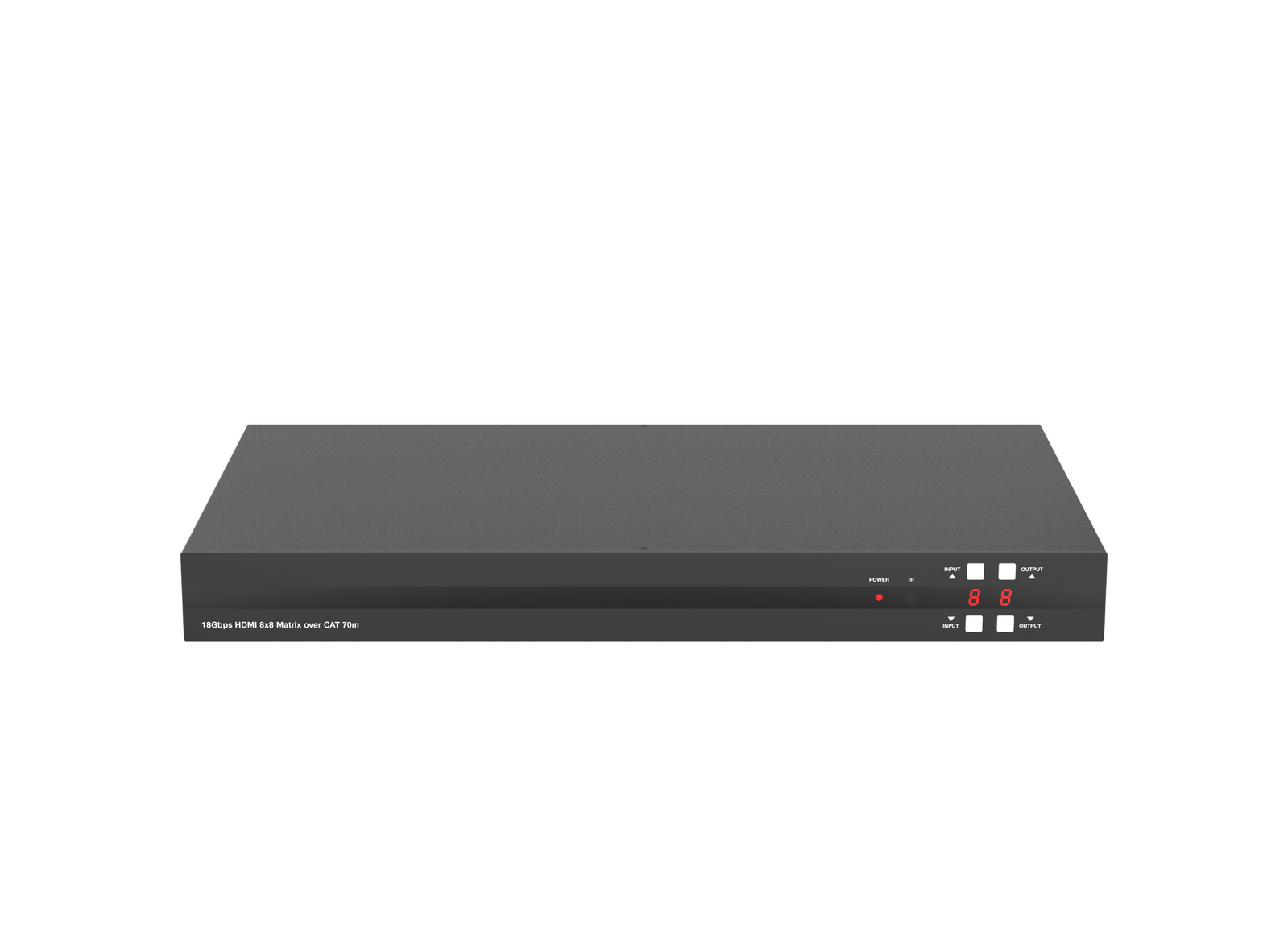

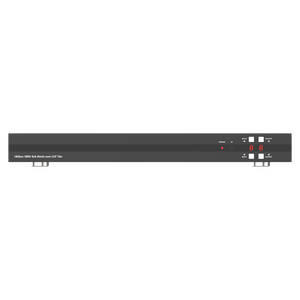

HDMI 2.0 18GBPS 8 Input 8 HDBaseT Extender Matrix Switch

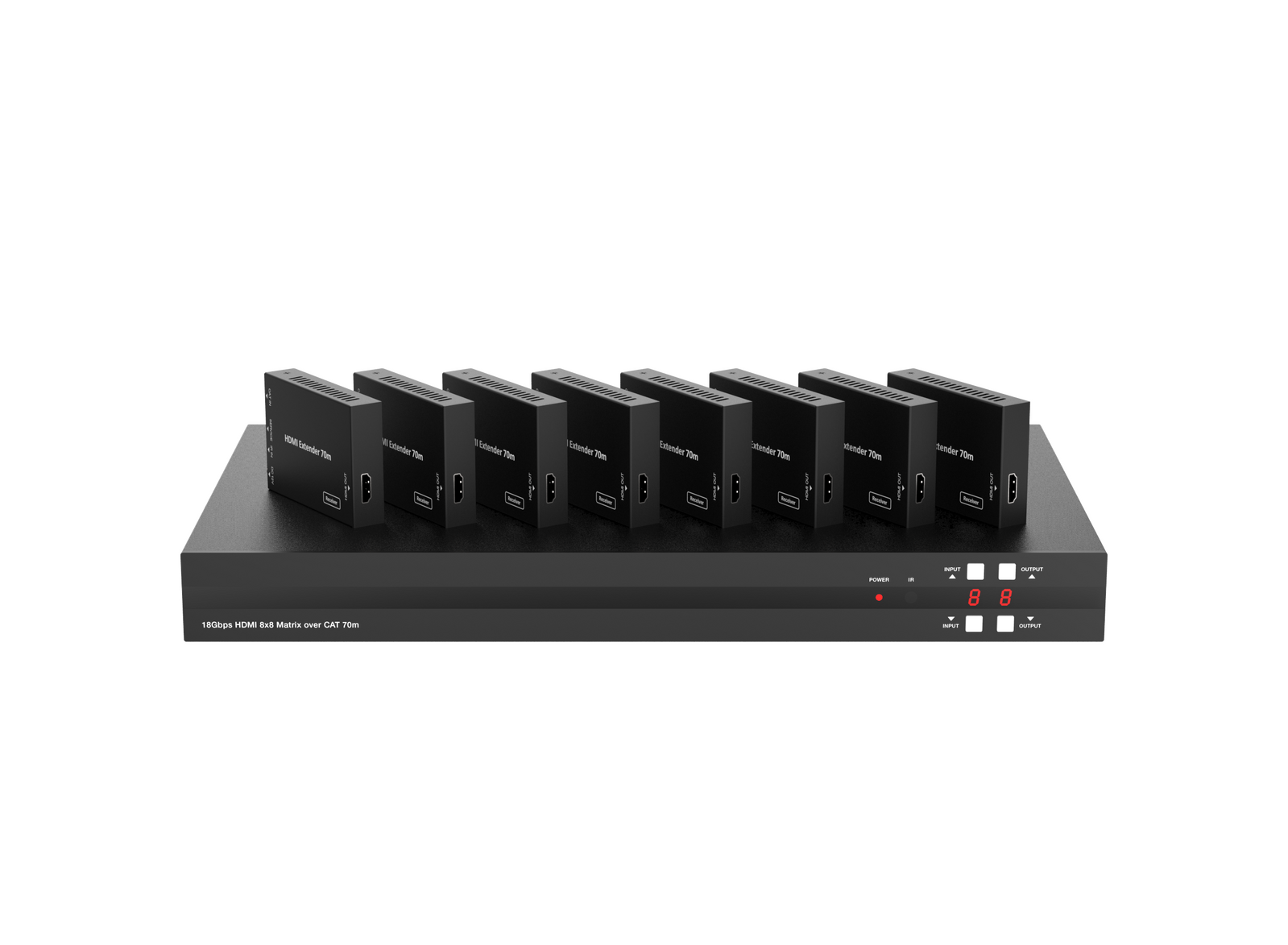

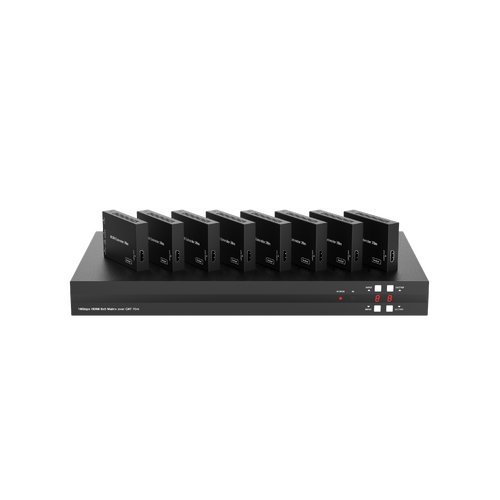

Extends 8 x HDBaseT Receivers up to 70m range

Special Order Product - May take 2 weeks for delivery

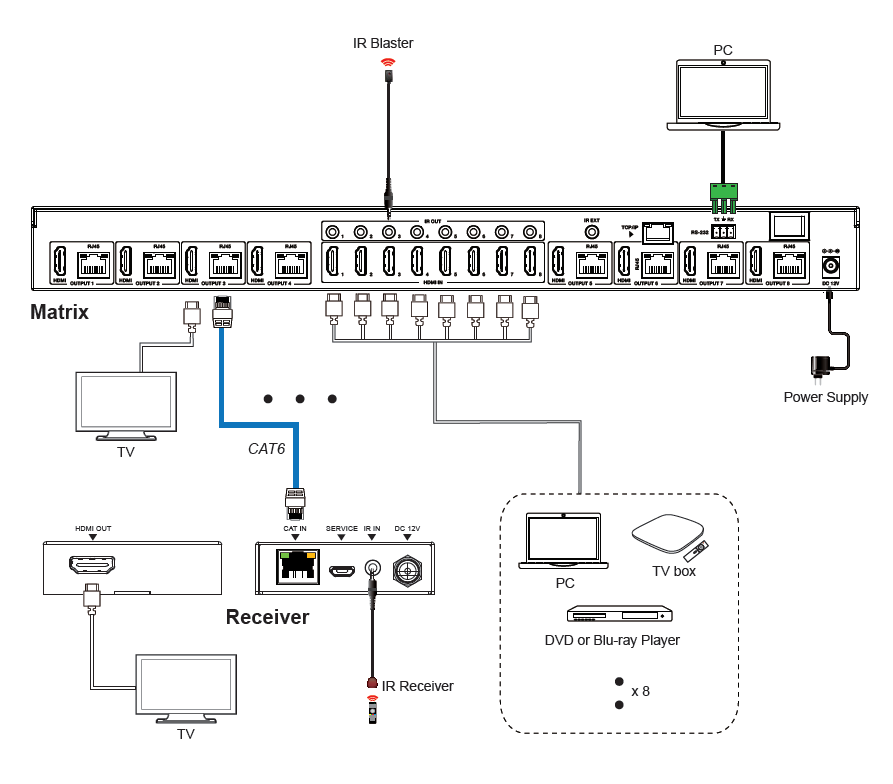

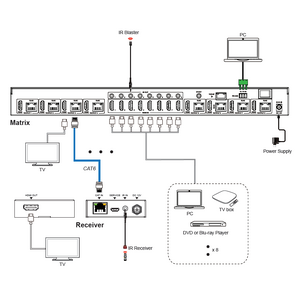

The 18Gbps 8x8 HDMI Matrix can connect 8 HDMI sources to 16 displays. It features eight HDMI outputs and each HDMI output is mirrored to provide a CAT-Cable output which runs simultaneously. It supports the transmission of video (resolution is up to 1080p Full HD and 4Kx2K@60Hz 4:4:4) and supports HD digital audio formats such as LPCM 7.1CH, DolbyTrueHD, Dolby Digital Plus and DTS-HD Master Audio. The Matrix can be used for multi-room connectivity, and the HDMI signals can be extended up to 230ft/70m via connecting a CAT Receiver to each of the CAT-Cable outputs. The Matrix supports one-way IR matrix function. Besides, it can be controlled via front panel buttons, IR remote, RS-232, LAN, and Web GUI.

Features:

HDMI 2.0b and HDCP 2.2/1.x compliant

Video resolution up to 4K2K@60Hz (YUV 4:4:4) on all HDMI & CAT ports

8 HDMI inputs,8 HDMI & CAT mirrored outputs

HDMI ports support 18Gbps lossless compressed video bandwidth

HDR, HDR10, HDR10+, Dolby Vision, HLG are supported

CAT output can extend the transmission distance up to 230ft/70m via a single CAT6 cable

HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD and DTS-HD Master Audio)

Advanced EDID management and CEC control are supported

12V POC on all CAT ports

Support one-way IR matrix function

Control via front panel buttons, IR remote, RS-232, LAN and Web GUI

Technical
HDMI Compliance	HDMI 2.0
HDCP Compliance	HDCP 2.2/1.x
Video Bandwidth	18Gbps
Video Resolution	Up to 4K2K@50/60Hz (4:4:4)
Color Space	RGB 4:4:4, YCbCr 4:4:4/4:2:2/4:2:0
Color Depth	8-bit, 10-bit, 12-bit (1080p@60Hz) 8-bit (4K2K@60Hz YUV4:4:4) 8-bit,10-bit,12-bit (4K2K@60Hz YCbCr 4:2:2/4:2:0）
HDMI Audio Formats	LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus (DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
HDR	HDR10, HDR10+, Dolby Vision, HLG
Transmission Distance	230ft/70m (via a single CAT6 cable)
ESD Protection	Human body model: ±8kV (air-gap discharge) & ±4kV (contact discharge)
Connections

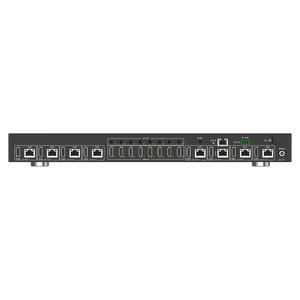

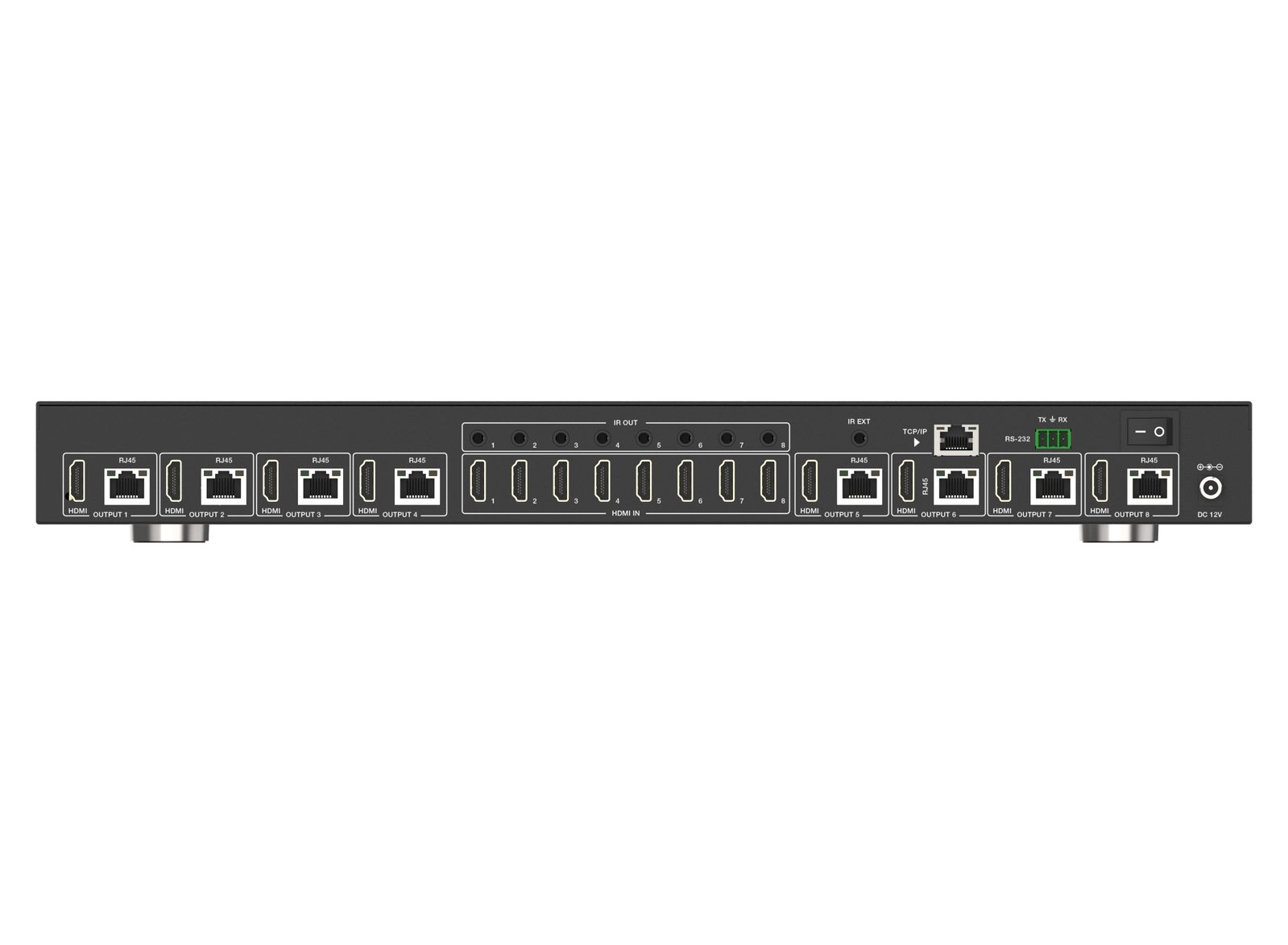

Matrix	Inputs: 8x HDMI Type A [19-pin female] Outputs: 8x HDMI Type A [19-pin female] 8x CAT port [RJ45] Controls: 1x TCP/IP [RJ45] 1x RS-232 [3-pin phoenix connector] 8x IR OUT [3.5mm Stereo Mini-jack] 1x IR EXT [3.5mm Stereo Mini-jack
CAT Receiver	Inputs: 1x IR IN [3.5mm Stereo Mini-jack] 1x CAT port [RJ45] Output: 1x HDMI Type A [19-pin female] Control: 1x SERVICE [Micro USB, Update port]
Mechanical
Housing	Metal Enclosure
Color	Black
Dimensions	Matrix: 440mm (W) x 250mm (D) x 44.5mm (H) Receiver: 61mm (W) x 88mm (D) x 18mm (H）
Weight	Matrix: 3.2kg, Receiver: 155g
Power Supply	Input: AC 100 - 240V 50/60Hz Output: DC 12V/5A (US/EU standards, CE/FCC/UL certified)
Power Consumption (Max)	50W (Max)
Operation Temperature	32°F - 104°F / 0°C - 40°C
Storage temperature	-4°F - 140°F / -20°C - 60°C
Relative Humidity	20- 90% RH (no condensation)

Resolution / Cable length	4K60 -Feet /Meters	4K30-Feet / Meters	1080P60 - Feet / Meters
HDMI IN / OUT	16ft / 5M	32ft / 10M	50ft / 15M
The use of “Premium High Speed HDMI” cable is highly recommended.
